The Sudbury Basin, located in Ontario, Canada, is one of the largest and oldest impact craters on Earth. This geologic wonder has fascinated scientists for over a century, with early theories proposing a volcanic origin. However, extensive research in recent decades has confirmed that the Sudbury Basin was formed by a massive meteorite impact approximately 1.85 billion years ago during the Paleoproterozoic era. The impact shaped the region’s unique geology and mineral deposits, making Sudbury one of the most important mining districts in the world.
Impact Event
The Sudbury Basin was created by the impact of a large bolide, likely 10-15 km in diameter, which collided with Earth at an estimated speed of 12-30 km/s. The energy released by the impact was equivalent to millions of nuclear bombs, vaporizing the meteorite and a large volume of the Earth’s crust. The impact created a massive crater, originally around 200-250 km in diameter and 15 km deep.
Debris from the impact, known as ejecta, was scattered over an area of 1.6 million square kilometers, with rock fragments found as far as 800 km away in Minnesota. It is likely that the ejecta was distributed globally, but has since eroded away. The impact also generated powerful shock waves that deformed and shattered the surrounding bedrock, creating distinctive geological features such as shatter cones and shocked quartz that are now used as diagnostic indicators of impact structures.
Crater Modification
Over the 1.85 billion years since its formation, the Sudbury crater has undergone significant modification due to erosion, sedimentary infilling, and tectonic deformation. These processes have reduced the crater’s size and altered its shape, resulting in the smaller, elliptical basin seen today, measuring approximately 60 km long, 30 km wide, and 15 km deep.

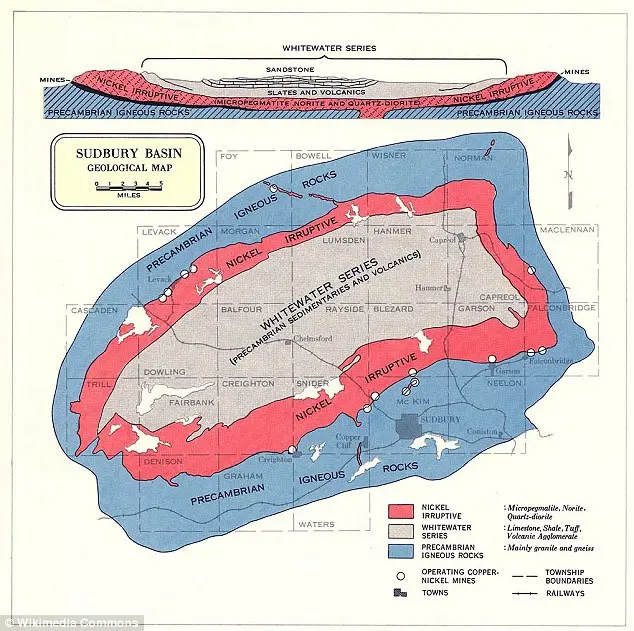

The crater fill consists of a complex sequence of breccias and melt rocks known as the Onaping Formation, overlain by post-impact sediments of the Onwatin and Chelmsford Formations. The basin is surrounded by a collar of igneous rocks called the Sudbury Igneous Complex (SIC), which formed from the crystallization of the impact melt sheet. The SIC is divided into the North, East, and South Ranges.
Tectonic Setting
The Sudbury Basin straddles the boundary between three major geologic provinces of the Canadian Shield: the Archean Superior Province to the northwest, the Paleoproterozoic Southern Province to the south, and the Mesoproterozoic Grenville Province to the southeast. This complex tectonic setting has influenced the basin’s evolution and deformation.
The impact occurred during a period of active rifting and sedimentation, as evidenced by the thick sequence of Huronian Supergroup rocks that underlie and surround the basin. These rocks record a history of continental breakup, glaciation, and sea level changes in the 300 million years preceding the impact.
Post-impact orogenic events, particularly the Penokean (1.9-1.8 Ga) and Grenville (1.1-1.0 Ga) orogenies, have further deformed and metamorphosed the basin, contributing to its current geometry and the uplift of deeper crustal rocks.
Mineral Deposits
The Sudbury Basin is one of the world’s most productive mining districts, renowned for its rich nickel, copper, and platinum group element (PGE) deposits. The impact played a crucial role in the formation and concentration of these mineral resources.
The heat and shock of the impact melted and mixed the pre-existing rocks, including metal-bearing mafic and ultramafic units, and sulfur-rich sediments. This allowed the metals to combine with sulfur and form immiscible sulfide melts that settled to the base of the melt sheet, scavenging additional metals along the way. The resulting magmatic sulfide deposits are primarily found in embayments and troughs along the base of the SIC, as well as in radial and concentric offset dikes that extend into the footwall rocks.
Mining in the Sudbury area began in the 1880s, initially for copper and later for nickel as demand grew in the early 20th century. The basin has since produced over 1.7 billion tonnes of ore, making it one of the largest suppliers of nickel and a significant source of copper, cobalt, platinum, palladium, gold, and silver.
Scientific Significance
The Sudbury Basin has been a key location for advancing our understanding of impact cratering processes and their role in shaping planetary surfaces. The basin’s well-preserved impact structures, diverse lithologies, and extensive exposure have made it a natural laboratory for studying impact phenomena.
Research at Sudbury has contributed to the recognition of diagnostic impact features such as shatter cones, planar deformation features in quartz, and high-pressure mineral polymorphs. The basin has also provided insights into the behavior of large melt sheets, the generation of impact-induced hydrothermal systems, and the formation of magmatic sulfide deposits.
Furthermore, the Sudbury Basin serves as a terrestrial analog for impact structures on other planets and moons. The study of its morphology, stratigraphy, and post-impact modification can inform our interpretations of remote sensing data from extraterrestrial impact sites.
Conclusion
The Sudbury Basin is a testament to the profound influence of impact cratering on Earth’s geologic evolution. The massive impact that formed the basin 1.85 billion years ago not only shaped the region’s landscape and geology but also created one of the world’s most important mineral districts. The basin’s unique features and rich scientific heritage continue to attract researchers from various disciplines, shedding light on the fundamental processes that shape our planet and the solar system.
As our understanding of impact cratering grows, the Sudbury Basin remains a vital piece of the puzzle, offering valuable insights into Earth’s dynamic past and the role of catastrophic events in its development. The ongoing exploration and study of this geologic wonder will undoubtedly continue to advance our knowledge of planetary science and the complex interplay between impact, tectonics, and mineralization.
