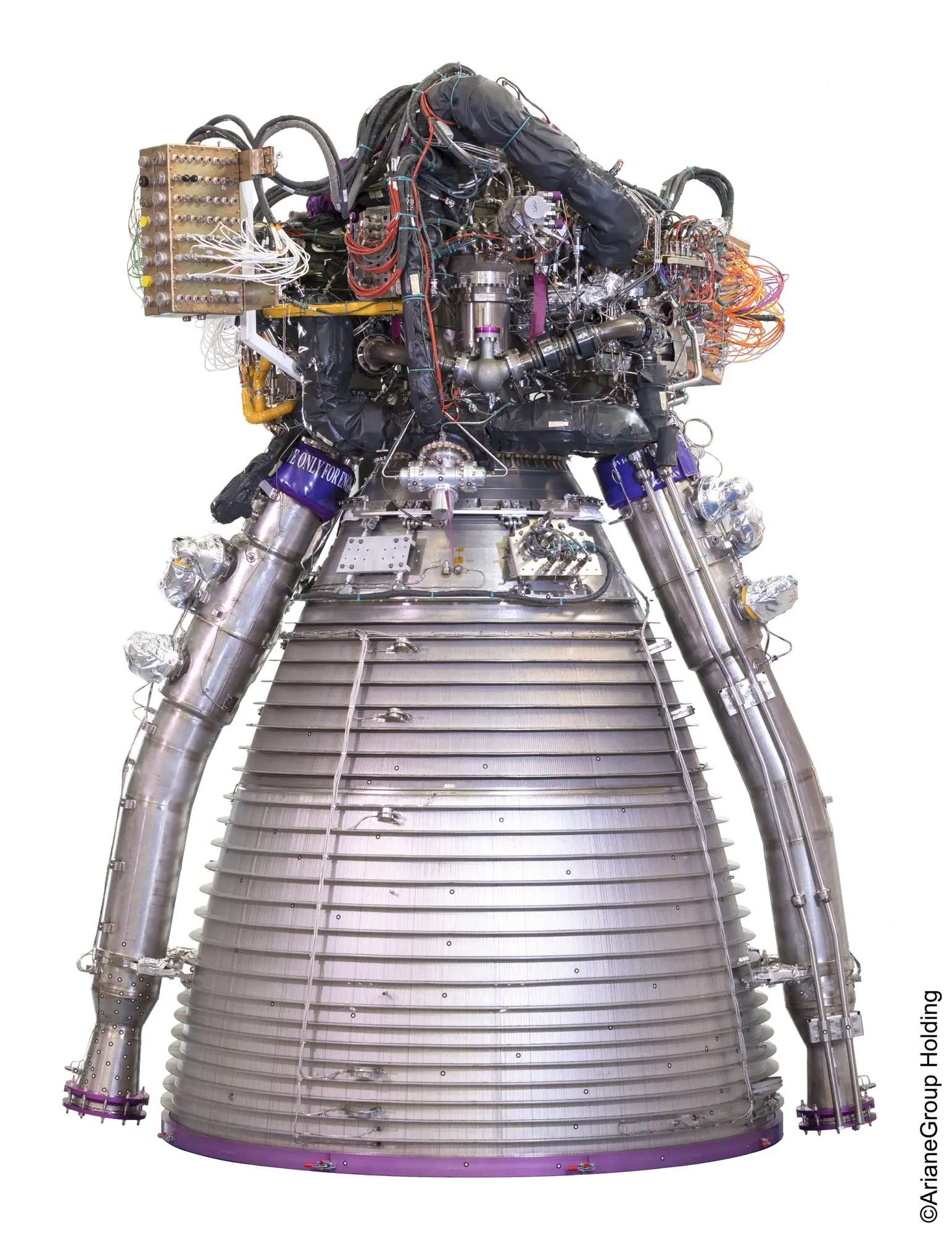

The Vulcain 2.1 rocket engine represents the latest advancement in European rocket propulsion technology. Developed by ArianeGroup, this powerful engine is set to serve as the core stage engine for Europe’s next-generation Ariane 6 launch vehicle. Building upon the legacy of its predecessor, the Vulcain 2, the Vulcain 2.1 incorporates numerous design enhancements and innovative production techniques to deliver increased performance, reliability, and cost-effectiveness.
Engine Overview
The Vulcain 2.1 is a liquid-fueled rocket engine that utilizes cryogenic propellants, namely liquid oxygen (LOX) and liquid hydrogen (LH2). It operates on a gas generator cycle, where a small portion of the propellants is burned in a separate combustion chamber to drive the turbopumps that feed the main combustion chamber. This proven cycle allows for a simpler and more reliable engine design compared to more complex cycles like staged combustion.
The engine delivers a vacuum thrust of 1,371 kN (308,000 lbf), representing a significant increase over the Vulcain 2’s 1,359 kN (305,000 lbf). This increased thrust, combined with the Ariane 6’s solid rocket boosters, will enable the launcher to lift heavier payloads to a variety of orbits. The Vulcain 2.1 achieves a specific impulse of 434 seconds in vacuum, a key measure of engine efficiency.
Design Enhancements
One of the most notable design changes in the Vulcain 2.1 is the introduction of a 3D-printed gas generator. Additive manufacturing techniques allow for the creation of complex geometries and optimized flow paths, resulting in improved performance and reduced manufacturing costs. The engine’s nozzle has also been redesigned and simplified, contributing to overall cost savings.
The combustion chamber of the Vulcain 2.1 has been adapted to accommodate the increased propellant flow rates. It features an optimized injector design that promotes efficient mixing and combustion of the propellants. The chamber is ignited using a new ground ignition system, eliminating the need for pyrotechnic devices inside the engine. This simplification further enhances reliability and reduces costs.
Another significant change is the increased expansion ratio of the nozzle extension. By expanding the exhaust gases to a higher degree, the engine can extract more thrust from the same amount of propellant. The nozzle extension also incorporates a new cooling system that uses the engine’s hydrogen fuel to maintain acceptable temperatures.
Testing and Qualification
The development of the Vulcain 2.1 has been supported by an extensive testing campaign to validate its performance and reliability. The engine has undergone numerous static fire tests at test facilities in Europe, accumulating thousands of seconds of operation.
In January 2018, the first successful test firing of the Vulcain 2.1 engine took place at the German Aerospace Center (DLR) test facility in Lampoldshausen, Germany. This milestone marked the beginning of a series of tests aimed at qualifying the engine for flight.
Subsequent tests focused on evaluating the engine’s behavior under various operating conditions, including different thrust levels, mixture ratios, and propellant inlet conditions. These tests provided valuable data for fine-tuning the engine’s design and verifying its performance envelope.
In July 2019, the Vulcain 2.1 completed its qualification testing with a final static firing test lasting nearly 11 minutes. This test demonstrated the engine’s ability to operate for the full duration required during an Ariane 6 mission. With the successful completion of qualification testing, the Vulcain 2.1 is now ready to power the Ariane 6 rocket.
Integration with Ariane 6
The Vulcain 2.1 engine is an integral part of the Ariane 6 launch vehicle, serving as its core stage engine. The Ariane 6 is designed to be a versatile and cost-competitive launcher, capable of delivering a wide range of payloads to various orbits.
The Vulcain 2.1 is mounted at the base of the Ariane 6’s core stage, which houses the cryogenic propellant tanks. During launch, the engine will ignite on the pad and operate for approximately 8 minutes, propelling the rocket to an altitude of around 200 km.
The Ariane 6 will be available in two variants: the Ariane 62 with two solid rocket boosters, and the Ariane 64 with four solid rocket boosters. The Vulcain 2.1 engine will power both variants, providing the necessary thrust to lift the rocket off the pad and through the initial stages of flight.
| Specification | Ariane 62 | Ariane 64 |
|---|---|---|
| Height | 63 m (207 ft) | |
| Diameter | 5.4 m (18 ft) | |
| Liftoff Mass | ~530 tonnes (1,170,000 lb) | ~860 tonnes (1,900,000 lb) |
| Solid Rocket Boosters | 2 x P120C | 4 x P120C |
| First Stage Engine | 1 x Vulcain 2.1 | |
| Second Stage Engine | 1 x Vinci (re-ignitable) | |
| Payload to LEO | 10,350 kg (22,820 lb) | 21,650 kg (47,730 lb) |
| Payload to GTO | 4,500 kg (9,900 lb) | 11,500 kg (25,400 lb) |
| Payload to GEO | – | 5,000 kg (11,000 lb) |
| Payload to SSO | 7,200 kg (15,900 lb) | 15,500 kg (34,200 lb) |
| Payload Fairing Diameter | 5.4 m (18 ft) | |
| Payload Fairing Length | 14 m (46 ft) | 20 m (66 ft) |
| Launch Cost (approx.) | €75 million ($80M) | €115 million ($125M) |
Future Developments
While the Vulcain 2.1 represents a significant step forward in European rocket propulsion, ArianeGroup is already looking ahead to future developments. One potential avenue for improvement is the use of advanced materials, such as ceramic matrix composites, which could further reduce engine weight and improve performance.
Another area of interest is the development of reusable engine technologies. As the space industry moves towards more sustainable and cost-effective launch solutions, the ability to recover and reuse engines could provide significant economic benefits. ArianeGroup is exploring concepts for reusable engines that could be used on future versions of the Ariane rocket family.
Summary
The Vulcain 2.1 rocket engine is a testament to Europe’s commitment to advancing its space capabilities. By incorporating cutting-edge technologies and design optimizations, ArianeGroup has created an engine that delivers increased performance, reliability, and cost-effectiveness. As the Ariane 6 prepares for its maiden flight, the Vulcain 2.1 will play a crucial role in ensuring the rocket’s success and maintaining Europe’s position as a leading player in the global launch market.
With its impressive thrust, efficient propellant utilization, and robust design, the Vulcain 2.1 is poised to power the Ariane 6 rocket into a new era of European spaceflight. As the engine continues to prove its capabilities, it will undoubtedly contribute to the success of numerous missions, delivering satellites and payloads to orbit with unparalleled precision and reliability.
