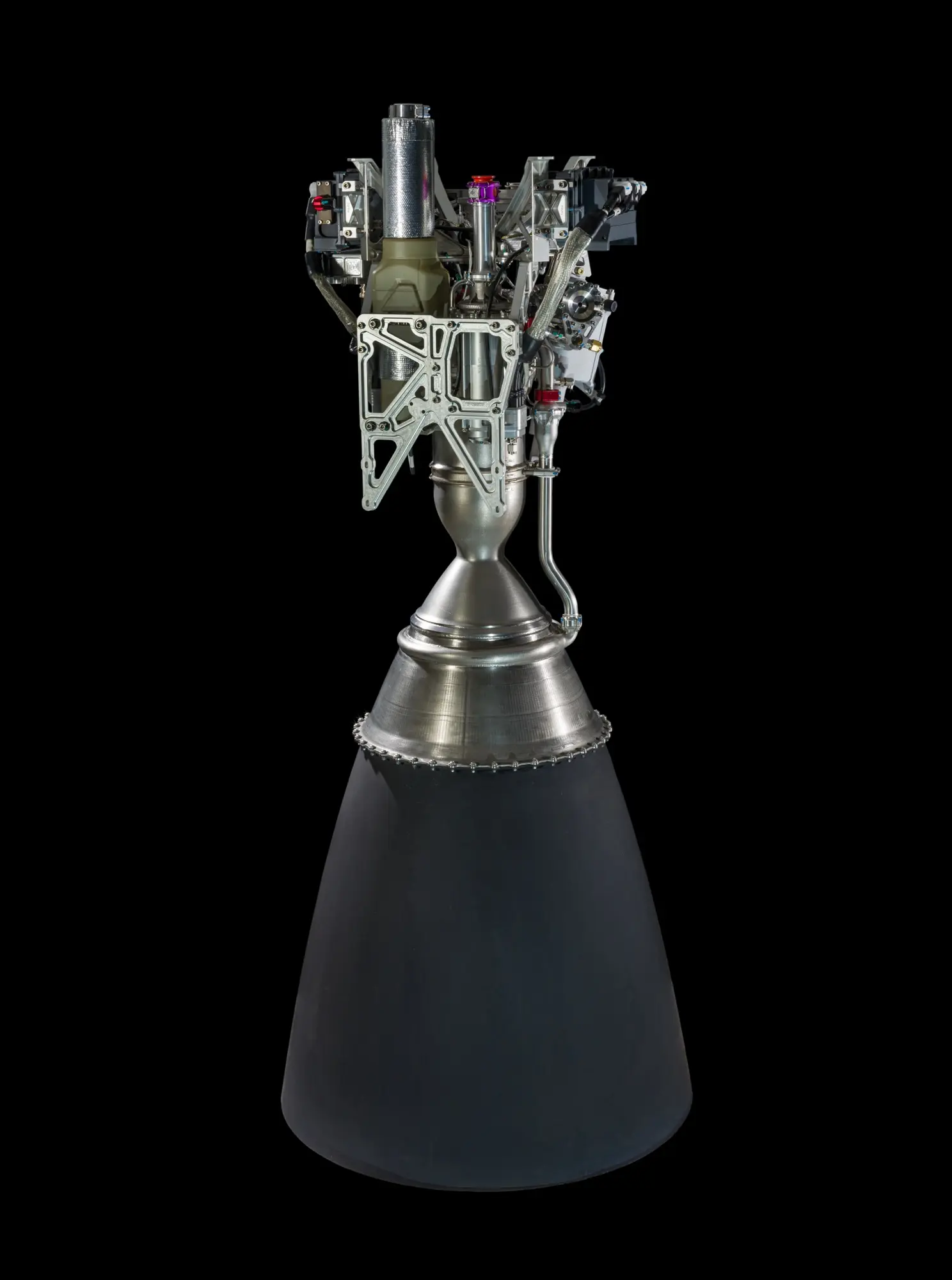

Rocket Lab, a pioneering aerospace company based in California, has made significant strides in the realm of rocket propulsion with its groundbreaking Rutherford engine. This innovative engine, designed and manufactured by Rocket Lab, powers the company’s Electron launch vehicle, which specializes in delivering small satellites to orbit. The Rutherford engine represents a major leap forward in rocket engine technology, thanks to its unique design and manufacturing process.
A New Approach to Rocket Propulsion
The Rutherford engine stands out from traditional rocket engines in several key aspects. First and foremost, it employs an electric-pump-fed cycle, making it the first flight-ready engine of its kind. This innovative propulsion system uses liquid oxygen (LOX) and refined kerosene (RP-1) as propellants, which are pumped into the combustion chamber by electric motors powered by lithium polymer batteries.
The electric-pump-fed cycle offers several advantages over conventional rocket engine designs. By using electric pumps instead of gas-driven turbopumps, the Rutherford engine achieves higher pumping efficiency and improved fuel economy. This not only reduces the overall cost of launches but also enables a more compact and lightweight engine design.
How the Electric-Pump-Fed Cycle Works
In a traditional rocket engine, the propellants are pumped into the combustion chamber using a gas generator cycle or a staged combustion cycle. These cycles rely on a portion of the propellants being burned to drive the turbopumps, which then feed the main combustion chamber. While effective, these systems add complexity and weight to the engine.
In contrast, the Rutherford engine’s electric-pump-fed cycle uses high-performance brushless DC electric motors to drive the propellant pumps. These motors are powered by lithium polymer batteries, which provide a reliable and consistent power source. The electric pumps compress the LOX and RP-1 propellants to high pressures before injecting them into the combustion chamber.
This electric-pump-fed design eliminates the need for a separate gas generator or preburner, reducing the engine’s complexity and weight. It also allows for more precise control over the propellant flow rates, enabling better throttling capabilities and improved engine performance.
Benefits of the Electric-Pump-Fed Cycle
The electric-pump-fed cycle employed by the Rutherford engine offers several key benefits:
- Increased efficiency: By using electric pumps, the Rutherford engine achieves higher pumping efficiency compared to traditional gas-driven turbopumps. This translates to improved fuel economy and reduced propellant consumption.
- Simplified design: The electric-pump-fed cycle eliminates the need for complex gas generator or staged combustion systems, resulting in a simpler and more compact engine design. This simplification reduces the number of components, making the engine more reliable and easier to manufacture.
- Precise control: The electric pumps allow for precise control over the propellant flow rates, enabling better throttling capabilities and improved engine performance. This level of control is particularly valuable for the Electron rocket, which requires precise orbital insertions for its small satellite payloads.
- Cost reduction: The simplified design and improved efficiency of the electric-pump-fed cycle contribute to lower manufacturing and operational costs. This cost reduction is crucial for Rocket Lab’s goal of providing affordable and frequent launch services for small satellites.
Harnessing the Power of 3D Printing
Another groundbreaking aspect of the Rutherford engine is its extensive use of 3D printing technology in the manufacturing process. Rocket Lab has embraced additive manufacturing, specifically Direct Metal Laser Solidification (DMLS), to fabricate critical engine components such as the combustion chamber, injectors, pumps, and main propellant valves.
By leveraging 3D printing, Rocket Lab can produce these complex components more efficiently and cost-effectively compared to traditional manufacturing methods. The 3D printing process allows for intricate designs and optimized geometries that would be challenging or impossible to achieve with conventional techniques. This not only reduces the manufacturing time but also enables rapid iteration and design improvements.
The DMLS Process
Direct Metal Laser Solidification (DMLS) is an additive manufacturing technique that uses a high-powered laser to selectively melt and fuse metal powder particles layer by layer. This process allows for the creation of complex, high-performance metal parts with intricate geometries.
In the case of the Rutherford engine, Rocket Lab uses DMLS to print critical components such as the combustion chamber, injectors, pumps, and main propellant valves. The process begins with a 3D CAD model of the component, which is then sliced into thin layers. The DMLS machine spreads a thin layer of metal powder onto a build platform and uses a laser to selectively melt and fuse the particles according to the CAD model. This process is repeated layer by layer until the entire component is built.
Advantages of 3D Printing for Rocket Engines
The use of 3D printing technology in the manufacturing of the Rutherford engine offers several advantages:
- Design freedom: 3D printing allows for the creation of complex geometries and optimized designs that would be difficult or impossible to achieve with traditional manufacturing methods. This design freedom enables Rocket Lab to create components with improved performance and efficiency.
- Rapid prototyping: 3D printing enables rapid prototyping and iteration of engine components. Design changes can be quickly implemented and tested, accelerating the development process and allowing for continuous improvement of the Rutherford engine.
- Reduced lead times: By using 3D printing, Rocket Lab can significantly reduce the lead times associated with traditional manufacturing methods. Components can be printed on-demand, eliminating the need for extensive tooling and long production cycles.
- Cost reduction: 3D printing reduces the cost of manufacturing complex engine components. By minimizing material waste and eliminating the need for expensive tooling, Rocket Lab can produce components more cost-effectively, contributing to the overall affordability of the Electron launch vehicle.
Dual-Purpose Design
The Rutherford engine is designed to serve as both a first-stage and second-stage engine on the Electron launch vehicle. This dual-purpose approach simplifies logistics and enhances economies of scale, as the same engine can be used in multiple stages of the rocket. The first stage of the Electron rocket features a cluster of nine Rutherford engines, while the second stage utilizes a single vacuum-optimized version with an extended nozzle.
The sea-level variant of the Rutherford engine generates a thrust of 24.9 kN (5,600 lbf) and boasts a specific impulse of 311 seconds. The vacuum-optimized version, on the other hand, produces a slightly higher thrust of 25.8 kN (5,800 lbf) and achieves a specific impulse of 343 seconds. These performance characteristics enable the Electron rocket to efficiently deliver payloads to their desired orbits.
Advantages of a Dual-Purpose Design
The dual-purpose design of the Rutherford engine offers several benefits:
- Simplified logistics: By using the same engine design for both the first and second stages, Rocket Lab can streamline its supply chain and reduce the complexity of engine production and integration.
- Cost reduction: The dual-purpose design allows for economies of scale in engine manufacturing. By producing a larger number of identical engines, Rocket Lab can reduce the per-unit cost of the Rutherford engine.
- Improved reliability: Using the same engine design in multiple stages of the rocket increases the overall reliability of the launch vehicle. The Rutherford engine undergoes rigorous testing and qualification, ensuring its performance and durability in both sea-level and vacuum conditions.
Regenerative Cooling System
To ensure the engine’s durability and performance, the Rutherford engine incorporates a regenerative cooling system. Before injection into the combustion chamber, a portion of the cold RP-1 propellant is circulated through cooling channels embedded in the combustion chamber and nozzle structure. This process effectively transfers heat away from these critical components, preventing overheating and extending the engine’s lifespan.
The regenerative cooling system not only enhances the engine’s reliability but also contributes to its overall efficiency. By preheating the propellant before injection, the cooling system helps to optimize combustion and improve the engine’s performance.
How Regenerative Cooling Works
In a regenerative cooling system, a portion of the cold propellant is diverted from the main propellant feed and circulated through cooling channels or passages surrounding the combustion chamber and nozzle. As the propellant flows through these channels, it absorbs heat from the engine’s hot components, effectively cooling them down.
After passing through the cooling channels, the preheated propellant is then injected into the combustion chamber, where it mixes with the oxidizer and ignites. The preheating of the propellant by the regenerative cooling system improves the combustion efficiency and helps to maintain the structural integrity of the engine components.
Benefits of Regenerative Cooling
The regenerative cooling system employed in the Rutherford engine offers several key benefits:
- Increased engine life: By effectively cooling the combustion chamber and nozzle, the regenerative cooling system prevents overheating and thermal damage to these critical components. This extends the engine’s lifespan and improves its overall durability.
- Improved combustion efficiency: The preheating of the propellant by the cooling system enhances the combustion process. The higher propellant temperature leads to better atomization and mixing with the oxidizer, resulting in more efficient combustion and improved engine performance.
- Reduced engine weight: Regenerative cooling allows for the use of thinner walls in the combustion chamber and nozzle, as the cooling system helps to maintain their structural integrity. This reduction in wall thickness translates to a lighter engine overall, which is crucial for the performance of the Electron launch vehicle.
Powering the Future of Small Satellite Launches
Since its inception, the Rutherford engine has played a crucial role in Rocket Lab’s mission to revolutionize the small satellite launch industry. The engine’s first test-firing took place in 2013, marking a significant milestone in its development. After rigorous testing and qualification, the Rutherford engine made its maiden flight on May 25, 2017, successfully powering the Electron rocket’s inaugural launch.
As of April 2024, the Rutherford engine has propelled an impressive 47 Electron flights, with a total of 369 engines flown. This track record demonstrates the engine’s reliability and performance capabilities. Rocket Lab’s ability to manufacture and launch these engines at a high cadence has been instrumental in establishing the company as a leading provider of dedicated small satellite launch services.
Future Developments and Enhancements
Rocket Lab is continuously working on improving and enhancing the Rutherford engine to push the boundaries of small satellite launch capabilities. The company’s ongoing research and development efforts focus on increasing the engine’s performance, reliability, and manufacturing efficiency.
One area of focus is the optimization of the 3D printing process for engine components. By refining the DMLS techniques and exploring new materials, Rocket Lab aims to further reduce manufacturing costs and improve the engine’s performance.
Another potential avenue for future development is the adaptation of the Rutherford engine for reusability. While the current Electron rocket is designed for expendable launches, Rocket Lab is actively developing a reusable version of the vehicle. The Rutherford engine’s robust design and advanced cooling system make it a strong candidate for reuse, which could further reduce launch costs and increase launch frequency.
Summary
The Rutherford engine represents a significant advancement in rocket propulsion technology. By combining innovative design elements such as the electric-pump-fed cycle and extensive use of 3D printing, Rocket Lab has created an engine that is efficient, cost-effective, and well-suited for the growing small satellite market.
As Rocket Lab continues to push the boundaries of rocket engine technology, the Rutherford engine will undoubtedly play a vital role in enabling more frequent and affordable access to space. With its proven track record and ongoing development, the Rutherford engine is poised to shape the future of small satellite launches and contribute to the advancement of space exploration.
