The exploration of the Moon, while a testament to human ingenuity and perseverance, is not without its inherent risks.The unforgiving lunar environment, coupled with the complexities of space travel, necessitates the development of robust safety measures. The Lunar Escape System (LESS), a product of meticulous research and engineering conducted in 1970,emerged as a vital safeguard for astronauts venturing onto the lunar surface. This article delves into the intricacies of the LESS, exploring its operational parameters, guidance and control mechanisms, design considerations, and its potential for multi-mission applications. Additionally, we will examine the LESS’s historical context and its relevance to the contemporary Artemis program.
The Imperative for LESS: Addressing the LM’s Vulnerability
The primary vehicle for transporting astronauts to and from the lunar surface during the Apollo era was the Lunar Module (LM). While the LM was equipped with safety features like in-flight separation capabilities and provisions for rescue in case of a partial ascent failure, a critical vulnerability remained. The LM’s ascent stage relied solely on built-in redundancies and reserves to ensure a successful return to lunar orbit. A complete failure of the ascent stage would leave the astronauts stranded on the Moon. The LESS was conceived to address this dire scenario, providing a lifeline for astronauts in the face of a catastrophic LM failure.
LESS: The Embodiment of Simplicity
The guiding principle behind the LESS was simplicity. It was envisioned as a relatively uncomplicated system capable of carrying two astronauts from the lunar surface to a safe orbit, where they could rendezvous with the Command and Service Module (CSM). The emphasis on simplicity was rooted in the understanding that reliability in emergency systems is often better achieved through streamlined design than through intricate redundancies. The LESS was not intended to be a sophisticated spacecraft; its purpose was to provide a basic, dependable means of escape.
Operational Parameters: Charting the Ascent
The LESS ascent trajectory was a subject of rigorous analysis, with the aim of identifying the most efficient and secure path to lunar orbit. Several trajectory profiles were explored, each with its own set of trade-offs. The ‘optimum’ trajectory,derived using the calculus of variations, offered the most fuel-efficient ascent but demanded a complex guidance and control system. In contrast, the ‘two-step’ profile, characterized by its simplicity, entailed a significant increase in fuel consumption. A middle ground was found in the ‘bent two-step’ profile, which combined near-optimum fuel efficiency with a relatively straightforward guidance scheme.
The selection of the trajectory profile was influenced by a multitude of factors, including the LESS vehicle’s thrust-to-weight ratio, the desired orbit altitude, and the potential for errors in thrust vector control. The analysis revealed that a thrust-to-weight ratio of approximately 0.3 was ideal for minimizing fuel consumption for higher orbits. Additionally, it was discovered that employing an integrating accelerometer to control engine cutoff and pitch maneuvers could substantially mitigate trajectory errors.
A critical aspect of the LESS ascent was ensuring visibility for the astronauts. The lunar environment, with its stark contrasts and varying lighting conditions, posed challenges for visual navigation. The study examined the impact of sun angles on visibility, considering mission durations of 3, 7, and 14 days. It was found that depending on the time of the lunar day and the mission duration, the sun could be positioned anywhere from behind the astronauts to directly in front of them, potentially causing glare and obscuring visual references. These findings highlighted the need for a robust guidance system that could function effectively under diverse lighting conditions.
Guidance and Control: The LESS’s Navigational Arsenal
The guidance and control system of the LESS was another domain where simplicity was paramount. The LESS was not designed to be an autonomous spacecraft; it leveraged the capabilities of the CSM and Mission Control for crucial guidance data. The CSM’s sextant and VHF ranging system could be used for takeoff site determination and rendezvous guidance, while Mission Control could compute the LESS ascent trajectory and transmit the information to the astronauts via the LM’s communication link.
The choice of attitude reference system was a pivotal decision in the LESS design. While visual references like the lunar horizon or landmarks offered simplicity, they were susceptible to errors due to the Moon’s rugged topography and fluctuating lighting conditions. Ultimately, a three-axis, gyro-driven attitude indicator was favored for its reliability and precision.
The LESS control system was designed for manual operation, further underscoring the principle of simplicity. Two primary control modes were evaluated: kinesthetic control, where the pilot shifts their body to control the vehicle’s attitude, and hardwire control, where a hand controller directly manipulates the engine’s thrust vector. While both modes were deemed feasible, hardwire control was favored for its potential for superior handling qualities and smoother integration with the guidance system.
Design Challenges: Engineering the LESS
The design of the LESS was a delicate balancing act between compactness, light weight, and functionality. The vehicle had to be small enough to be stowed within the LM’s descent stage and light enough to be readily deployed by a single astronaut. Various configurations were explored, with differences in seating arrangements, instrumentation, and structural design. The choice of propulsion system significantly impacted the vehicle’s configuration. While a single, large engine offered simplicity, a cluster of smaller engines provided redundancy and enhanced controllability.
The LESS also had to be designed for effortless deployment and servicing on the lunar surface. This involved devising procedures for unloading the vehicle from the LM, fueling its tanks, and aligning its guidance system. The goal was to minimize the time and effort required for these tasks, ensuring that the LESS could be swiftly prepared for launch in an emergency.
The Human Element: Piloting the LESS
The human pilot was an integral part of the LESS system. The vehicle’s manual control modes demanded a high degree of skill and concentration from the astronaut. To ensure pilot safety and mission success, extensive simulations were conducted to evaluate the handling qualities of different control modes and vehicle configurations. These simulations helped identify potential challenges, such as the cross-coupling between visual displays and control axes, and informed design decisions to optimize the pilot’s workload and performance.
Beyond a Lifeline: The LESS’s Multi-Mission Potential

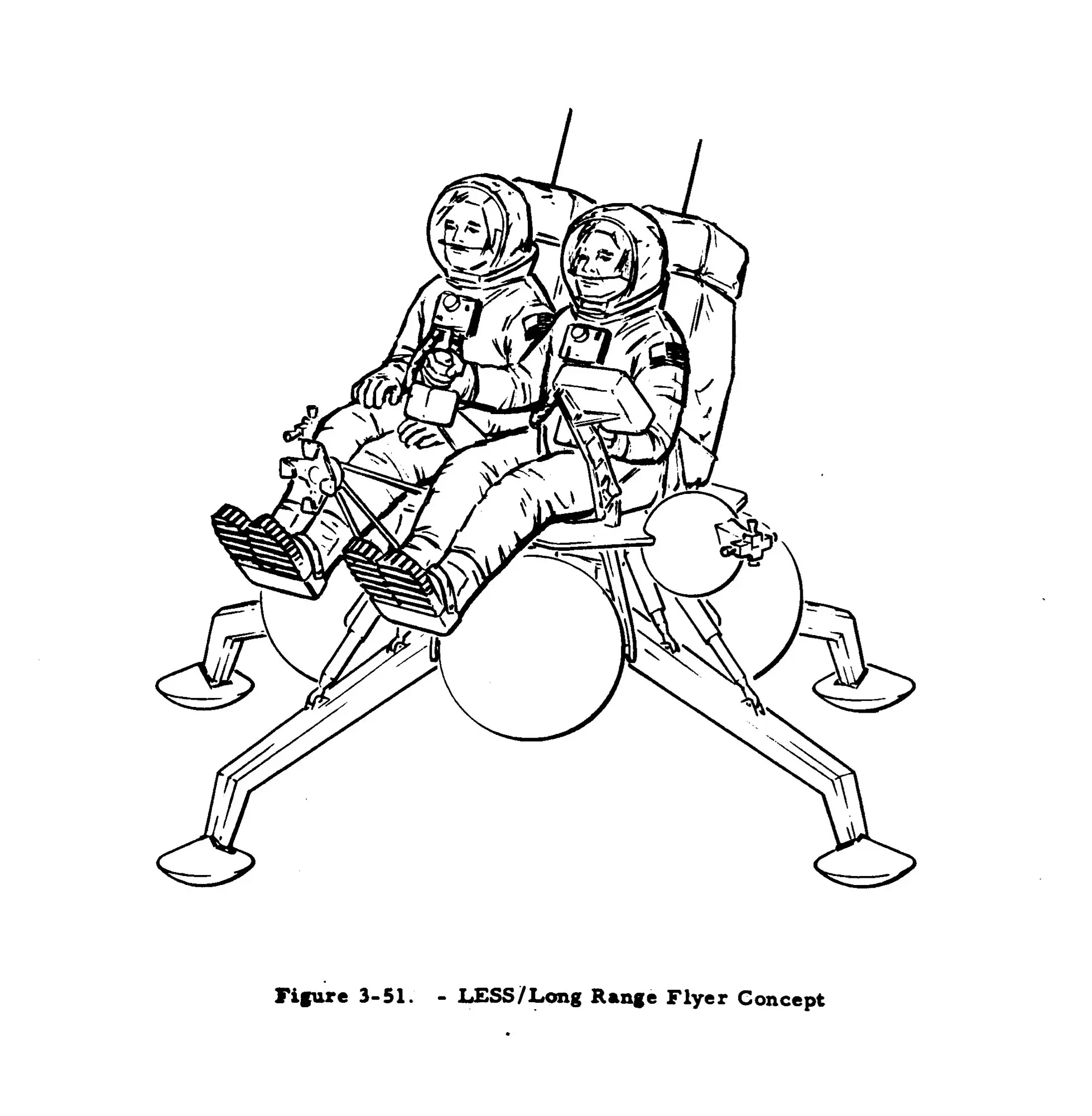

While the LESS’s primary role was emergency escape, its potential applications extended far beyond this function. The vehicle could be adapted for long-range lunar surface exploration, offering a significantly greater range than the Lunar Roving Vehicle used in the Apollo missions. With modifications like the addition of landing gear, a throttlable engine, and enhanced communication systems, the LESS could evolve into a versatile instrument for lunar exploration and scientific research. The study also explored the feasibility of using the LESS as a lunar “flying platform,” capable of short-range flights for reconnaissance and sample collection.
LESS in the Context of Artemis
While the LESS was conceived in the context of the Apollo program, its underlying principles and design considerations remain relevant to the contemporary Artemis program, which aims to establish a sustainable human presence on the Moon. The Artemis program envisions a more extensive and complex lunar infrastructure, with multiple landers, habitats,and rovers. In such a scenario, the need for a reliable emergency escape system is even more critical.
The LESS studies from 1970 provide valuable insights into the challenges and potential solutions for designing such a system. The emphasis on simplicity, reliability, and manual controllability resonates with the Artemis program’s focus on developing robust and adaptable systems for lunar operations. While the specific technologies and design solutions may have evolved since 1970, the fundamental principles behind the LESS remain applicable.
The LESS studies also highlight the importance of considering multi-mission capabilities when designing lunar vehicles.The potential for adapting the LESS for long-range exploration and other tasks underscores the value of versatility in lunar surface systems. As the Artemis program progresses, it is likely that we will see a new generation of lunar vehicles that embody the spirit of the LESS, combining simplicity, reliability, and adaptability to support a sustainable human presence on the Moon.
Summary
The LESS feasibility study, conducted in 1970, demonstrated the viability of a simple, reliable escape system for lunar missions. The emphasis on simplicity in design, guidance, and control resulted in a concept that could be rapidly developed and deployed, offering a critical safety net for astronauts exploring the lunar surface. Moreover, the LESS’s potential for adaptation to other mission roles underscored its value as a multi-purpose tool for lunar exploration. The LESS stands as a testament to NASA’s commitment to astronaut safety and the innovative spirit that drives space exploration. As we embark on the Artemis program, the lessons learned from the LESS will undoubtedly inform the development of new safety measures and versatile vehicles to support our return to the Moon.
