Vulcan Centaur: The Next Generation of American Heavy Lift

Introduction

The Vulcan Centaur is the new flagship launch vehicle for United Launch Alliance (ULA), a joint venture between Boeing and Lockheed Martin. More than just a new rocket, it represents a strategic evolution, engineered to navigate a confluence of geopolitical mandates, shifting market dynamics, and technological advancements. Its fundamental purpose is to replace ULA’s venerable Atlas V and Delta IV rocket families with a single, more affordable, and more capable system. This consolidation ensures the United States maintains reliable access to space for its most critical national security, civil, and commercial missions. The Vulcan program is defined by a pragmatic blend of flight-proven technologies and key innovations, creating a platform designed for the demands of the modern space era.

A Strategic Successor

The development of the Vulcan rocket was not undertaken in a vacuum. It was a direct and necessary response to a series of powerful forces that reshaped the global launch industry. The vehicle’s existence is owed to the need to consolidate an aging and costly fleet, the political imperative to secure sovereign launch capabilities, and the commercial necessity of responding to a newly competitive marketplace.

Consolidating a Legacy Fleet

For decades, ULA’s Atlas V and Delta IV rockets were the workhorses of America’s space launch enterprise. They built an unparalleled record of reliability, becoming the trusted vehicles for launching the nation’s most valuable and sensitive military and intelligence satellites. However, maintaining two entirely separate rocket families, each with its own distinct manufacturing infrastructure, launch facilities, and operational teams, was inherently inefficient and expensive.

The Vulcan Centaur was conceived to resolve this issue by merging the capabilities of both the Atlas V and the powerful Delta IV Heavy into one flexible, modular launch system. The design allows it to cover the entire spectrum of missions previously handled by the two separate fleets, from medium-lift commercial satellites to the heaviest national security payloads. This consolidation is most evident in its heavy-lift configuration. A single-core Vulcan equipped with six solid rocket boosters (SRBs) can lift nearly as much mass to orbit as the far more complex and costly three-core Delta IV Heavy, achieving comparable performance with a much more streamlined and affordable architecture.

Ensuring Sovereign Capability

A primary driver for Vulcan’s creation was geopolitical. The Atlas V, for all its success, depended on the RD-180 main engine, which was manufactured in Russia. This reliance on a foreign propulsion system for launching critical national security assets became a point of significant political concern, particularly after Russia’s annexation of Crimea in 2014. The U.S. Congress moved to end this dependency, passing legislation that mandated a transition away from the Russian engine for military launches.

This congressional action made the development of a new, wholly American-powered rocket a national security priority. Vulcan is the direct fulfillment of that mandate. By selecting the BE-4 engine, designed and built in the United States by Blue Origin, ULA eliminated the nation’s reliance on foreign propulsion for its primary government launch vehicle, ensuring a sovereign capability for assured access to space.

Responding to a New Market

While ULA once held a virtual monopoly on U.S. government launches, the 2010s saw the emergence of SpaceX and its reusable Falcon 9 rocket, which dramatically altered the competitive landscape. SpaceX introduced a level of price competition that ULA’s existing fleet could not match. As a result, commercial and civil launch customers began to migrate to these lower-cost options, leaving ULA increasingly reliant on its core government contracts.

Vulcan was engineered to make ULA more competitive on price. The rocket was designed to have significantly lower recurring costs than either the Atlas V or Delta IV, enabling ULA to offer a better value proposition in both the commercial and government sectors. This reactive posture shaped the rocket’s entire design philosophy. Rather than pursuing a revolutionary “clean-sheet” architecture, ULA took a pragmatic approach, evolving its existing systems. The program blended the proven manufacturing processes of the Delta IV and the high-performance concept of the Centaur upper stage with the new, necessary technology of the BE-4 engines. This strategy created a “bridge” vehicle—one that preserves ULA’s core strengths of reliability and precision while directly addressing its most pressing weaknesses of high cost and foreign engine dependence.

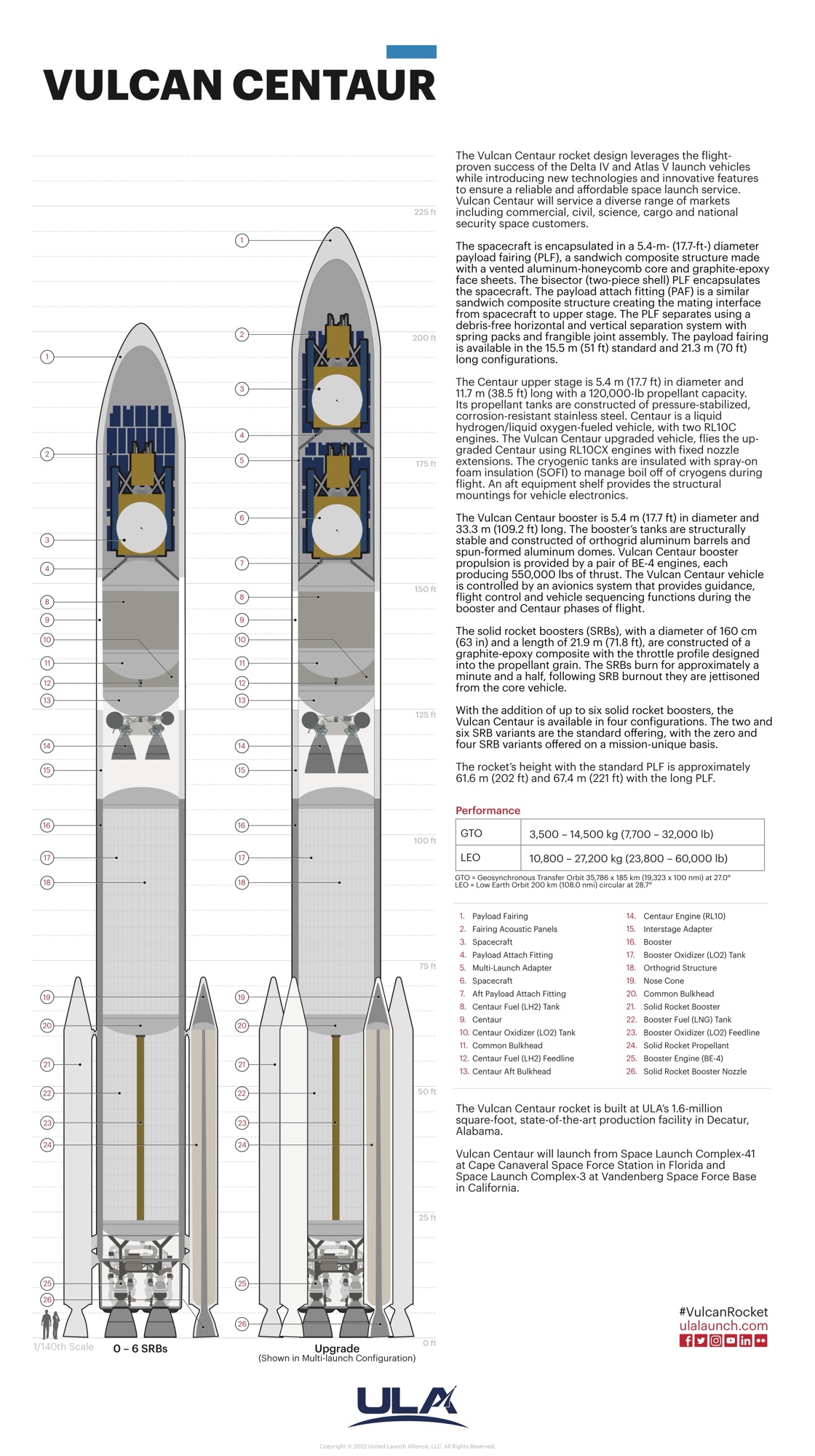

Anatomy of the Vulcan Centaur

The Vulcan Centaur is a two-stage-to-orbit launch vehicle that combines heritage components with next-generation technology. Its design is modular, allowing its performance to be scaled to meet a wide range of mission requirements.

First Stage: Methane-Fueled Power

The rocket’s first stage, or booster, is a 5.4-meter diameter structure manufactured at ULA’s facility in Decatur, Alabama. While it draws on the manufacturing heritage of the Delta IV’s Common Booster Core, it is an entirely new design built to accommodate a different propellant and engine system.

Powering the booster are two BE-4 main engines, developed by Blue Origin. Each of these powerful engines can produce 550,000 pounds of thrust at sea level. A key technological shift for this stage is its fuel: liquefied natural gas (LNG), which is primarily methane, combined with liquid oxygen (LOX) as the oxidizer. This choice offers several advantages. Methane is denser and has a higher boiling point than the liquid hydrogen used in the Delta IV, which allows for smaller, lighter, and less complex fuel tanks. It also burns much cleaner than the rocket-grade kerosene used in the Atlas V, reducing the buildup of hydrocarbon deposits in the engines. This cleaner combustion is a significant benefit for ULA’s future plans to reuse the engines.

Centaur V Upper Stage: High-Energy Precision

The second stage of the rocket is the Centaur V, a powerful and highly efficient upper stage that gives Vulcan its distinctive capabilities. It is an upgraded and enlarged version of the legendary Centaur stage that flew for decades on the Atlas V, expanded to match the rocket’s 5.4-meter diameter.

The Centaur V is powered by two RL10 engines, built by Aerojet Rocketdyne. This engine family has a long and storied history of success and is renowned for its high efficiency, precision, and ability to be restarted multiple times in space. The engines use super-chilled liquid hydrogen and liquid oxygen, a propellant combination that provides a great deal of energy for its mass. This high-performance upper stage is Vulcan’s key advantage, enabling it to deliver heavy payloads with extreme accuracy into complex, high-energy orbits, such as a direct insertion into geosynchronous orbit. This capability is a critical requirement for many of the most demanding national security missions and sets Vulcan apart from its competitors.

Solid Rocket Boosters: Scalable Performance

To provide additional thrust at liftoff, the Vulcan can be augmented with solid rocket boosters (SRBs). The system is highly modular, allowing for configurations with zero, two, four, or six SRBs to be attached to the first stage. This flexibility enables ULA to precisely tailor the rocket’s performance—and cost—to the specific mass and orbital requirements of each payload.

The boosters are GEM 63XLs, manufactured by Northrop Grumman. These are lengthened and more powerful versions of the GEM 63 boosters used on the Atlas V. Each GEM 63XL is built as a single, monolithic piece of solid propellant cast in a graphite-epoxy casing, a design that enhances reliability. Each booster provides over 460,000 pounds of additional thrust, dramatically increasing the rocket’s overall lift capacity for heavy payloads.

Payload Accommodations

The spacecraft is protected during its ascent through the atmosphere inside a 5.4-meter diameter payload fairing (PLF). The fairing is available in two lengths: a standard version at 15.5 meters and a long version at 21.3 meters, providing a voluminous payload bay capable of accommodating the largest satellites. This volume is substantially larger than that offered by some competitors. The fairing is a lightweight but strong composite structure that splits into two halves and separates cleanly once the rocket reaches space.

Vulcan is also designed to launch multiple satellites on a single mission. This “multi-manifest” capability is a cost-effective way to provide access to space for smaller customers. Using hardware like an Evolved Expendable Launch Vehicle Secondary Payload Adapter (ESPA) Ring or an Aft Bulkhead Carrier (ABC), smaller satellites can ride along with a larger primary payload, sharing the cost of the launch.

The Production and Launch Ecosystem

The creation of each Vulcan rocket and its journey to the launch pad relies on a complex network of specialized manufacturers and state-of-the-art facilities. ULA’s approach to building its rocket differs significantly from that of some competitors, reflecting a long-standing industry model based on strategic partnerships.

A Partnership-Driven Approach

Unlike a vertically integrated company like SpaceX, which designs and manufactures the vast majority of its rocket components in-house, ULA operates on a model that leverages a deep supply chain of established aerospace leaders. This approach allows ULA to tap into decades of specialized expertise for each of the rocket’s critical systems. The key partners in the Vulcan program include:

• Blue Origin: Provides the two powerful BE-4 main engines for the first stage.
• Aerojet Rocketdyne: Supplies the highly reliable and efficient RL10 engines for the Centaur V upper stage.
• Northrop Grumman: Manufactures the GEM 63XL solid rocket boosters that provide scalable thrust augmentation.
• Beyond Gravity: Produces the large composite payload fairing, as well as the interstage adapter and payload attachment hardware.
• L3Harris Technologies: Provides the rocket’s advanced avionics systems.

This partnership model is a double-edged sword. It allows ULA to utilize best-in-class technology without bearing the full research, development, and capital cost of creating every component from scratch. However, it also creates a web of interdependencies that can introduce schedule risks. The multi-year delays in the development and delivery of the BE-4 engines from Blue Origin were a clear example of this vulnerability, directly pushing back Vulcan’s planned debut. This dynamic means that ULA’s ability to scale up its launch rate is a complex logistical dance, requiring the synchronized ramp-up of production lines at multiple independent companies across the country.

Manufacturing and Assembly

The core components of the Vulcan rocket—the booster stage and the Centaur V upper stage—are constructed at ULA’s massive 1.6-million-square-foot production facility in Decatur, Alabama. To prepare for Vulcan, ULA made substantial investments to modernize this factory. These upgrades included the installation of robotic assembly lines for tank fabrication, new universal welding systems, and advanced, automated tooling specifically designed to handle the larger 5.4-meter diameter of the new rocket’s components.

Once the stages are manufactured and tested, they are loaded onto ULA’s custom transport ship, the R/S RocketShip, for the journey to the launch site.

Launch Operations

Vulcan is designed to launch from both coasts of the United States to serve a full range of orbital inclinations. Its primary launch site is Space Launch Complex-41 (SLC-41) at Cape Canaveral Space Force Station in Florida. In the future, it will also fly from Space Launch Complex-3 (SLC-3) at Vandenberg Space Force Base in California.

SLC-41 underwent significant upgrades to accommodate the new rocket, transforming it into a dual-use pad capable of supporting both the final flights of the Atlas V and the new Vulcan vehicle. These modifications included the installation of extensive ground systems to store and handle liquefied natural gas, increased storage capacity for liquid oxygen, and an upgraded acoustic water suppression system to protect the rocket and pad from the intense energy of a Vulcan launch. ULA employs a “clean pad” operational concept, where the rocket is fully assembled on its mobile launch platform inside the Vertical Integration Facility (VIF). The entire stack is then rolled out to the launch pad shortly before fueling and liftoff, a process that enhances safety and minimizes the time the vehicle spends exposed to the elements.

Path to Operational Service

The journey of the Vulcan Centaur from a development program to a fully certified, operational rocket was a multi-year effort marked by key milestones, technical challenges, and ultimately, mission success.

The Inaugural Flight: Certification-1

Vulcan’s highly anticipated maiden flight, designated Certification-1 (Cert-1), took place in the pre-dawn hours of January 8, 2024, lifting off from Cape Canaveral. The mission carried two payloads. The primary passenger was the Peregrine lunar lander, built by Astrobotic for NASA‘s Commercial Lunar Payload Services (CLPS) initiative. A secondary payload from the company Celestis, containing memorial capsules, was destined for deep space.

The launch was a resounding success. The Vulcan rocket performed its mission flawlessly, with all systems operating as expected. It precisely placed the Peregrine lander on its intended trajectory toward the Moon. While the Peregrine spacecraft later experienced a critical malfunction of its own propulsion system that prevented a lunar landing attempt, the performance of the Vulcan launch vehicle was perfect, demonstrating the rocket’s capability and reliability on its very first flight.

Final Certification: Certification-2

The second and final flight required for U.S. Space Force certification, Cert-2, launched on October 4, 2024. This mission was originally slated to carry the first flight of Sierra Space’s Dream Chaser spaceplane. However, with the spaceplane’s development running behind schedule, ULA made the decision to fly with an inert mass simulator to avoid further delaying the crucial certification process.

During the ascent, an anomaly occurred when the nozzle extension of one of the two solid rocket boosters unexpectedly detached. Despite the resulting asymmetrical thrust, the rocket’s advanced flight control system immediately compensated for the imbalance, keeping the vehicle on a stable trajectory and allowing it to successfully achieve its target orbit and complete all primary mission objectives. A thorough investigation followed, which quickly identified the root cause as a manufacturing defect within the booster’s nozzle. Corrective actions were developed and subsequently verified through a full-scale static fire test of a new motor, resolving the issue.

Achieving National Security Certification

The National Security Space Launch (NSSL) program is the cornerstone of Vulcan’s business case, providing launch services for the nation’s most critical defense and intelligence satellites. Gaining certification to fly these missions is an exceptionally long and rigorous process that involves years of deep collaboration with the Space Force.

For Vulcan, the path to certification involved meeting 52 distinct criteria, which encompassed over 180 discrete tasks, numerous subsystem design reviews, and 114 separate hardware and software audits, all culminating in the two successful certification flights. After a comprehensive five-month review of all flight data and the corrective actions taken after the Cert-2 anomaly, the U.S. Space Force officially certified the Vulcan Centaur for NSSL missions in March 2025. This was a landmark achievement for ULA, formally establishing Vulcan as the second certified launch provider for NSSL missions alongside SpaceX and clearing the rocket to begin working through its manifest of high-priority government payloads.

Market Position and Mission Profile

The Vulcan Centaur is engineered to be a versatile and powerful launch vehicle, capable of serving a wide array of customers while carving out a specific area of competitive strength in the challenging modern launch market.

A Diverse Manifest

Vulcan is designed as a single system to meet the needs of all of ULA’s market segments. Its manifest reflects this diversity:

• National Security: This remains Vulcan’s primary and most critical market. As part of the NSSL Phase 2 procurement, ULA was awarded the majority share of missions, securing a deep backlog of launches for the U.S. Space Force and the National Reconnaissance Office.
• Commercial: ULA secured a cornerstone commercial contract with Amazon for 38 Vulcan launches to deploy its Project Kuiper satellite internet constellation. This large block-buy provides a stable production and launch cadence for the program.
• Civil and Scientific: Vulcan is contracted to fly resupply missions to the International Space Station for NASA, carrying Sierra Space’s Dream Chaser cargo vehicle. Its inaugural flight also supported NASA‘s scientific goals by launching the first Commercial Lunar Payload Services mission.

Competitive Landscape

Vulcan enters a market where its chief competitor is SpaceX’s Falcon family of rockets, primarily the Falcon 9 and Falcon Heavy.

• Payload to Low Earth Orbit (LEO): In its most powerful configuration with six SRBs, Vulcan can lift up to 27,200 kg to LEO. This lift capacity is greater than that of a reusable Falcon 9 (approximately 18,000 kg) and is competitive with an expendable Falcon 9 (approximately 25,000 kg).
• Payload to High-Energy Orbits: This is the area where Vulcan’s design gives it a distinct advantage. Thanks to the high efficiency of its liquid hydrogen-fueled Centaur V upper stage, Vulcan can deliver up to 15,300 kg to a standard Geostationary Transfer Orbit (GTO). This performance significantly exceeds that of a reusable Falcon 9 (around 7,000 kg) and is on par with the much larger Falcon Heavy when its side boosters are recovered.
• Cost: The baseline cost for a Vulcan launch is estimated to be in the range of $110-$120 million. While this is higher than the advertised commercial price of a Falcon 9 (around $67 million), it is priced to be competitive for government NSSL missions, which involve more stringent requirements and mission assurance services that increase the total cost for any provider.

The rocket’s modularity is a key feature of its market strategy. The ability to add solid rocket boosters allows its performance to be scaled precisely to mission needs, ensuring customers do not pay for performance they do not require. This flexibility is illustrated in its payload capabilities across different configurations.

High-Energy Orbit Specialization

The performance data reveals a deliberate strategy of niche superiority. ULA recognized that competing with SpaceX purely on the cost of launching mass to Low Earth Orbit would be difficult. Instead, they engineered Vulcan to excel in the mission profiles most valued by their primary customer: the U.S. Department of Defense. These missions frequently require the placement of extremely heavy, expensive, and irreplaceable national security satellites into precise, high-energy orbits. Vulcan’s ability to perform a direct injection to geosynchronous orbit, for example, is a unique capability that saves the satellite from having to use its own limited onboard propellant for the final, complex orbital maneuvers. This extends the operational life of the satellite and enhances its mission effectiveness. This specialization makes Vulcan less a direct competitor to the “generalist” Falcon 9 and more of a “specialist” vehicle, providing a high-precision capability that commands a premium and is vital for national security. The NSSL Phase 2 contract award, which granted ULA the majority of missions, serves as a powerful validation of this focused strategy.

The Future of the Vulcan Program

With Vulcan now certified and operational, ULA is focused on scaling its launch cadence and evolving the platform to enhance its capabilities and competitiveness. The company has a clear roadmap for the rocket’s future, centered on reusability and expanded in-space services.

The SMART Reusability Plan

ULA is pursuing a unique approach to reusability known as SMART, which stands for Sensible, Modular, Autonomous Return Technology. This plan differs significantly from the full booster recovery practiced by competitors. Instead of attempting to land the entire first stage, SMART focuses on recovering only the most valuable part: the engine section, which contains the two BE-4 engines and associated avionics. This module accounts for approximately two-thirds of the total cost of the booster stage.

The recovery process is designed to have minimal impact on the rocket’s primary mission performance. After the first stage completes its burn and separates from the Centaur, the engine module will detach from the empty propellant tanks. This module will then re-enter the atmosphere, protected from the intense heat of reentry by a Hypersonic Inflatable Aerodynamic Decelerator (HIAD). The HIAD is a large, lightweight, inflatable heat shield that ULA has been developing in partnership with NASA. Once slowed by the HIAD, the module will deploy parachutes to decelerate further for a soft splashdown in the ocean, where it can be retrieved by a ship for refurbishment and reuse. While early concepts explored a more complex mid-air helicopter capture, the water landing approach is seen as more repeatable. The implementation of SMART reuse is planned for a few years into Vulcan’s operational life, with a target around 2026, and is reportedly tied to a specific customer contract.

Evolving the Upper Stage

ULA has ambitious plans that extend beyond launch, aiming to transform the Centaur V upper stage into a long-duration, maneuverable in-space platform. The concept involves loading the stage with more propellant than is needed for its primary payload delivery. After deploying its main satellite, the Centaur V could remain operational in orbit for weeks or even months.

With its high-thrust, restartable RL10 engines, this enhanced upper stage could perform a variety of secondary missions. It could act as a space tug, moving other satellites to different orbits, or serve as a responsive asset for national security, capable of rapidly maneuvering to inspect or defend high-value U.S. spacecraft. This strategy reframes the upper stage from a disposable piece of hardware into a reusable in-space asset, creating a new service and value proposition that is distinct from simple launch services.

Readiness for Crewed Missions

From its inception, the Vulcan Centaur was designed with the necessary structural margins and system redundancies to be capable of achieving human-rating certification. A significant portion of its systems and hardware is common with the human-rated Atlas V rocket, which is certified to launch Boeing’s Starliner crew capsule. This design foresight positions Vulcan to potentially launch crewed missions in the future, providing a path for later flights of the Boeing Starliner or the crewed version of Sierra Space’s Dream Chaser spaceplane.

Summary

The Vulcan Centaur represents United Launch Alliance’s strategic answer to a fundamentally transformed space launch industry. It successfully consolidates the proud heritage and proven reliability of the Atlas and Delta rocket programs into a single, more flexible, and more affordable platform. The development of Vulcan was driven by necessity, allowing ULA to end its reliance on Russian engines and secure its vital role as a primary launch provider for U.S. national security.

The rocket’s design is a calculated balance of innovation and pragmatism. It is a powerful, heavy-lift vehicle whose modularity allows it to be tailored to a wide range of missions. Its key competitive advantage lies in its high-performance Centaur V upper stage, which makes it a specialist optimized for the complex, high-energy orbits demanded by its core government customers. With its NSSL certification complete and a deep manifest of missions, Vulcan is now the workhorse for America’s most critical payloads. Looking forward, ULA’s plans for SMART engine reusability and the evolution of the Centaur into a long-duration, in-space asset show that Vulcan is intended to be not just a replacement for past rockets, but an adaptable and evolving platform for the future of space operations.
