A Guide to Synthetic Aperture Radar Satellite Operators

Introduction

A new generation of satellites is changing how we see the world. Unaffected by clouds, darkness, or weather, they provide a persistent, reliable stream of information about the Earth’s surface. This technology, called Synthetic Aperture Radar (SAR), is no longer confined to secretive government missions. A dynamic commercial market, fueled by constellations of small, agile satellites, is making this powerful capability more accessible than ever. From tracking illegal fishing in the open ocean to predicting landslides and monitoring the effects of climate change, SAR satellite operators are delivering insights that were once impossible to obtain.

Understanding the Technology: How Satellites See Through Clouds and Darkness

SAR’s unique capabilities stem from a fundamentally different approach to imaging compared to the satellites most people are familiar with. While optical satellites operate like a camera in space, passively collecting reflected sunlight, SAR is an active system. It provides its own illumination, much like a camera using a flash.

Core Concept: Active Microwave Sensing

A SAR satellite transmits a pulse of microwave energy toward the Earth’s surface and then records the “echo,” or backscatter, that reflects to the sensor. This self-illumination is what allows it to operate day or night. The microwaves it uses have much longer wavelengths than visible light, enabling them to penetrate clouds, smoke, fog, and haze, which makes SAR an exceptionally reliable tool for monitoring regions that are frequently obscured. At any given moment, roughly two-thirds of the Earth is covered by clouds or in darkness, but for a SAR satellite, the view is always clear.

The “Synthetic Aperture” Innovation

To achieve high-resolution radar imagery, an antenna needs to be very large. The larger the antenna’s opening, or aperture, the better its ability to distinguish between two closely spaced objects on the ground. For a satellite in orbit, a physically large enough antenna to produce detailed images would be hundreds of meters, or even kilometers, long—far too massive to practically launch into space.

Scientists and engineers developed a clever workaround to this physical limitation: the synthetic aperture. Instead of using one giant antenna, a SAR system uses a much smaller physical antenna and takes advantage of the satellite’s motion. As the satellite flies along its orbital path, it emits thousands of radar pulses per second and collects the returning echoes from a target area. Sophisticated signal processing on the ground (or increasingly, on the satellite itself) then combines this sequence of measurements as if they were all collected simultaneously by a single, massive antenna. The length of this simulated antenna is the distance the satellite traveled during the collection period. For example, a satellite with a physical antenna just 5 meters long can synthesize an aperture of over 15 km, achieving a level of detail that would otherwise be impossible. This ability to create a very large virtual antenna is the “synthesis” that gives the technology its name.

Interpreting a SAR Image

A SAR image is not a photograph but a visual representation of radar backscatter. Unprocessed, the data can resemble television static, but once processed, it reveals a detailed map of surface characteristics. The images are typically presented in greyscale, where the brightness of each pixel corresponds to the strength of the signal that returned to the sensor.

The interpretation is based on a few key principles:

• Smooth Surfaces Appear Dark: Surfaces like calm water, paved roads, or airport runways act like mirrors to the radar signal. They reflect the microwave pulse away from the satellite, so very little energy returns to the sensor. These areas appear black or dark grey in the image.
• Rough Surfaces Appear Bright: Rougher surfaces, such as forests, agricultural fields, or choppy water, scatter the radar pulse in many directions. A significant portion of this scattered energy returns to the satellite, causing these features to appear bright.
• The “Double-Bounce” Effect: Man-made structures, like buildings in a city or ships at sea, create a particularly strong return signal. The radar pulse bounces off a vertical surface (like a building’s wall) and then off a horizontal surface (the ground), reflecting directly back to the sensor. This “double-bounce” scattering makes urban areas and metallic objects appear exceptionally bright.

Key Technical Parameters Explained

Not all SAR is the same. Operators can fine-tune several parameters to optimize data collection for specific applications, creating a trade-off between image resolution, the size of the area covered, and the type of information revealed.

• Frequency Bands: SAR systems operate at different microwave frequencies, often referred to by letter designations. The choice of band affects both resolution and penetration depth.
  • X-band (wavelength of 2.4–3.8 cm) is a popular choice for commercial operators. Its short wavelength is sensitive to surface texture and enables very high-resolution imaging, making it ideal for urban monitoring, identifying small objects, and detailed site analysis. It has limited ability to penetrate vegetation.
  • C-band (wavelength of 3.8–7.5 cm) is often called the “workhorse” of SAR. It offers a balance between resolution and moderate penetration capability, making it suitable for a wide range of applications, including global mapping, change detection, and monitoring ice and oceans.
  • L-band (wavelength of 15–30 cm) has a longer wavelength that can penetrate deeper into forest canopies and even into dry soil or sand. This makes it invaluable for forestry applications, measuring biomass, monitoring soil moisture, and even uncovering archaeological sites hidden by vegetation.
• Polarization: Polarization refers to the orientation of the transmitted and received electromagnetic waves, typically horizontal (H) or vertical (V). A SAR sensor can transmit in one polarization and receive in the same or a different one. Common combinations include HH, VV, HV, and VH. Different polarizations interact with surfaces in unique ways, revealing different features. For example, VV polarization is very sensitive to rough surface scattering (like bare ground), while cross-polarization (VH or HV) is sensitive to volume scattering from complex structures like a forest canopy.
• Imaging Modes: Operators must balance the need for high detail against the desire to cover a large area. This is managed through different imaging modes.
  • ScanSAR: This mode uses electronic beam steering to cover a very wide swath, sometimes up to 500 km. This broad coverage comes at the cost of lower spatial resolution. It’s ideal for applications like maritime surveillance or mapping sea ice, where covering vast areas quickly is the priority.
  • Stripmap: This is a standard mode where the antenna beam is fixed, imaging a continuous strip of terrain as the satellite moves forward. It offers a good balance between resolution and swath width.
  • Spotlight: To achieve the highest possible resolution, the satellite physically or electronically steers its antenna to keep the beam focused on a single, small target area for an extended period. This “spotlight” technique maximizes the length of the synthetic aperture for that specific target, resulting in incredibly detailed images but over a much smaller scene size. It’s best used for detailed analysis of a specific point of interest.

Advanced Technique: Interferometry (InSAR)

Beyond just measuring the strength of the returning echo, SAR records its phase—the precise state of the wave when it returns to the antenna. This phase information is exquisitely sensitive to the distance between the satellite and the target on the ground. By comparing the phase information from two or more SAR images of the same location taken at different times, an advanced technique called Interferometric Synthetic Aperture Radar can detect tiny changes in the ground’s surface elevation. This method is so precise it can measure ground movement down to the millimeter scale, making it a powerful tool for monitoring land subsidence, the stability of infrastructure like bridges and dams, and ground deformation caused by earthquakes or volcanic activity.

The power of SAR is as much a story of software and mathematics as it is of satellite hardware. The core concept of synthesizing an aperture is a computational technique designed to overcome a physical limitation. Advanced methods like InSAR rely entirely on processing the phase information contained within the signal. This illustrates that the SAR revolution is being driven not just by launching more satellites, but by parallel advancements in computing power and the development of sophisticated algorithms. The satellite collects the raw data, but the true value is unlocked through intelligent processing. As these algorithms, particularly those based on artificial intelligence, become more powerful, the range of applications and the depth of insight derived from SAR data will continue to expand dramatically.

The Commercial SAR Constellation Landscape

The SAR industry is undergoing a transformation, driven by the same “NewSpace” philosophy that has revolutionized the launch industry. The era of relying solely on large, expensive, government-funded satellites is over, replaced by a dynamic commercial market populated by agile companies deploying constellations of smaller, more affordable satellites.

The “NewSpace” Revolution and the Rise of Smallsats

Historically, building and launching a SAR satellite was a multi-ton, billion-dollar endeavor exclusive to national space agencies. Today, commercial operators are building satellites that are a fraction of the size and cost. This miniaturization has dramatically lowered the barrier to entry, with some NewSpace mission costs falling from over $100 million to under $15 million. This has fueled a boom in private investment and led to the creation of numerous new SAR companies.

This shift isn’t just about cost savings; it enables a fundamentally new approach to Earth observation. Instead of a single, exquisite satellite that might revisit a location every few weeks, companies can launch dozens of small satellites (smallsats) into a constellation. This architecture allows for much higher revisit rates, making it possible to monitor a single location multiple times per day. This high-cadence monitoring is a game-changer for tracking dynamic events and detecting change almost as it happens.

This technological shift has also triggered a change in the business model of SAR. The industry is moving away from simply selling static images and toward selling dynamic intelligence. The immense volume of data generated by high-revisit constellations makes the continuous stream of information more valuable than any single snapshot. Companies are increasingly building sophisticated analytics platforms, often powered by artificial intelligence and machine learning, on top of their data feeds. The competitive landscape is no longer defined solely by who has the highest resolution; it’s about who can most effectively and automatically transform a firehose of data into actionable answers for a customer. This is leading to subscription-based services that provide alerts and insights, where the underlying data source becomes secondary to the intelligence it provides.

ICEYE: Finland’s Persistent Monitoring Pioneer

A leading figure in the NewSpace SAR revolution is ICEYE, a Finnish company founded in 2015. Originating from a university project, ICEYE has grown to operate the world’s largest constellation of SAR satellites, with over 30 spacecraft launched. This large constellation is the backbone of their core value proposition: persistent monitoring. With the ability to revisit key locations multiple times per day, ICEYE provides an unprecedented level of change detection. The company offers a range of imaging modes, including a high-resolution Spot mode capable of resolving objects as small as 25 cm.

ICEYE has a strong focus on serving the government and insurance sectors. Its Natural Catastrophe Solutions provide governments and insurers with near real-time data on the extent and impact of floods, hurricanes, and wildfires, enabling faster response and more accurate damage assessment. The company is also a key player in maritime domain awareness and has secured major contracts with government entities, including NASA, NRO, and NATO.).

Capella Space: High-Resolution and Rapid Response from the U.S.

Capella Space is a U.S.-based company that holds the distinction of being the first American commercial operator to build, launch, and operate its own SAR satellite. The company has distinguished itself by focusing on two key areas: delivering very high-resolution imagery and providing a highly responsive, fully automated tasking system. Customers can use Capella’s API to task satellites and receive imagery with exceptional speed and clarity, with resolutions better than 25 cm.

This emphasis on rapid access to high-quality data has made Capella a trusted partner for the U.S. government, defense, and intelligence community. The company has established a dedicated subsidiary, Capella Federal, to cater specifically to these clients. Its applications range from detailed site monitoring and pattern-of-life analysis to damage assessment for humanitarian aid and insurance, and maritime surveillance.

Umbra: Pushing the Limits of Resolution and Data Accessibility

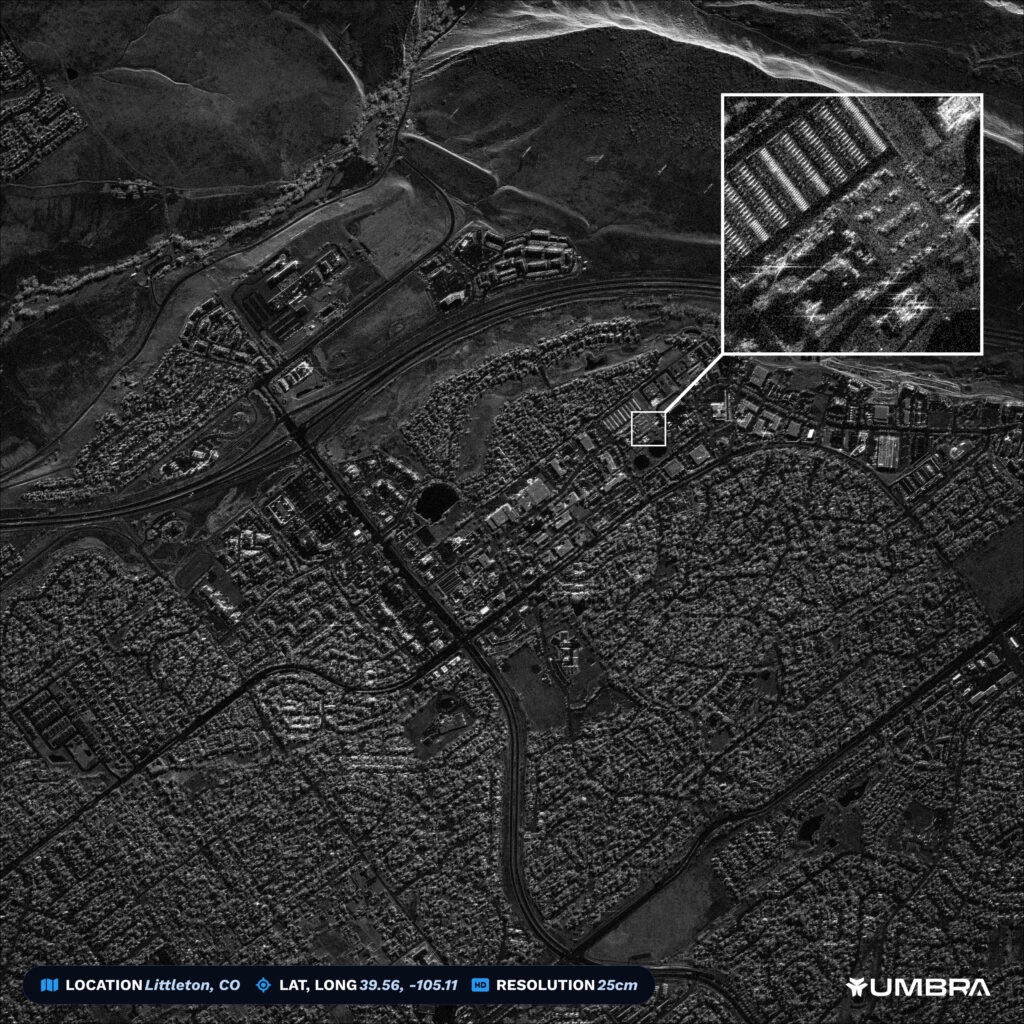

Umbra, another U.S.-based operator, has entered the market as a significant disruptor in both technology and business model. The company is vertically integrated, designing and manufacturing its own spacecraft components in-house. Its satellites are equipped with a uniquely large antenna for their size, which allows them to collect imagery at the highest resolution commercially available, down to 16 cm.

What truly sets Umbra apart is its approach to data accessibility. The company runs an Open Data Program, making vast quantities of its high-resolution imagery available for free under a Creative Commons License. This initiative is designed to spur innovation and expand the community of SAR data users. Combined with a transparent and low-cost pricing structure, this model has challenged industry conventions. Umbra also has a strategic partnership with Maxar, a major Earth intelligence firm, to integrate its best-in-class SAR data into Maxar’s broader portfolio of geospatial products.

Synspective: Japan’s Vision for a Resilient World

From Japan, Synspective is building a constellation of 30 small, 100kg-class SAR satellites with the stated mission of creating a more resilient world. The company’s strategy is heavily focused on moving beyond data provision to offer end-to-end solutions. Synspective is developing a suite of cloud-based analytics services that use machine learning to extract critical insights from SAR data.

Their primary offerings are solution-oriented, targeting specific challenges in infrastructure management, disaster response, and environmental monitoring. Key products include Land Displacement Monitoring (LDM), which uses InSAR to detect ground movement; Flood Damage Assessment (FDA) for rapid response; and Forestry Inventory Management (FIM). With a strong focus on the Asian market, Synspective is building partnerships to deliver these solutions across the region.

Established Players and Legacy Systems

While NewSpace companies are driving much of the recent innovation, established aerospace giants continue to operate powerful and reliable SAR systems that form a critical part of the ecosystem.

• Airbus and TerraSAR-X: Airbus operates the highly successful German TerraSAR-X and TanDEM satellites. These are larger, traditional spacecraft renowned for their exceptional data quality, reliability, and an extensive archive stretching back to 2007. Offering resolutions down to 25 cm, they remain a workhorse for a wide array of scientific and high-end commercial applications.
• MDA and the RADARSAT Program: Canadian company MDA is the prime contractor behind Canada’s venerable RADARSAT program. Following the legacy of RADARSAT-1 and RADARSAT-2, the current RADARSAT Constellation Mission (RCM) is operated by the Canadian government. Its three C-band satellites provide crucial data for monitoring sea ice, ships, and oil spills, particularly in Canada’s vast Arctic regions.

The Broader Ecosystem: Data Resellers and Analytics Providers

The SAR market is not limited to satellite operators. A diverse ecosystem of companies adds value by integrating, reselling, and analyzing data from various sources.

• Maxar Technologies: Primarily an operator of high-resolution optical satellites, Maxar has partnered with Umbra to resell SAR data, allowing it to offer customers a powerful multi-sensor solution that combines the strengths of both optical and radar imagery.
• L3Harris Technologies: This major U.S. defense and technology company provides clients with access to a wide range of SAR datasets. It also offers advanced analytics, such as the SatSense InSAR service for ground deformation monitoring.
• KSAT (Kongsberg Satellite Services): Based in Norway, KSAT operates the world’s largest network of satellite ground stations. This unique position allows it to offer a “virtual constellation” service, providing customers with optimized and rapidly delivered data from a broad selection of both SAR and optical satellites.

Commercial SAR Operator Snapshot

The following table provides a comparative glance at the key commercial players shaping the SAR landscape.

Government and Scientific Missions: The Public-Sector Backbone

While the commercial sector drives innovation in business models and accessibility, government-funded scientific missions remain the bedrock of the SAR ecosystem. These missions often pioneer new technologies, provide the long-term, calibrated data records necessary for climate science, and make their data available for free. This open data policy is a powerful catalyst, stimulating academic research and enabling the development of new applications that commercial operators can later build upon.

This creates a symbiotic relationship. Government missions de-risk the development of new applications by providing vast, free datasets for experimentation. Startups, universities, and researchers can use this data to build and validate new algorithms for flood mapping, deforestation detection, or crop analysis. Once these applications are proven and a user base is established, commercial companies can enter the market to serve that demand with higher-performance data, such as imagery with better resolution or higher revisit rates. Upcoming missions like NISAR are poised to trigger the next wave of this innovation cycle.

The Copernicus Sentinel-1 Program: Europe’s Open Data Workhorse

The Sentinel-1 mission, part of the European Union’s Copernicus Programme and operated by the ESA, is arguably the most influential SAR mission today. The constellation, consisting of Sentinel-1A and Sentinel-1C, provides reliable, repeated C-band radar coverage of the entire globe.

Its defining feature is its free, full, and open data policy. All data from Sentinel-1 is made available to the public, free of charge, typically within a few hours of acquisition. This unprecedented access has made Sentinel-1 the most widely used SAR dataset in the world, forming the basis for thousands of scientific studies and operational applications, from tracking agricultural trends to providing the foundational data for emergency flood maps.

Canada’s RADARSAT Constellation Mission: Sovereignty and Surveillance

The RADARSAT constellation mission (RCM) is Canada’s third generation of Earth observation radar satellites, operated by the CSA and natural resources Canada. Comprising three identical satellites flying in formation, the RCM is specifically designed to provide frequent and comprehensive surveillance of Canada’s vast landmass and maritime approaches.

The constellation’s C-band radar is optimized for its core missions: maritime surveillance (detecting ships and oil pollution), monitoring sea and lake ice in northern waters, and disaster management. With three satellites, the RCM can revisit Canada’s Arctic up to four to six times per day. A key innovation of the RCM is the inclusion of an AIS receiver on each satellite. This allows authorities to directly correlate radar detections of vessels with their broadcast identity signals, providing a powerful tool for maritime security and sovereignty.

The NISAR Mission: A New Era of Earth Science

Set to launch in 2025, the NASA-ISRO Synthetic Aperture Radar mission is a groundbreaking partnership between NASA and ISRO. It promises to be one of the most advanced Earth-observing satellites ever built.

NISAR’s unique capability lies in its use of two different radar frequencies simultaneously: an L-band radar provided by NASA and an S-band radar from ISRO. This dual-frequency approach will enable unprecedented studies of some of the planet’s most complex processes. The longer-wavelength L-band will provide deep insights into vegetation structure, biomass, and soil moisture, while the combination of bands will allow for highly accurate measurements of changes in ice sheets, ecosystem disturbances, and ground deformation from natural hazards like earthquakes, tsunamis, and volcanoes. Following the model of other scientific missions, all NISAR data will be freely available, providing a rich new resource for the global scientific community.

Real-World Applications: From Disaster Response to Global Security

The true measure of SAR technology lies in its tangible impact across a growing number of sectors. Its unique ability to provide reliable, detailed information is solving real-world problems for governments, industries, and environmental organizations.

Maritime Domain Awareness: Exposing Illegal Fishing and Smuggling

The world’s oceans are vast and notoriously difficult to patrol. A common tactic for vessels engaged in illegal, unreported, and unregulated (IUU) fishing or other illicit activities is to disable their AIS transponders, effectively disappearing from conventional monitoring systems and becoming “dark vessels.”

SAR provides a powerful solution to this challenge. Because it actively illuminates the surface, it can detect the metallic hull of a ship regardless of whether it is broadcasting an AIS signal. By acquiring a SAR image of a maritime area and comparing the vessel detections with publicly available AIS data, authorities can instantly identify any dark vessels. This capability allows enforcement agencies to focus their limited patrol resources far more effectively. For example, the DIU xView3 challenge spurred the development of AI algorithms that automatically detect dark vessels in Sentinel-1 imagery, a capability now being used by the USCG. Commercial operators like ICEYE also provide high-revisit monitoring services to help nations secure their Exclusive Economic Zones (EEZs).

Infrastructure and Geohazard Monitoring: Tracking Millimeter-Scale Ground Movement

Critical infrastructure like bridges, dams, railways, and pipelines can be threatened by slow, gradual ground movement, or subsidence, that is invisible to the naked eye. This sinking of land, often caused by groundwater extraction, mining, or natural geology, can stress structures to the point of failure.

ISAR is the only technology capable of measuring these subtle, widespread movements with millimeter-level precision across entire regions. By analyzing a time series of SAR images, asset managers can monitor the stability of entire rail networks, pinpoint areas of subsidence in mining operations, and identify weak points in water utility pipelines before they burst. Following the tragic Brumadinho dam collapse in Brazil, InSAR analysis was used to study the ground deformation leading up to the event, demonstrating its potential as a tool for both forensic analysis and future disaster prevention.

Environmental Stewardship: Mapping Floods, Deforestation, and Ice Melt

SAR’s all-weather capability makes it an indispensable tool for environmental monitoring, especially in situations where optical satellites are ineffective.

• Flood Mapping: Major storms and hurricanes are always accompanied by heavy cloud cover, rendering optical satellites useless for immediate response. SAR penetrates the clouds and rain, providing the first clear view of the disaster zone. Calm floodwaters appear distinctly dark in SAR imagery, allowing emergency responders to rapidly and accurately map the extent of inundation, prioritize rescue efforts, and assess damage to property and agriculture.
• Deforestation Monitoring: Many of the world’s most vulnerable forests are in tropical regions that are perpetually cloudy. SAR provides a reliable way to monitor these areas for illegal logging and other forms of deforestation. The removal of trees causes a significant change in the radar backscatter, which is easily detected. Longer wavelength L-band SAR is particularly effective at sensing changes in forest biomass, while new high-resolution commercial SAR can detect small-scale selective logging that might be missed by lower-resolution sensors.
• Cryosphere Monitoring: The polar regions are shrouded in darkness for half the year and are frequently cloudy, making SAR a primary tool for monitoring glaciers and sea ice. It is used to map the extent of sea ice, track the movement of large icebergs that pose a hazard to shipping, and measure the velocity of glaciers as they flow toward the sea. Changes in the radar backscatter over time also provide glaciologists with vital information about snow and ice conditions, such as the onset of surface melt.

Defense and Intelligence: Gaining a Strategic Advantage

The all-weather, day-night capability of SAR gives military and intelligence agencies a persistent surveillance tool that cannot be countered by darkness or bad weather. It is used to monitor activity at military installations, airfields, and ports, and to track the movement of vehicles and troops. High-resolution imagery allows for the identification and classification of specific types of military equipment. The widespread use of commercial SAR imagery during the Russia-Ukraine conflict demonstrated its modern strategic value, providing unclassified, shareable intelligence that could be distributed among allies to maintain situational awareness.

The Evolving Marketplace and Future Outlook

The synthetic aperture radar market is on a trajectory of significant expansion. Multiple market analyses project strong, consistent growth, with the global market expected to expand from approximately $6 billion in 2025 to between $10 billion and $20 billion by the early 2030s, reflecting a compound annual growth rate (CAGR) in the double digits. North America, driven by substantial defense and intelligence spending, is currently the largest market, while the Asia-Pacific region is forecast to be the fastest-growing.

This growth is being propelled by several transformative trends:

• The Impact of Smallsat Constellations: The proliferation of small satellite constellations is the primary market driver. This trend is making SAR data more affordable, accessible, and timely, with higher revisit rates enabling near-real-time monitoring applications that were previously unimaginable.
• The Role of AI and Machine Learning: The sheer volume of data produced by SAR constellations is too vast for manual analysis. Artificial intelligence and machine learning are the keys to unlocking its value. AI is automating the detection, classification, and analysis of features and changes in SAR imagery, fundamentally shifting the industry’s focus from providing pixels to providing answers.
• Data Fusion and Multi-Sensor Analytics: The most powerful insights often come from combining SAR data with other sources. Fusing SAR imagery with optical data, AIS signals, and other information provides a more complete and reliable intelligence picture than any single sensor can deliver alone.

The future SAR market will likely be defined by tiered access and increasing specialization. At the foundation, free and open data from government missions like Sentinel-1 and NISAR will continue to fuel broad-area research and algorithm development. In the middle tier, commercial operators will offer raw imagery and basic monitoring services, competing on resolution, revisit time, and price. The highest value, however, will be captured at the top tier by companies that provide highly specialized, AI-driven, end-to-end solutions for specific vertical markets. Customers will increasingly subscribe not to a data feed, but to an intelligence service that delivers automated alerts for maritime security, predictive maintenance warnings for infrastructure, or parametric insurance triggers for natural disasters.

Summary

Synthetic Aperture Radar has firmly established itself as a cornerstone of modern Earth observation. Its unique ability to deliver reliable, high-resolution imagery day or night, regardless of weather conditions, provides a powerful and persistent view of our planet. The market is characterized by a dynamic interplay between foundational government missions that provide open data and a vibrant commercial sector, led by NewSpace innovators like ICEYE, Capella Space, and Umbra, that is pushing the boundaries of capability and accessibility.

The impact of SAR is already being felt across a diverse range of applications, from enhancing global maritime security and preventing catastrophic infrastructure failures to providing critical data for monitoring deforestation and the effects of climate change. Looking forward, the fusion of rapidly expanding smallsat constellations with the analytical power of artificial intelligence is set to make SAR-derived insights an even more integral part of decision-making for governments, industries, and researchers around the globe.
