Chrysler’s Grand Ambition
This article explores the Chrysler SERV, an ambitious spacecraft concept from the 1970s. In the era immediately following the triumphant Apollo program, the United States stood at a crossroads in space exploration. The lunar landings had been a monumental scientific and geopolitical achievement, but they were also astronomically expensive. The rockets that made them possible, the mighty Saturn V, were single-use machines. Each launch meant discarding an entire skyscraper-sized vehicle.
NASA, the nation’s civilian space agency, understood this model wasn’t sustainable. The future, it believed, lay in routine, affordable access to space. The agency needed a “space truck” – a reusable vehicle that could ferry people and cargo to Low Earth Orbit (LEO) repeatedly, much like an airliner services a transcontinental route. This quest sparked the definition of the Space Shuttle program.
While the world remembers the iconic winged orbiter that Rockwell International eventually built, the competition to design this next-generation vehicle was intense. Numerous aerospace giants, including Grumman and McDonnell Douglas, submitted designs. Among these titans was a name many associated more with highways than high orbits: Chrysler.
Chrysler’s Space Division was no novice. It had been a prime contractor on the Saturn IB rocket, building the powerful first stage that launched early Apollo missions. When NASA put out the call for a reusable space shuttle, Chrysler didn’t just propose an alternative. It proposed a revolution.
Its design was the Single-stage Earth-orbital Reusable Vehicle, or SERV. It wasn’t a winged spaceplane. It was a massive, blunt-nosed cone, a true Single-Stage-to-Orbit (SSTO) vehicle that would take off vertically, fly directly to orbit without dropping any stages, and then return to Earth, landing vertically on a plume of rocket fire. It was a design that looked more like something from a 1950s science fiction magazine cover than a practical engineering proposal.
Yet, it was a serious contender. The SERV represented a bold, optimistic leap toward the ultimate goal of space travel: full and rapid reusability. It was a vision that was decades ahead of its time, incorporating technologies that are only now, in the 21st century, becoming reality. This article details the remarkable design of the SERV, the futuristic technologies it championed, and why this fascinating “paper spaceship” ultimately lost out to its more conventional rival, the Space Shuttle.
The Post-Apollo Quest for Reusability
To understand the Chrysler SERV, one must first understand the problem it was trying to solve. The Apollo program was a staggering success of brute-force engineering. The Saturn V rocket was, and remains, the most powerful launch vehicle ever successfully flown. It worked by using the principle of “staging.”
A rocket is essentially a collection of fuel tanks and engines. The vast majority of a rocket’s initial weight is just propellant. To reach orbit, a rocket must achieve a velocity of over 17,000 miles per hour. As it burns fuel, the massive tanks that held that fuel become dead weight. By dropping these empty tanks (the “stages”) along the way, the remaining rocket becomes lighter and can accelerate more easily. The Saturn V had three main stages, all of which were discarded and destroyed during their ascent to the Moon.
This was incredibly effective but also incredibly wasteful. It was equivalent to flying a 747 from New York to London and then pushing it into the Atlantic Ocean, building a brand new one for the return trip. In the early 1970s, with the Vietnam War straining the national budget and public enthusiasm for space waning after the Moon landing, NASA could no longer afford this disposable philosophy.
The agency’s grand plan was a space station in permanent orbit, which would require a constant stream of supplies and crew rotations. Doing this with expendable rockets would be financially impossible. The call went out for a “fully reusable” launch system. This was the “holy grail” of rocketry: a vehicle that could launch, deliver its payload, re-enter the atmosphere, land, refuel, and fly again, potentially within weeks or even days.
This was the context for the Space Shuttle program. NASA‘s initial “Phase A” studies explored a wide range of concepts, many of which were fully reusable two-stage designs. These typically involved a massive, winged “booster” aircraft that would carry a smaller, winged “orbiter” on its back to a high altitude, release it, and then fly back to a runway. The orbiter would then fire its own engines to get to orbit.
Chrysler‘s team looked at this problem and proposed skipping a step. Why have two vehicles when you could have one? Their SERV concept was a Single-Stage-to-Orbit (SSTO) design. This was the pinnacle of launch vehicle efficiency. An SSTO vehicle would light its engines on the launch pad and wouldn’t shut them down until it was safely in orbit. It would drop no boosters, no tanks, nothing. It would go all the way on its own.
This was, and remains, an enormously difficult engineering challenge. The physics of orbital mechanics are governed by the Tsiolkovsky rocket equation, a fundamental principle that dictates a rocket’s change in velocity. While this article will avoid formulas, the concept is simple: to achieve the high speed of orbit, a rocket must be composed almost entirely of propellant.
For a typical multi-stage rocket, about 90% of its launch weight is fuel. The remaining 10% is the “dry mass,” which includes the engines, tanks, avionics, and the payload itself. For an SSTO vehicle, the numbers are even more demanding. The dry mass might need to be as low as 5% or 6% of the total launch weight. This means the vehicle’s structure must be impossibly lightweight yet strong enough to withstand the forces of launch and the fiery heat of reentry. In the 1970s, this was a monumental hurdle. Chrysler believed it had a solution.
Unveiling the SERV Concept

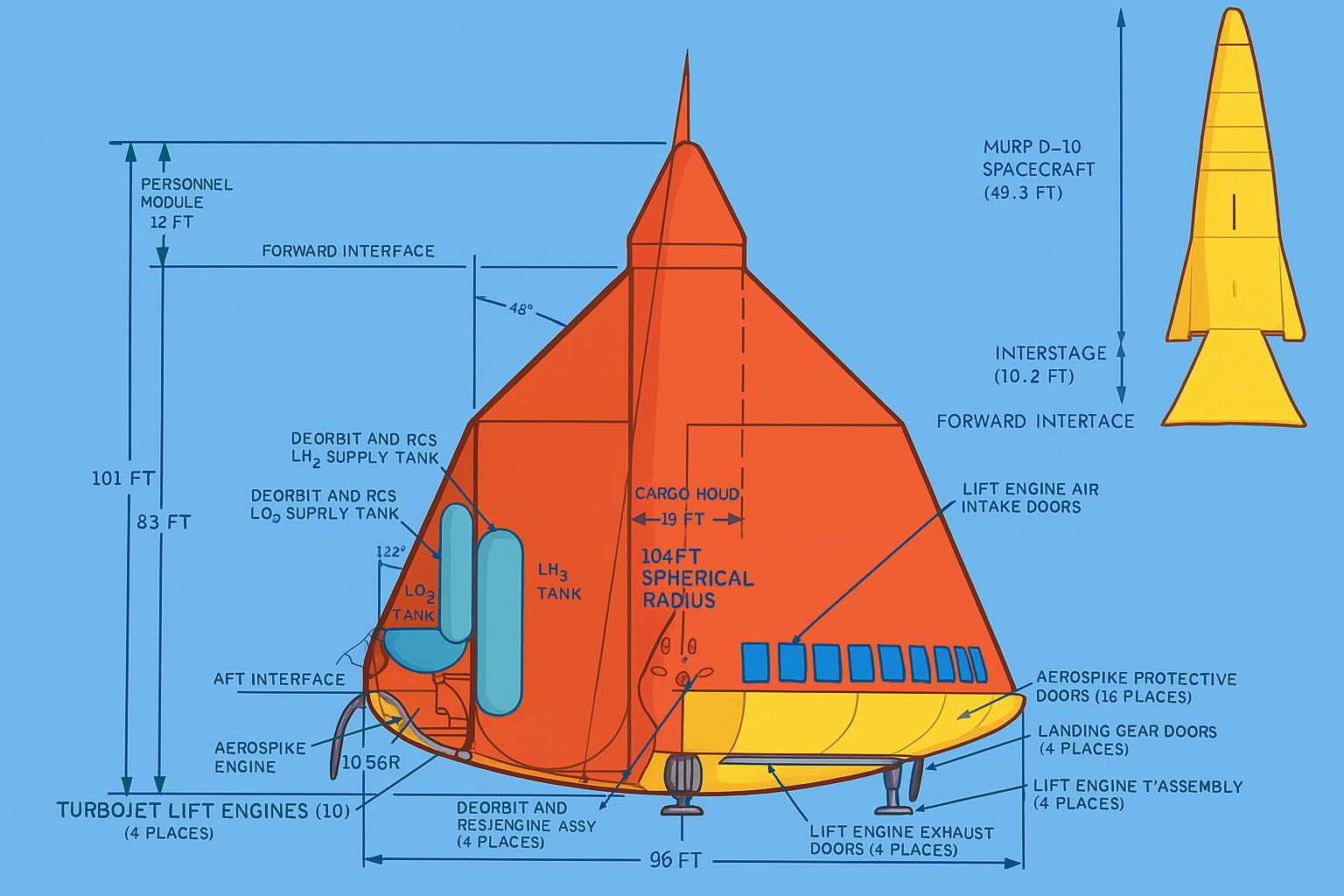

The SERV didn’t look like a rocket, and it didn’t look like a plane. Its appearance was dictated entirely by its unique mission profile. It was a massive, blunt-nosed cone, measuring roughly 80 feet tall and 96 feet wide at its base. It was a pure lifting body, a design concept that NASA had been experimenting with at its Dryden Flight Research Center with vehicles like the M2-F2 and the HL-10.
The Lifting Body Principle
A lifting body is a vehicle that generates aerodynamic lift without traditional wings. A typical airplane wing works because its curved upper surface forces air to travel faster than the flat bottom surface, creating a pressure difference that “sucks” the wing upward. A lifting body, by contrast, uses its specially shaped fuselage to do the same thing.
During reentry from space, a lifting body like SERV would fly at a high “angle of attack,” with its broad, flat base angled into the oncoming superheated air (plasma). This shape would serve two purposes. First, it would act as a massive heat shield, spreading the thermal load over a wide area, much like the blunt base of an Apollo command module. Second, this high-drag profile would be incredibly effective at slowing the vehicle down from orbital speeds, bleeding off energy as heat.
Once in the thicker, lower atmosphere, the vehicle’s conical shape would begin to generate lift, allowing the pilots to control its descent and fly it – or, more accurately, glide it – toward a landing site with a “cross-range” capability of several hundred miles. This meant it wasn’t just falling; it could maneuver left or right of its reentry path to aim for a specific landing zone. This was a feature NASA demanded for any shuttle, allowing it to abort a launch and land back at its launch site or adjust its landing target.
The Space Shuttle orbiter achieved this with its large delta wings, which gave it excellent gliding characteristics. The SERV, lacking wings, would have had a much steeper, faster descent, a “lead sled” in pilot parlance. But it didn’t need to glide gently to a runway. Its landing method was just as radical as its launch.
VTOVL: The Launch and Landing Vision
The SERV was a VTOVL (Vertical Takeoff, Vertical Landing) vehicle. This is a concept that has only recently been mastered by companies like SpaceX and Blue Origin.
The launch would look familiar: the vehicle would sit on a launchpad, ignite its main engines, and ascend vertically, climbing straight up through the atmosphere into space. It would burn its engines continuously until it achieved orbital velocity, a single, uninterrupted 8-minute ride to orbit.
The landing would have been spectacular. After its high-speed reentry, slowed by its lifting bodyshape, the SERV would continue to fall toward its landing pad. At the last possible moments, it would re-ignite its main engines. This “propulsive landing” burn would decelerate the massive vehicle from terminal velocity to a gentle, precise touchdown, settling back onto its landing legs.
This VTOVL capability was key to Chrysler‘s vision of rapid reusability. A runway landing, as chosen for the Space Shuttle, required a massive, 3-mile-long runway (like the Shuttle Landing Facility in Florida). After landing, the orbiter had to be painstakingly inspected, processed, and then hoisted onto the back of a modified Boeing 747 to be flown back to its launch site if it landed elsewhere. This process took weeks or months.
The SERV, by contrast, would land directly back at its launch complex. It could, in theory, be refueled, have its payload loaded, and be stacked for another launch in a matter of days. This was the “airline operations” model that NASA dreamed of.
Payload and Crew
Inside the massive conical structure, the SERV was surprisingly spacious. The design hid a large, cylindrical payload bay, reportedly capable of carrying 40,000 pounds (about 18,000 kg) to LEO, with some variants proposing up to 100,000 pounds. This was comparable to the Space Shuttle‘s intended capacity. The payload bay doors would open at the top of the vehicle, allowing it to deploy satellites or modules for a space station.
The crew compartment, housing two astronauts, was nestled near the nose. Because of the VTOVL design, the crew would launch lying on their backs but would land in a seated position. The vehicle was designed to be modular. The payload bay could be swapped out for a pressurized passenger module, allowing the SERV to carry a dozen or more people to a space station.
All of this – the SSTO performance, the lifting body reentry, and the propulsive VTOVL landing – was dependent on one central piece of technology: a revolutionary new type of rocket engine.
The Engine That Made It Possible
The single greatest challenge for any Single-Stage-to-Orbit (SSTO) vehicle is propulsion. The engine must be both powerful and incredibly efficient. But it also faces a problem: it has to operate perfectly in two completely different environments.
The Problem with Bell Nozzles
A traditional rocket engine, like the F-1 on the Saturn V or the RS-25 on the Space Shuttle, has a large, cone- or bell-shaped nozzle. This nozzle is a critical component. It takes the high-pressure exhaust gas from the combustion chamber and accelerates it to supersonic speeds, generating thrust.
The “shape” of this nozzle is optimized for a specific air pressure, or altitude. A first-stage engine, which operates in the thick air at sea level, needs a relatively short, small nozzle. A second-stage engine, which operates in the vacuum of space, needs a much larger nozzle to maximize efficiency.
An engine with a large “vacuum” nozzle would be hopelessly inefficient at sea level; the thick air would “separate” from the nozzle wall and cause the exhaust to become unstable. Conversely, a “sea level” engine operating in a vacuum is “under-expanded,” meaning it’s wasting potential energy that a larger nozzle could have converted into thrust.
This is why “staging” is so effective. The first stage uses sea-level-optimized engines, and the second stage uses vacuum-optimized engines. An SSTO vehicle doesn’t have this luxury. It must use the same engines from the launch pad all the way to orbit. It needs an engine that can be a perfect sea-level engine and a perfect vacuum engine at the same time.
The Aerospike Solution
Chrysler‘s solution for SERV was the aerospike engine.
An aerospike is a radical design that essentially turns a traditional bell nozzle inside out. Instead of the hot gas expanding against the inside of a bell, it expands against the outside of a central “spike” or “plug.” The “other side” of the nozzle isn’t a metal wall; it’s the ambient air pressure of the atmosphere itself.
At sea level, the thick air pressure “squeezes” the exhaust plume against the spike, forcing it to behave like an ideal, small nozzle. As the vehicle climbs and the air pressure drops, the exhaust plume is free to expand outward, automatically and continuously adjusting its shape to match the optimal expansion ratio for that altitude. In the vacuum of space, the plume expands fully, providing maximum efficiency.
This “altitude-compensating” ability made the aerospike engine the theoretical key to unlocking SSTO. It offered high performance across the entire ascent, something no bell nozzle could match.
The SERV’s entire base was one massive, annular aerospike engine. Instead of one giant combustion chamber, the design used 24 separate combustion chambers arranged in a ring, all firing their exhaust against the large, blunt, central plug. This plug also doubled as the vehicle’s primary heat shield during reentry.
This design had other advantages. Steering, or “thrust vectoring,” could be achieved by throttling the individual chambers up or down. To pitch the rocket’s nose “up,” the engines on the “down” side would be throttled slightly higher. This was a more elegant solution than the Space Shuttle‘s RS-25 engines, which had to physically gimbal (swivel) their entire massive engine bells with heavy hydraulic actuators.
The propellants for this engine were the most powerful chemical combination available: cryogenic liquid hydrogen (LH2) as the fuel and liquid oxygen (LOX) as the oxidizer. These propellants provide a very high “specific impulse,” which is a measure of rocket engine efficiency. The downside is that liquid hydrogen is extremely low-density and must be kept at incredibly cold temperatures. This dictated SERV’s bulky, conical shape; it needed a massive internal volume to hold the lightweight but voluminous hydrogen fuel.
The Technology Gap
The aerospike engine was, and is, a brilliant concept. Rocketdyne, the same company that built the F-1 and RS-25 engines, had been testing them for years. However, building a single, small aerospike test engine is one thing. Building a massive, 96-foot-wide annular array of 24 high-performance, reusable, throttle-able, staged-combustion engines was another.
The engineering challenges were immense. The cooling requirements for the central plug, which would have superheated gas flowing over it for 8 minutes, were extreme. The plumbing to feed LOX and LH2 to all 24 chambers was a nightmare of complexity. The metallurgy to handle the temperatures and pressures was at the absolute limit of 1970s materials science.
NASA‘s engineers, looking at Chrysler‘s proposal, saw not just one, but a stack of unproven, high-risk technologies. SSTO itself was unproven. Large-scale aerospikes were unproven. Propulsive landing of a vehicle this size was unproven. And the lifting body reentry profile was still considered experimental.
Proposed Missions and Variants
The Chrysler SERV was not just a single vehicle; it was a platform for a new generation of spaceflight. Its designers envisioned a fleet of SERVs servicing the orbital needs of the United States.
The primary mission was logistics for a space station. The 1970s was the era of Skylab, America’s first space station, and NASA was already deep in planning for its successor, a large, modular station (which, after decades, would evolve into the International Space Station (ISS)). SERV, with its “airline-style” operations, was presented as the perfect taxi. It could launch on demand, rendezvous with the station, use its grappling arms to transfer a new science module from its payload bay, and return to Earth with crew and completed experiments, all within a 48-hour mission.
This rapid turnaround was its main selling point. The Chrysler team projected that a SERV could fly 100 times or more, drastically reducing the cost-per-pound to orbit.
The name “SERV” itself is a source of some confusion. While the main SSTO launch vehicle was called SERV (Single-stage Earth-orbital Reusable Vehicle), an earlier and related Chrysler concept had the same acronym but a different meaning: Space Emergency Re-entry Vehicle. This was a smaller, simpler conical vehicle intended to be a “lifeboat” for a space station. If the station was damaged, the crew could pile into the emergency SERV, detach, and use its blunt lifting body shape to re-enter the atmosphere and land safely. It’s clear that the design principles of this lifeboat concept heavily influenced the later, much larger, launch vehicle.
MURP: The Nuclear Connection
Perhaps the most far-reaching variant of the SERV was a design known as MURP (Manned Upper-stage Reusable Payload). This concept was not an SSTO launcher. Instead, it was an in-space transfer vehicle for deep-space missions.
The MURP would use the same conical SERV airframe, but its internal tanks would be mated to a revolutionary propulsion system: a nuclear engine. This was part of the NERVA (Nuclear Engine for Rocket Vehicle Application) program, a joint NASA/Atomic Energy Commission project to build a nuclear thermal rocket.
A nuclear thermal rocket works by using a compact nuclear reactor to heat liquid hydrogen to extreme temperatures, expanding it through a nozzle to create thrust. It’s vastly more efficient than any chemical rocket. A MURP vehicle, assembled in orbit after being launched by a Saturn V or a future heavy-lift rocket, would be a reusable “space tug” for crewed missions to the Moon or even Mars.
After completing its mission in deep space, the MURP vehicle would return to Earth orbit. The crew module, which was the SERV cone, would detach and perform a lifting body reentry, landing propulsively on Earth. The nuclear engine stage would remain safely in a high “parking orbit” to be refueled for its next mission. This ambitious plan combined the reentry and landing capabilities of SERV with the high-efficiency propulsion of NERVA. It was the high-water mark of post-Apollo optimism.
Why the Shuttle Won and SERV Faded
The SERV was a beautiful, futuristic, and logical design. It represented a direct leap to the ultimate goal of full reusability. And yet, it failed. It never progressed beyond detailed “paper studies,” models, and concept art. The primary reason for its demise was that it was simply too far ahead of its time.
Technology Was Too Ambitious
When NASA managers and engineers compared the Chrysler SERV to the Rockwell International winged shuttle concept, they saw two different philosophies.
The Space Shuttle design, while complex, distributed its risk. It was a 1.5-stage vehicle. The RS-25 engines were a (difficult) evolution of the J-2 engine from the Saturn V. The Solid Rocket Boosters were based on existing military technology. The orbiter’s runway landing was a concept NASA pilots understood well from the experimental X-15 rocket plane. The most challenging part was the thermal protection system (the silica tiles), which proved to be an enormous challenge.
The SERV, in contrast, stacked multiple, brand-new technologies on top of each other. Each one – SSTO, aerospike, VTOVL – was a massive technological hurdle in its own right. To attempt to develop all of them, at the same time, in a single vehicle, on a tight 1970s budget, seemed like a recipe for failure. The propulsive landing was a particular point of concern. What if one engine failed during the landing burn? The result would be a catastrophic crash. The Space Shuttle‘s unpowered glide landing, while risky, was seen as a more reliable and “proven” approach.
Political and Economic Realities
The final decision wasn’t just technical; it was political and economic. The Nixon administration had approved the Space Shuttle program, but with a much smaller budget than NASA had hoped for. The agency was under intense pressure to deliver a working shuttle quickly and without massive cost overruns.
The semi-reusable Space Shuttle design (reusable orbiter and boosters, disposable external tank) was seen as the pragmatic compromise. It was a “step” toward reusability, whereas the SERV was a “leap.” NASA felt it only had the political and financial capital for the step.
Furthermore, the Space Shuttle design spread the work across multiple aerospace contractors in multiple states, which was a political advantage. Rockwell International in California got the orbiter, Thiokol in Utah got the solid boosters, and Martin Marietta (later part of Lockheed Martin) in Louisiana got the external tank. Chrysler‘s all-in-one vehicle design didn’t offer the same political “share the wealth” benefits.
Ultimately, NASA opted for the safer, more conservative VTHL (Vertical Takeoff, Horizontal Landing) winged design. The contract was awarded to Rockwell International, and Chrysler‘s ambitious space cone was relegated to the archives. The Chrysler Space Division was eventually sold, and the company returned its focus to manufacturing automobiles.
The Legacy of a Paper Spaceship
The SERV was never built, but its ideas were too powerful to disappear completely. It stands as a fascinating example of a concept that was not wrong, merely decades early. Its core technologies have all re-emerged and are now seen as the cutting edge of modern rocketry.
The Aerospike’s Persistence
The aerospike engine concept was resurrected in the 1990s by NASA and Lockheed Martin for the X-33program. This was another attempt to build an SSTO vehicle, this time a “lifting body” spaceplane that would be powered by two advanced, linear aerospike engines (the XRS-2200). The X-33 program was also canceled due to technical problems (specifically, its composite fuel tank), but not before the Rocketdyne-built engines were successfully test-fired, proving the concept worked at a large scale.
Today, a new generation of rocket companies, including Firefly Aerospace, continues to experiment with aerospike engines, believing their superior efficiency holds the key to more capable launch vehicles.
The VTOVL Dream Realized
The most visible legacy of the SERV is its VTOVL (Vertical Takeoff, Vertical Landing) flight profile. For decades, propulsive landing was pure science fiction. In the 1990s, the McDonnell Douglas DC-X (Delta Clipper Experimental) was a small, unmanned demonstrator that proved a rocket could take off vertically, fly sideways, and land vertically on a plume of fire. It was a direct descendant of the SERV’s operational concept.
Today, this is no longer experimental. Blue Origin‘s New Shepard rocket performs this feat routinely on its suborbital tourist flights. And most famously, SpaceX‘s Falcon 9 first-stage boosters perform propulsive vertical landings after every mission, either on a drone ship or back at the launch site. This capability, which NASAdeemed too risky in the 1970s, has become the foundation of the new commercial space race.
The clearest echo of the Chrysler SERV is the SpaceX Starship. While its shape is different (a cylinder of stainless steel rather than a blunt cone) and it is part of a two-stage system, its upper stage is a direct expression of the SERV’s goals. It’s a massive, reusable vehicle designed to ferry 100 people to orbit, re-enter the atmosphere using its body to slow down, and then perform a propulsive, vertical landing. It is, in many ways, the spiritual successor to the vehicle Chrysler proposed half a century ago.
Summary
The Chrysler SERV was a bold, imaginative, and logical answer to the challenge of reusable spaceflight. Born in the optimistic afterglow of the Apollo program, it was an all-in-one solution: a Single-Stage-to-Orbit (SSTO)vehicle that would launch vertically, land vertically, and be ready to fly again in days.
It was defined by a trio of futuristic technologies: a lifting body airframe for reentry, a highly efficient aerospike engine for its all-in-one ascent, and a propulsive VTOVL (Vertical Takeoff, Vertical Landing) capability for “airline-like” ground operations.
In the 1970s, these innovations were seen as too complex, too risky, and too expensive. NASA, facing shrinking budgets, chose the more conventional, semi-reusable Space Shuttle. The SERV, along with its nuclear-powered MURP variant, was filed away.
History has proven Chrysler‘s engineers to be prophetic. The very concepts that were dismissed as science fiction in the 1970s are now the driving force of 21st-century aerospace. The SpaceX Starship and other next-generation vehicles are a direct validation of the SERV’s core design philosophy. The ChryslerSERV may be a forgotten “paper spaceship,” but its legacy is being written today in fire and steel, as its core ideas finally, after 50 years, take flight.
References
Here are PDF-download links for all six volumes of the Chrysler SERV (Single-Stage Earth-Orbital Reusable Vehicle) study under NASA Contract NAS8-26341:
- Volume 1: Summary – Document ID 19730066109. Download link: 19730066109-2.pdf (NASA Technical Reports Server)
- Volume 2: Aerodynamic Model Testing – Document ID 19730066110. Download link: 19730066110_Redacted.pdf (NASA Technical Reports Server)
- Volume 3: Concept Evaluation – (listed in the study summary as one of the six) (NASA Technical Reports Server)
- Volume 4: Vehicle Definition / Appendices – Document ID 19730066159. Download link: 19730066159-2.pdf(NASA Technical Reports Server)
- Volume 5: Operations Definition – (listed in the study summary) (NASA Technical Reports Server)
- Volume 6: Resources – Document ID 19730010131. Download link: 19730010131.pdf (NASA Technical Reports Server)
