Launch vehicle fairings play a critical role in the success of space missions by protecting the payload during the initial phase of the rocket’s ascent through Earth’s atmosphere. These aerodynamic structures encapsulate satellites, spacecraft, and other valuable cargo, shielding them from the harsh conditions encountered during launch. The fairing’s design and performance are crucial factors in ensuring the payload reaches its intended orbit safely and intact.
Fairing Design and Materials
Payload fairings are typically constructed using lightweight yet strong composite materials, such as carbon fiber reinforced polymer (CFRP) sandwiched between aluminum honeycomb cores. This combination provides excellent structural integrity while minimizing the overall mass of the fairing. The conical or ogive shape of the fairing is designed to reduce aerodynamic drag and maintain stability during the rocket’s flight through the atmosphere.

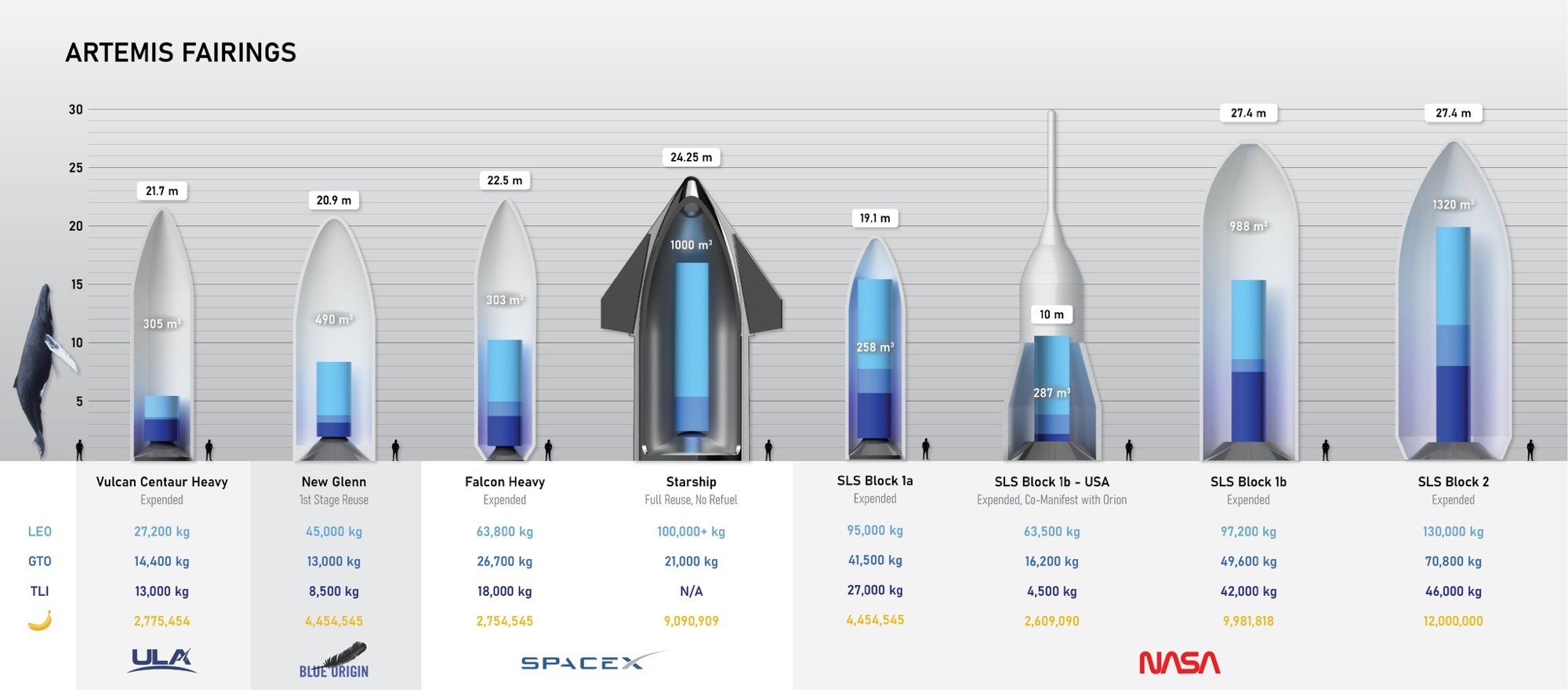

The size of the payload fairing varies depending on the specific launch vehicle and the dimensions of the payload it must accommodate. Fairings can range from a few meters in diameter for small satellite launches to over 5 meters for larger payloads. The length of the fairing is also a critical factor, as it must provide sufficient volume to house the payload and any necessary support structures.
Protective Functions
The primary purpose of the payload fairing is to shield the payload from the extreme conditions experienced during launch. These conditions include:
- Aerodynamic forces: The fairing must withstand the intense pressure and friction generated by the rocket’s high-speed travel through the atmosphere.
- Acoustic vibrations: The powerful engines of the launch vehicle create significant noise and vibration, which can damage sensitive payloads. The fairing helps to dampen these acoustic loads.
- Thermal protection: As the rocket ascends, the fairing’s exterior experiences high temperatures due to atmospheric friction. The fairing insulates the payload from this heat, maintaining a stable internal environment.
- Contamination prevention: The fairing keeps the payload clean and free from debris, dust, and moisture during the launch process.
Separation and Jettison
Once the launch vehicle has reached a sufficient altitude and is outside the Earth’s atmosphere, the payload fairing is no longer needed. At this point, the fairing separates into two halves and is jettisoned from the rocket. This separation typically occurs a few minutes into the flight, at an altitude of approximately 100 kilometers.
The separation process is a critical event that must be executed with precise timing and coordination to avoid damaging the payload or interfering with the rocket’s trajectory. Traditional separation systems rely on pyrotechnic devices that detonate to break the fairing into two halves and push them away from the payload. However, newer designs are exploring the use of non-pyrotechnic separation mechanisms, such as pneumatic actuators and spring-loaded hinges, to reduce the shock loads experienced by the payload during separation.
Acoustic Mitigation Strategies
In addition to the structural protection provided by the fairing, engineers have developed various strategies to further reduce the acoustic loads on the payload. One approach is to line the interior of the fairing with acoustic absorption materials, such as foam or blankets, which help to dissipate the sound energy.
Another innovative solution is the use of micro-perforated panels in the fairing’s construction. These panels feature tiny holes that allow sound waves to pass through, reducing the overall noise levels within the fairing. This technique has been shown to provide significant acoustic attenuation without adding substantial mass or volume to the fairing.
Reusability and Cost Reduction
As the space industry continues to evolve and emphasize cost-effectiveness, there is growing interest in developing reusable payload fairings. By recovering and refurbishing fairings after launch, companies can reduce the overall cost of space missions and increase launch frequency.
Rocket Lab is exploring the concept of a fully reusable launch vehicle, call Neutron, where the payload fairing remains attached to the rocket’s first stage during the entire flight. After deploying the payload, the fairing would close and return to Earth with the first stage, ready for the next mission. This approach eliminates the need for a separate recovery process and further streamlines the launch operation.
SpaceX has successfully demonstrated the ability to recover payload fairings. The recovered fairings can then be refurbished and used on future launches, providing significant cost savings. The following section provides more details on their process.
SpaceX Payload Fairing Recovery
SpaceX has made significant strides in recovering and reusing payload fairings, which are the protective nose cone structures that encapsulate satellites during launch. Each fairing half costs approximately $3 million to manufacture, making their recovery and reuse an important aspect of reducing launch costs.
Initially, SpaceX attempted to catch the fairing halves using ships equipped with large nets, such as Ms. Tree and Ms. Chief. The fairings were outfitted with thrusters and steerable parafoils to control their descent after jettisoning from the rocket. However, this method proved challenging due to weather conditions and the difficulty of precisely aligning the ships with the descending fairings.
As of 2021, SpaceX has transitioned to a “wet recovery” method, where the fairings are allowed to gently splash down in the ocean and are then retrieved by recovery ships. The company has made modifications to the fairings, such as relocating sensitive components and improving waterproofing, to better accommodate water landings.
SpaceX’s current fairing recovery process involves the following steps:
- The fairing halves separate from the rocket and descend using thrusters and steerable parafoils.
- The halves splash down in the ocean and float on the surface due to their lightweight, composite construction.
- Recovery ships, such as Bob and Doug, equipped with cranes and lifting mechanisms, arrive at the splashdown location.
- The fairing halves are lifted onto the ship’s deck using a specialized net or other lifting device.
- The recovered fairings are returned to port, where they are refurbished and prepared for reuse on future missions.
This wet recovery method has proven to be more reliable and cost-effective than the previous catch attempts, with SpaceX successfully recovering a high percentage of launched fairings. As of 2023, some fairing halves have been reused on as many as 13 missions.
By refurbishing and reusing payload fairings, SpaceX continues to optimize its launch operations and reduce the overall cost of access to space. This innovative approach to fairing recovery is one of the many ways SpaceX is revolutionizing the space industry and making spaceflight more affordable and sustainable.
Future Developments
As the demand for satellite launches and space exploration continues to grow, innovations in payload fairing design and technology will be essential to support the increasing pace and complexity of missions. Researchers and engineers are continually working to develop lighter, stronger, and more efficient fairing materials and structures.
One area of focus is the use of advanced composite materials, such as nanocomposites and high-performance fibers, which offer superior strength-to-weight ratios and thermal properties. These materials could enable the construction of even lighter and more protective fairings, allowing for larger payloads and more ambitious missions.
Another avenue of development is the integration of smart technologies into the fairing design. Embedded sensors and monitoring systems could provide real-time data on the fairing’s performance during launch, allowing for improved analysis and optimization of future designs. Additionally, active control systems, such as shape-memory alloys or piezoelectric actuators, could be used to adapt the fairing’s shape or properties in response to changing flight conditions, further enhancing its protective capabilities.
Conclusion
Launch vehicle fairings are unsung heroes of the space industry, quietly performing their vital role in protecting payloads during the critical early stages of a mission. As the demand for access to space continues to grow, innovations in fairing design, materials, and reusability will be essential to support the expanding range of satellites, spacecraft, and exploration initiatives.
By continually pushing the boundaries of fairing technology, the space industry can ensure the safe and reliable delivery of payloads to their intended destinations, enabling the continued growth and advancement of our space-based infrastructure and our understanding of the universe beyond Earth.
