Spaceports serve as the essential gateway for accessing space, enabling the launch of satellites, spacecraft, and human missions into the final frontier. As the commercial space industry continues to grow and evolve, the importance of robust and efficient spaceport infrastructure has become increasingly apparent. This article provides an in-depth exploration of the various types of infrastructure found at spaceports worldwide, as well as a detailed look at the specific facilities and capabilities of FAA-approved spaceports in the United States.
Types of Spaceport Infrastructure

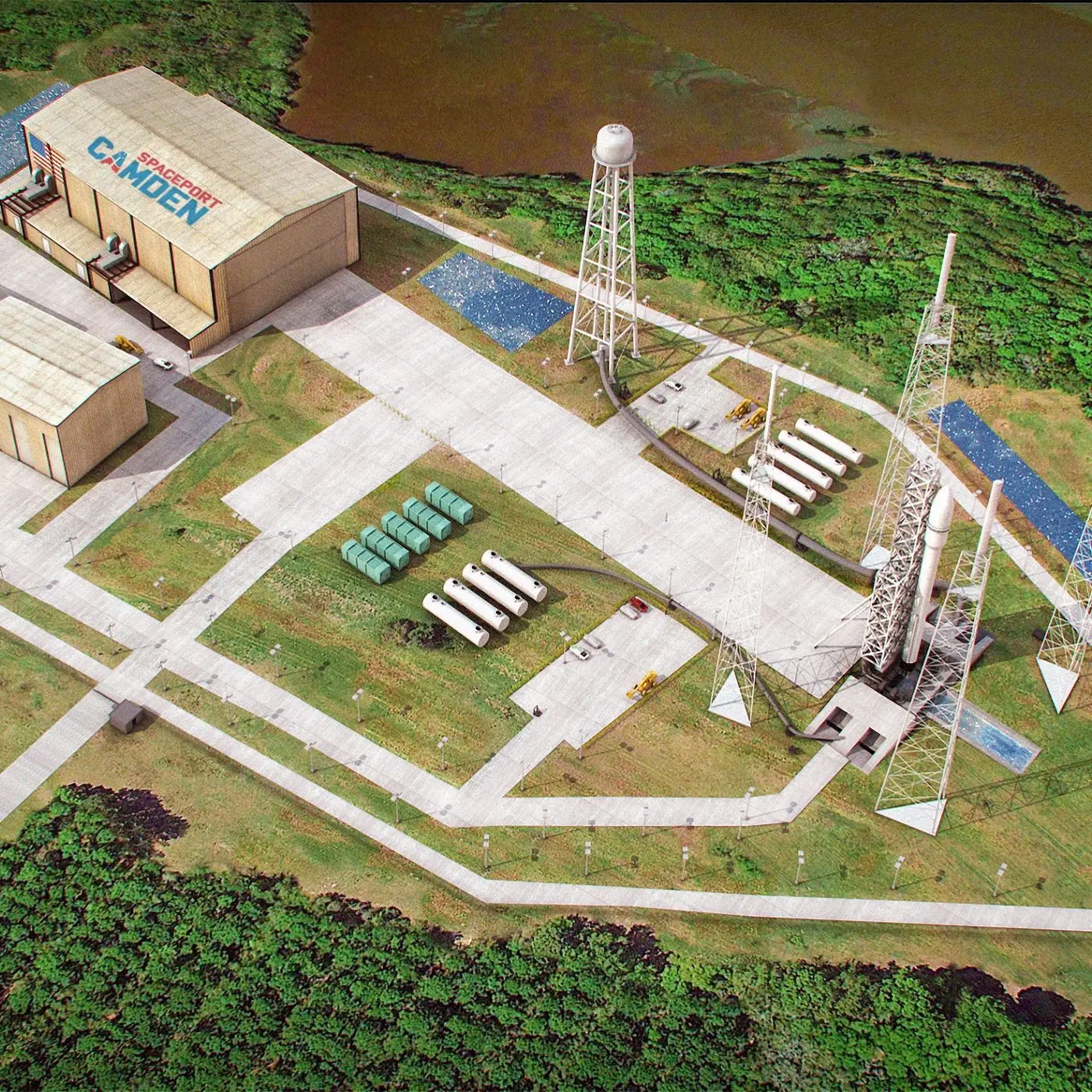

Launch Pads and Complexes
Launch pads and complexes form the core of any spaceport’s infrastructure. These specialized facilities are designed to withstand the intense forces, heat, and vibrations generated during rocket launches.
Key components of a launch pad include:
- Reinforced concrete pad to support the weight of the rocket and provide a stable launch platform
- Flame trench and deflector to divert exhaust away from the rocket and pad structures
- Propellant storage tanks and lines to fuel the rocket
- Umbilical tower to provide power, data, and propellant connections to the rocket
- Water deluge system for sound suppression and cooling during liftoff
- Lightning protection towers
The design and configuration of launch pads can vary depending on the types of rockets and missions they support. Some pads are optimized for vertical launches of large vehicles like the Saturn V or SLS, while others accommodate smaller rockets or support horizontal takeoffs of winged vehicles.
Vehicle Assembly and Integration Facilities
Before a rocket can be launched, it must be carefully assembled and integrated with its payload. Spaceports feature large hangars and clean rooms where these critical operations take place.
Vehicle Assembly Buildings (VABs) provide a controlled environment for stacking rocket stages, attaching fairings, and integrating satellites or spacecraft. These facilities are equipped with:
- Overhead cranes and access platforms for lifting and accessing rocket components
- Specialized tools and equipment for precision assembly
- Environmental control systems to maintain temperature, humidity, and cleanliness
- Lighting and power systems to support around-the-clock operations
Clean rooms within the VABs maintain strict particulate control to ensure the integrity of sensitive payloads like satellites, space telescopes, and interplanetary probes. These rooms are classified according to the maximum allowable concentration of airborne particles.
Payload Processing Facilities
In addition to vehicle assembly, spaceports also have dedicated facilities for processing and preparing payloads prior to integration with the rocket. Payload processing facilities typically include:
- Clean rooms for final assembly, testing, and checkout of payloads
- Specialized equipment for handling and transporting sensitive hardware
- Fueling stations for loading propellants and pressurants
- Offices and labs for payload engineers and technicians
These facilities must meet stringent cleanliness and environmental control standards to protect delicate instruments and ensure mission success. Payloads are often processed in parallel with the rocket to streamline the launch timeline.
Range Control and Tracking Infrastructure
Ensuring the safety and success of each launch requires sophisticated range control and tracking capabilities. Spaceports are equipped with extensive ground station networks to monitor and communicate with rockets and payloads during all phases of flight.
Key components of the range infrastructure include:
- Radar systems to track the position and trajectory of the rocket
- Telemetry antennas to receive data on the health and status of onboard systems
- Command uplink systems to send instructions to the rocket’s flight computer
- Optics and infrared sensors to monitor the rocket visually during ascent
- Range safety systems to destroy the rocket if it veers off course
The range control center serves as the nerve center for launch operations, housing consoles for the various tracking and communication systems. It maintains constant contact with the launch team and the rocket to ensure a safe and successful mission.
Radar Stations
Radar is the primary tool for tracking rockets and ensuring they remain on a safe trajectory. Spaceports employ a variety of radar systems operating at different frequencies and power levels to paint a comprehensive picture of the flight path.
- C-band radars provide long-range tracking and are the workhorses of the range network
- X-band radars offer higher resolution for more precise tracking during the early phases of flight
- S-band radars are used for tracking and command uplink to the rocket’s onboard receivers
Radar stations are strategically located along the range to maintain continuous coverage as the rocket arcs downrange. The data from these stations is fed back to the range control center for real-time monitoring and analysis.
Telemetry Stations
Telemetry is the lifeblood of any rocket launch, providing a constant stream of data on the health and performance of onboard systems. Spaceports have a network of telemetry antennas to receive this data during all phases of flight.
- S-band antennas are the primary means of receiving telemetry from the rocket and payload
- C-band antennas provide a backup link and can also transmit commands to the rocket
- UHF antennas are used for receiving data from sounding rockets and other small payloads
Telemetry data is relayed back to the launch control center where engineers monitor the status of the rocket’s engines, guidance system, and other critical components. This data is essential for identifying any anomalies and ensuring the mission remains on track.
Optical Tracking
In addition to radar and telemetry, spaceports also employ optical tracking systems to monitor the rocket visually during ascent. High-resolution cameras and infrared sensors provide valuable data on the rocket’s trajectory and any debris or other anomalies.
- Long-range tracking telescopes capture detailed images of the rocket as it climbs through the atmosphere
- Infrared cameras detect the heat signature of the exhaust plume and can spot any debris or other objects in the vicinity of the rocket
- High-speed video cameras provide slow-motion playback for detailed analysis of key events like stage separation and payload deployment
Optical tracking data is used in conjunction with radar and telemetry to give the range safety team a comprehensive understanding of the rocket’s behavior and performance.
Propellant Storage and Handling Systems
Many rockets rely on liquid propellants such as liquid oxygen and kerosene or hydrogen. These cryogenic fluids must be stored and transferred to the rocket under carefully controlled conditions.
Spaceports have specialized propellant storage and handling facilities including:
- Insulated storage tanks to maintain the propellants at extremely low temperatures
- Pipelines and transfer lines to move the propellants from the storage area to the launch pad
- Pumps and compressors to transfer and pressurize the propellants
- Gas generators and heat exchangers to condition the propellants prior to loading
- Safety systems to detect leaks and prevent hazardous conditions
Propellant loading operations are a critical part of the countdown and are closely coordinated with the launch team. Fueling typically begins several hours before liftoff, with the exact timing depending on the type of propellant and the specific needs of the mission.
Horizontal Integration Facilities
While many rockets are assembled vertically on the launch pad, some spaceports also have facilities for horizontal integration. In this approach, the rocket stages and payload are mated while lying on their side in a hangar, before being transported to the pad and erected for launch.
Horizontal integration offers several advantages over vertical stacking, including:
- Easier access to the rocket and payload for final assembly and checkout
- Reduced weather exposure and risk of damage during transport to the pad
- Faster integration timeline since the rocket can be assembled in parallel with pad operations
- Compatibility with air-launched systems that are carried to altitude by a carrier aircraft
However, horizontal integration also requires specialized infrastructure such as:
- Rail tracks or road transport to move the integrated rocket from the hangar to the pad
- Erector mechanisms to raise the rocket to a vertical position at the pad
- Strongback structures to support the weight of the rocket during lifting operations
- Mobile access towers to provide crew and equipment access to the rocket once vertical
The choice between vertical and horizontal integration depends on the specific needs of the rocket system and the capabilities of the spaceport. Many modern spaceports support both approaches to provide maximum flexibility.
Launch Control Centers
The launch control center (LCC) is the nerve center for all launch operations. This facility houses the consoles, displays, and communication equipment needed to monitor and control every aspect of the countdown and liftoff.
Key components of the LCC include:
- Consoles for each of the primary launch disciplines such as range control, propulsion, avionics, and ground systems
- Large video walls to display telemetry data, radar tracks, and live views of the rocket and pad
- Voice communication systems to coordinate the launch team and relay status to management and customers
- Secure data networks to interface with the range instrumentation and other facilities
- Backup power and life support systems to ensure uninterrupted operations
During the countdown, the launch director and controllers work through a carefully choreographed sequence of events to prepare the rocket and range for liftoff. This includes activating and testing the various range tracking and communication systems, clearing the hazard areas around the pad, and monitoring the health and status of the rocket and payload.
As the countdown approaches zero, the launch director polls the team for final status checks and makes the decision to proceed with liftoff. Once the rocket is released, control is handed off to the range safety and flight control teams who monitor the ascent and ensure the mission objectives are met.
Meteorological and Environmental Monitoring
Successful launches require careful consideration of weather and environmental conditions. Spaceports have extensive meteorological and environmental monitoring infrastructure to provide real-time data on factors such as:
- Wind speed and direction at various altitudes
- Temperature, humidity, and pressure
- Cloud cover and visibility
- Lightning activity and other electrical phenomena
- Air quality and atmospheric composition
This data is collected from a network of weather sensors, radar systems, and satellite feeds, and is analyzed by a team of meteorologists and environmental specialists. The launch weather officer uses this information to determine if conditions are acceptable for liftoff and to provide briefings to the launch director and other key decision makers.
In addition to monitoring conditions at the launch site, the weather team also keeps a close eye on downrange weather patterns that could affect the rocket’s trajectory or the recovery of any reusable components. This includes tracking upper-level winds, monitoring for severe weather, and predicting the splash down location for any jettisoned stages or payload fairings.
Safety and Emergency Response Facilities
Given the inherent risks associated with rocket launches, spaceports must have robust safety and emergency response capabilities. This includes:
- Fire suppression systems to extinguish any fires on the pad or in surrounding areas
- Hazardous material handling equipment and personnel to deal with any propellant spills or leaks
- Blast-resistant shelters to protect pad crews in the event of an explosion or other anomaly
- Medical facilities and personnel to treat any injuries or illnesses
- Evacuation routes and procedures to quickly clear the area in an emergency
The safety team works closely with the launch team to identify and mitigate any potential hazards during the countdown and liftoff. This includes monitoring the pad and surrounding areas for any signs of trouble, such as propellant leaks or abnormal temperatures, and taking immediate action to safe the system if necessary.
In the event of a major anomaly or accident, the spaceport’s emergency response teams are trained to quickly secure the area, extinguish any fires, and treat any injured personnel. They also coordinate with local and state authorities to manage any off-site impacts and keep the public informed of the situation.
Visitor and Media Facilities
Many spaceports have facilities dedicated to hosting visitors and media representatives during launches. These can include:
- Viewing areas and bleachers to allow the public to witness the liftoff from a safe distance
- Press centers and briefing rooms for media interviews and updates
- Museums and educational exhibits to showcase the history and technology of spaceflight
- Gift shops and concessions to provide souvenirs and refreshments for guests
These facilities are an important part of the spaceport’s public outreach and education efforts, helping to build excitement and support for the space program. They also provide a valuable source of revenue for the spaceport, with many visitors paying for tours, special events, and launch viewing packages.
Managing the flow of visitors and media during a launch requires careful planning and coordination with the spaceport’s security and operations teams. This includes setting up checkpoints and access controls, providing transportation and escort services, and ensuring that all guests follow safety protocols and stay within designated areas.
FAA-Approved Spaceports in the United States
Spaceport America
Located in New Mexico, Spaceport America is the world’s first purpose-built commercial spaceport. Its key infrastructure includes:
- A 12,000 ft. spaceway (runway) for horizontal launches
- Vertical launch pads
- A 47,000 sq. ft. terminal hangar facility
- Dedicated payload processing facilities
- A state-of-the-art mission control center
Spaceport America’s primary tenant is Virgin Galactic, which plans to use the facility for its suborbital space tourism flights.
Cape Canaveral Spaceport
The Cape Canaveral Spaceport in Florida is one of the most iconic launch sites in the world. Its major infrastructure includes:
- Multiple active launch complexes, including LC-39A (used by SpaceX) and LC-41 (used by ULA)
- The Vehicle Assembly Building (VAB), one of the largest buildings in the world
- Payload processing facilities and clean rooms
- The Launch Control Center and range assets
- The Shuttle Landing Facility, a 15,000 ft. runway for horizontal launches and landings
Cape Canaveral is used by both government and commercial customers, with a focus on missions to low Earth orbit and beyond.
Mid-Atlantic Regional Spaceport (MARS)
The Mid-Atlantic Regional Spaceport (MARS) is located at NASA’s Wallops Flight Facility in Virginia. Its key infrastructure includes:
- Launch Pad 0A for medium-class rockets like Northrop Grumman’s Antares
- Launch Pad 0B for small-class rockets
- Payload processing facilities and integration areas
- Range control and tracking assets
MARS has hosted launches for NASA, NOAA, and commercial customers, with a focus on resupply missions to the International Space Station.
Pacific Spaceport Complex – Alaska (PSCA)
The Pacific Spaceport Complex – Alaska (PSCA) is located on Kodiak Island and offers unique capabilities for polar and sun-synchronous orbits. Its infrastructure includes:
- Launch Pad 1 for small to medium-lift rockets
- Launch Pad 2 for solid and liquid-fueled vehicles
- Payload processing facilities
- Range safety and telemetry systems
PSCA’s remote location and clear downrange corridor make it an attractive option for commercial and government customers.
Mojave Air and Space Port
The Mojave Air and Space Port in California is a multi-use facility supporting a variety of aerospace activities. Its infrastructure includes:
- Three runways, the longest measuring 12,500 ft.
- Rocket test stands and launch pads
- Aircraft hangars and storage facilities
- Fuel storage and handling equipment
Mojave has been the site of several historic milestones, including the first private spaceflight by SpaceShipOne in 2004.
Other FAA-Approved Spaceports
In addition to the spaceports detailed above, several other locations have received FAA approval for commercial launches:
- Oklahoma Air and Space Port
- Midland International Air and Space Port (Texas)
- Colorado Air and Space Port
- Cecil Spaceport (Florida)
- Houston Spaceport (Texas)
While these sites have not yet hosted orbital launches, they are actively pursuing opportunities in the commercial space industry.
The Future of Spaceport Infrastructure
As the commercial space industry continues to grow and evolve, so too will the infrastructure requirements for spaceports. Future spaceports will need to be designed with flexibility and scalability in mind, able to accommodate a wide range of vehicles and mission types.
One key area of focus will be the development of multi-use infrastructure that can support both vertical and horizontal launches. This will allow spaceports to attract a broader range of customers and adapt to changing market demands. Spaceports of the future will likely feature modular, reconfigurable facilities that can be quickly adapted to support different vehicle types and payload processing requirements.
Another important consideration will be the integration of advanced technologies to streamline operations and improve safety. This may include the use of autonomous systems for vehicle processing and pad operations, as well as advanced range safety systems that leverage artificial intelligence and machine learning. By automating routine tasks and leveraging data analytics, spaceports can increase their efficiency and reduce costs while maintaining a high level of safety.
Sustainability and environmental responsibility will also be critical factors in the design and operation of future spaceports. This will involve the use of renewable energy sources, such as solar and wind power, to reduce the carbon footprint of launch operations. Spaceports may also incorporate advanced waste management systems and environmental monitoring technologies to minimize their impact on local ecosystems.
In addition to these technical considerations, the spaceports of the future will also need to be designed with the user experience in mind. This may include the development of modern, comfortable facilities for passengers and crew, as well as amenities such as viewing areas, museums, and educational exhibits. By creating a welcoming and engaging environment, spaceports can help to build public support for the space industry and inspire the next generation of scientists, engineers, and explorers.
Finally, the spaceports of the future will need to be fully integrated into the broader transportation network, with seamless connections to other modes of travel such as airports, seaports, and rail systems. This will enable the efficient movement of people, cargo, and equipment to and from the spaceport, reducing costs and improving access to space.
Summary
The infrastructure of spaceports plays a vital role in enabling access to space and supporting the growth of the commercial space industry. From launch pads and payload processing facilities to range safety and environmental monitoring systems, these specialized facilities provide the backbone for space missions.
As the demand for commercial launches continues to increase, investment in spaceport infrastructure will be essential to ensure safe, efficient, and cost-effective access to space. By designing spaceports with flexibility, sustainability, and the user experience in mind, we can create a robust and resilient space transportation network that will support the industry for decades to come.
