The N1 rocket, known in Russian as “Ракета-носитель”, which translates to “Rocket-carrier”, was the Soviet Union’s massive heavy-lift launch vehicle developed in the 1960s with the ultimate goal of sending Soviet cosmonauts to the Moon. As the Soviet counterpart to NASA’s Saturn V rocket, the N1 represented the USSR’s greatest effort to win the Space Race and demonstrate Soviet technological prowess. However, plagued by technical issues, mismanagement, and a lack of adequate funding and political support, the N1 never achieved a successful launch and was eventually canceled, along with the Soviet crewed lunar program, in 1974.
Origins and Development
The origins of the N1 rocket date back to the late 1950s, when the Soviet Union began early conceptual studies on a series of large rockets known as the N-series, under the leadership of the famed Chief Designer Sergei Korolev. The largest of these planned rockets was the N1, envisioned as a heavy-lift vehicle for launching military space stations and deep space crewed missions.
However, it wasn’t until 1964, when the Soviet leadership made the decision to attempt to beat the United States to a crewed lunar landing, that the N1 was purpose-built as a Moon rocket. This put the N1 program significantly behind the Saturn V in development, as NASA had already been working on their Moon rocket for several years at that point.

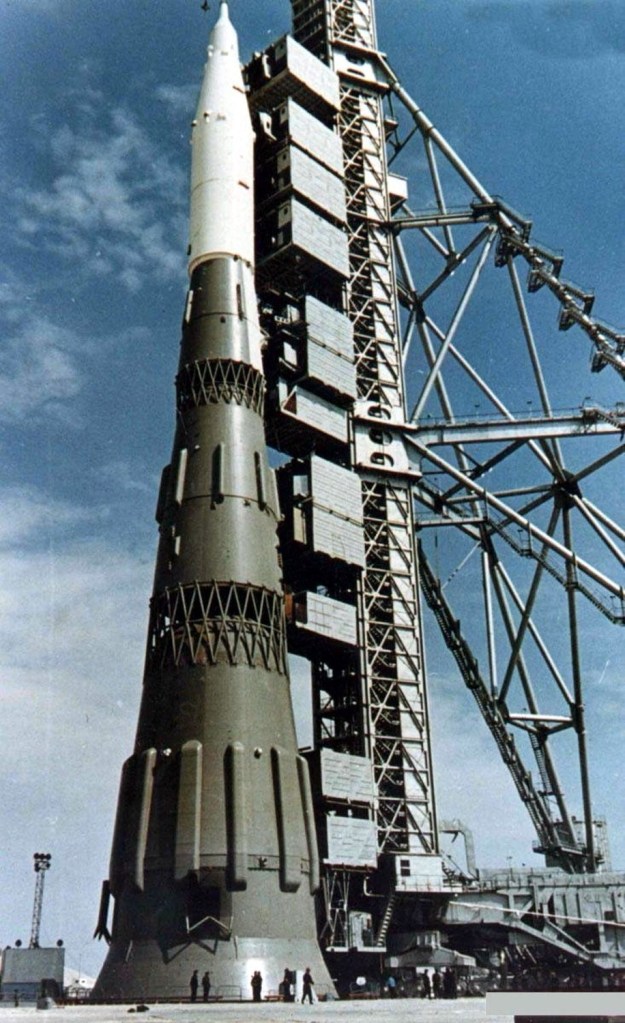

Korolev’s design for the N1 called for a massive, 105 meter tall, 2.7 million kilogram fully-fueled rocket with five stages. The first stage, Block A, would be powered by a whopping 30 NK-15 rocket engines working in unison to produce the 44,000 kN of thrust required to lift the behemoth off the pad. These staged-combustion cycle engines were a new and untested design.
The decision to use 30 smaller engines instead of fewer larger ones like the Saturn V’s F-1 engines was driven by the fact that the Soviet Union did not have the industrial capacity to build bigger engines at the time. Clustering smaller engines together was seen as the only viable path to achieving the required thrust. However, this introduced significant complexities in plumbing, ignition sequencing, and ensuring even thrust across all 30 engines.
Atop the N1 rocket would sit the L3 lunar complex, consisting of a Block G translunar injection stage, the LOK (Lunniy Orbitalny Korabl) lunar orbiter, the LK (Lunniy Korabl) lunar lander, and an emergency escape system. This “direct ascent” mission profile differed from NASA’s lunar orbit rendezvous approach. The Soviets had originally considered using Earth orbit rendezvous with multiple N1 launches to assemble the lunar ship in orbit, but ultimately decided this was too complex.
The LOK orbiter was designed to carry two cosmonauts to lunar orbit and back to Earth, while a single cosmonaut would descend to the surface in the LK lander. Compared to the American Apollo Lunar Module, the LK was much smaller due to the N1’s more limited payload capacity versus the Saturn V. It had no legs, relying instead on a probe to detect contact with the lunar surface. A backup retrorocket on top would soften the landing if the probe failed.
Development of the N1 and L3 was led by Korolev’s design bureau OKB-1, but involved work across many other Soviet design bureaus and institutes. Building the giant rocket and its complex lunar systems at the same time was an enormous undertaking for the Soviet space program.
Political and Programmatic Challenges
From its inception, the N1-L3 program faced an uphill battle. In the early 1960s, the Soviet leadership under Nikita Khrushchev was not particularly interested in expending vast resources on a Moon race with the United States. Unlike the high-profile public announcements and strong political backing that NASA’s Apollo program enjoyed from President Kennedy and later President Johnson, the N1-L3 was pursued in relative secrecy without the same level of political commitment.
Korolev had to lobby hard for the program and secure resources piecemeal. Different design bureaus jealously guarded their own rocket engine designs and resisted collaboration. Rival Chief Designer Vladimir Chelomei pushed for his own UR-700 rocket design over Korolev’s N1.
When Khrushchev was ousted in 1964 and replaced by Leonid Brezhnev, the new Soviet leadership was more amenable to a lunar program, but still did not give it the same blank check that Apollo had. Funding improved but remained well below American levels, and the N1-L3 still had to compete for resources with the Soviet military space program and robotic lunar probes.
The Soviet space program was also handicapped by a more segregated and secretive organizational structure compared to NASA. While NASA had a unified command structure and could coordinate efforts across different centers, the Soviet program was fragmented across various design bureaus that were often in competition. Communication and technology sharing between these bureaus was limited.
All of these factors meant that the N1-L3 consistently lagged behind Apollo in development and funding. When the U.S. began test launching the Saturn V in 1967, the Soviets were still struggling to get the N1 ready for its first test flight. The sheer complexity of the N1, with its many engines and systems that had to work perfectly together on the first attempt, made it an enormous engineering challenge.
Challenges and Setbacks
From the beginning, the N1 program faced major technical and programmatic hurdles. When Sergei Korolev unexpectedly died during routine surgery in 1966, his successor Vasily Mishin inherited a program already struggling with delays and technical issues. Mishin lacked Korolev’s influence, political savvy and leadership ability, further compounding problems.
Developing the complex plumbing required to feed fuel and oxidizer to the 30 NK-15 engines in the first stage proved extremely challenging. The engines had to be precisely synchronized to ensure an even thrust distribution. If some engines lagged behind others in startup, it could cause instability and potentially catastrophic oscillations. Perfecting the ignition sequence and fuel flow balance took countless tests and modifications.
Unlike NASA’s Saturn V, which was built close to its Florida launch site, the N1 stages had to be transported by rail thousands of kilometers from their manufacturing plants to the Baikonur Cosmodrome launch site in Kazakhstan and assembled there. The logistical challenges of shipping the oversized stages and the inability to conduct full integrated testing prior to arrival at the pad added further complications and opportunities for error.
The NK-15 engines themselves proved highly unreliable, with a high failure rate in testing. Combustion instability problems, where uneven burning could create destructive pressure spikes, were a persistent headache that was never fully resolved. To save weight, the engines used pyrotechnic valves that could not be reopened once shut, meaning the entire cluster of 30 engines could not be test fired together prior to launch. Individual engines were test fired and had to be removed and replaced if issues were found, but how all 30 would perform together remained an open question.
Funding shortages also impacted the robustness of ground testing and contributed to development delays. The program was consistently underfunded compared to NASA’s effort. Unrealistic schedules, driven by the desire to beat Apollo to the Moon, further compromised the integrity of the testing and development process. Corners had to be cut and risks taken to try to maintain pace.
Quality control was another issue. The Soviet aerospace industry and its manufacturing processes were not as advanced as American industry at the time. While NASA could rely on a robust network of contractors practicing rigorous quality assurance, Soviet manufacturers were more uneven in their consistency. Minor flaws in components could have major consequences.
The high visibility and rushed schedule of the program also invited political meddling. Brezhnev and other Soviet leaders wanted regular reports of progress and would push for launches before the rocket was truly ready. Managers felt pressure to report only good news up the chain of command and downplay problems. This created an environment where issues could fester unaddressed until it was too late.
As the 1960s drew to a close with NASA achieving victory after victory with the Apollo program, the Soviets were falling further behind and struggling with a rocket that stubbornly refused to cooperate. The N1 program was in crisis, but the worst was yet to come.
Four Failed Launches
Between 1969 and 1972, four N1 rockets were launched from Baikonur, each carrying a functional or dummy L3 lunar complex payload. All four launches ended in catastrophic failure, dealing the program devastating setbacks:
N1 3L – February 21, 1969
The first N1 test launch got off to an inauspicious start. Telemetry indicated a fire had broken out in the Block A first stage about 70 seconds into the flight at an altitude of 12 km. The fire spread rapidly, burning through wiring and control lines. At 106 seconds, all telemetry abruptly ceased as the rocket exploded, raining debris across the Kazakh steppe. The emergency escape system had fired to pull the L3 complex to safety, but it was too late. The failure was traced to a loose bolt that had rattled into a fuel line, causing a leak and fire. It was an ominous sign of the quality control problems that would plague the program.
N1 5L – July 3, 1969
Desperate for a success to answer the impending Apollo 11 Moon landing, the Soviets rushed to prepare a second N1 for launch just days before the American mission. This rocket carried a live L3 complex with functional LOK and LK for the first time. As the giant rocket lifted off the pad shortly before midnight, things initially looked good. But at T+15 seconds, a bolt from a ruptured fuel pump shot through a propellant line, causing a massive leak. Seconds later, the spewing kerosene and liquid oxygen ignited, engulfing the base of the rocket in a fireball. The N1 listed over and slammed back onto the launch pad, its remaining propellant exploding in a tremendous blast. The launch complex was utterly destroyed and would take two years to rebuild. It was the worst disaster in the history of rocketry at the time. Coming just weeks before Apollo 11 triumphed, it was a crushing blow to Soviet lunar hopes.
N1 6L – June 27, 1971
By 1971, with the Apollo program winding down after achieving Kennedy’s goal, the Soviets made another attempt to launch the N1 and salvage some lunar glory. The rocket lifted off successfully, but about 51 seconds into the flight, a hydraulic failure caused the KORD engine control system to mistakenly shut down several engines. Now off balance and with asymmetric thrust, the rocket began to rotate. The KORD then shut down more engines in a futile effort to correct the roll, but it was too late. Aerodynamic forces tore the rocket apart as it cartwheeled through the sky and exploded. Another N1 had been lost, and the program was in serious jeopardy.
N1 7L – November 23, 1972
The final N1 launch was the most tantalizingly close to success. The rocket lifted off and flew well past the point of previous failures. But at T+107 seconds, a damaged propellant line burst, spilling kerosene onto the hot engine components. A fire rapidly spread through the first stage, leading to an explosion seven seconds later. The upper stages were ejected and crashed into the steppe a few kilometers from the pad. It was the last gasp for the ill-fated Soviet Moon rocket.
Cancellation and Legacy
The four consecutive failures of the N1 were a major embarrassment for the Soviet space program and a source of frustration for the Politburo. The success of the American Apollo landings had already diminished the propaganda value of a Soviet lunar mission. With the Moon race lost, the justification for continuing the expensive and trouble-plagued N1 program was wearing thin.
The Soviets briefly considered using the N1 to launch components for a series of large Salyut space stations, but the rocket’s poor reliability record made this a risky proposition. Developing the N1 into a dependable heavy-lift vehicle would require substantial additional time and resources that the Politburo was unwilling to commit.
The space program was instead directed to focus on near-Earth space stations, with the Salyut and later Mir programs becoming the main priorities. Robotic lunar and planetary probes like Lunokhod also continued, but crewed deep space missions were shelved indefinitely.
In 1974, the Politburo officially canceled the N1-L3 program. Work on the rocket was halted, and no more flight models would be built. The planned fifth and sixth launches, which would have carried improved N1F rockets with more powerful NK-33 and NK-43 engines, were scrapped. Most of the program’s engineers and managers were reassigned to other projects.
The chief designer of the N1, Vasily Mishin, who had struggled in Korolev’s shadow to make the rocket a success, was finally ousted in 1974 after the program’s cancellation. He was replaced by Valentin Glushko, a proponent of large hydrolox engines over the N1’s kerolox design. Glushko had long been a rival of Korolev and Mishin, and now he had his chance to lead the Soviet space program in a new direction.
Under Glushko, work began on a new series of modular rockets known as the Energia family, using large hydrolox boosters. This would eventually lead to the Energia-Buran system, a direct counterpart to the American Space Shuttle. But with the N1 consigned to history, the Soviet Union would never pursue its own crewed lunar landing again.
The N1’s legacy was one of squandered potential and missed opportunity. The largest rocket ever built by the Soviets, it had the capability to take cosmonauts to the Moon if it had worked as intended. But it fell victim to a confluence of technical, programmatic and political factors that doomed it to failure.
In the end, the N1 program consumed a significant chunk of the Soviet space budget and engineering talent in the 1960s for little return. It forced the Soviets to cede the Moon race to the Americans and eroded the USSR’s position in the Space Race. If the Soviets had developed the N1 earlier, or had the full political and financial backing that NASA’s Apollo program enjoyed, history may have turned out differently.
The N1 also highlighted the strengths and weaknesses of the Soviet approach to spaceflight and engineering. The Soviet space program excelled at fast-paced innovation and bold leaps into the unknown. But it often struggled with reliability, quality control, and careful incremental progress. The N1 was a highly complex system that was rushed into production and testing before it was truly ready, with disastrous results.
For years after its cancellation, the remains of the N1 program languished in storage at Baikonur. The abandoned N1 pads, littered with debris from the failed launches, stood as rusting monuments to a bygone era of Soviet spaceflight. Several of the unflown N1 boosters were cut up and repurposed into storage sheds or scrapped entirely to cover up the failure.
In the 1990s, after the fall of the Soviet Union, the remaining NK-33 and NK-43 engines were resurrected and marketed to the West as a cost-effective option for new rockets. Some of these engines were eventually used on the Orbital Sciences Antares and other commercial launchers, giving the N1 a small but unexpected second life.
But the full story of the N1 remained shrouded in secrecy for decades. Only after the Soviet Union collapsed did details about the program slowly emerge. The veil of secrecy had hidden the scale of the N1 effort and the magnitude of its failure from the outside world.
Today, the N1 is remembered as a colossal and expensive failure, but also a remarkable feat of engineering that came tantalizingly close to success. Its story has inspired countless “what if” scenarios and alternate history musings. If it had worked as intended, would the Soviets have beaten the Americans to the Moon? How would that have changed the course of the Space Race and the Cold War?
These questions will forever remain unanswered, but the N1’s legacy endures as a cautionary tale and a reminder of the immense challenges of spaceflight. It stands as a testament to the ingenuity and determination of the Soviet space program, but also its ultimate limitations in the face of political and economic realities.
The N1 may have been a failure, but it was a glorious failure that pushed the boundaries of what was possible. Its story is one of grand ambitions and great tragedies, of brilliant engineers and flawed decisions, of triumphs and disasters. It is a story that will continue to fascinate and inspire for generations to come, a reminder of a time when two superpowers raced to the Moon and the future of spaceflight hung in the balance.
