In the annals of aerospace engineering, few machines are as iconic or impressive as the Rocketdyne F-1 rocket engine. Five of these colossal powerplants propelled the first stage of each Saturn V rocket, generating the immense thrust required to lift the Apollo spacecraft and its crew on journeys to another world. The F-1 remains the most powerful single-chamber liquid-fueled rocket engine ever built, a testament to the ingenuity and dedication of the engineers who designed and perfected it in the 1960s. The story of the F-1 is one of daunting technical challenges overcome through perseverance and brilliant problem-solving.
Origins and Specifications
The F-1 traces its origins back to 1955, when the U.S. Air Force funded a study by North American Aviation’s Rocketdyne division to design a single-chamber engine capable of generating one million pounds of thrust. This was an astounding figure at the time, as the most powerful rocket engines then in existence produced only around 150,000 pounds of thrust. In 1959, the recently-formed National Aeronautics and Space Administration (NASA) saw the potential of such an engine for its envisioned heavy-lift rockets and took over funding for the F-1’s development.

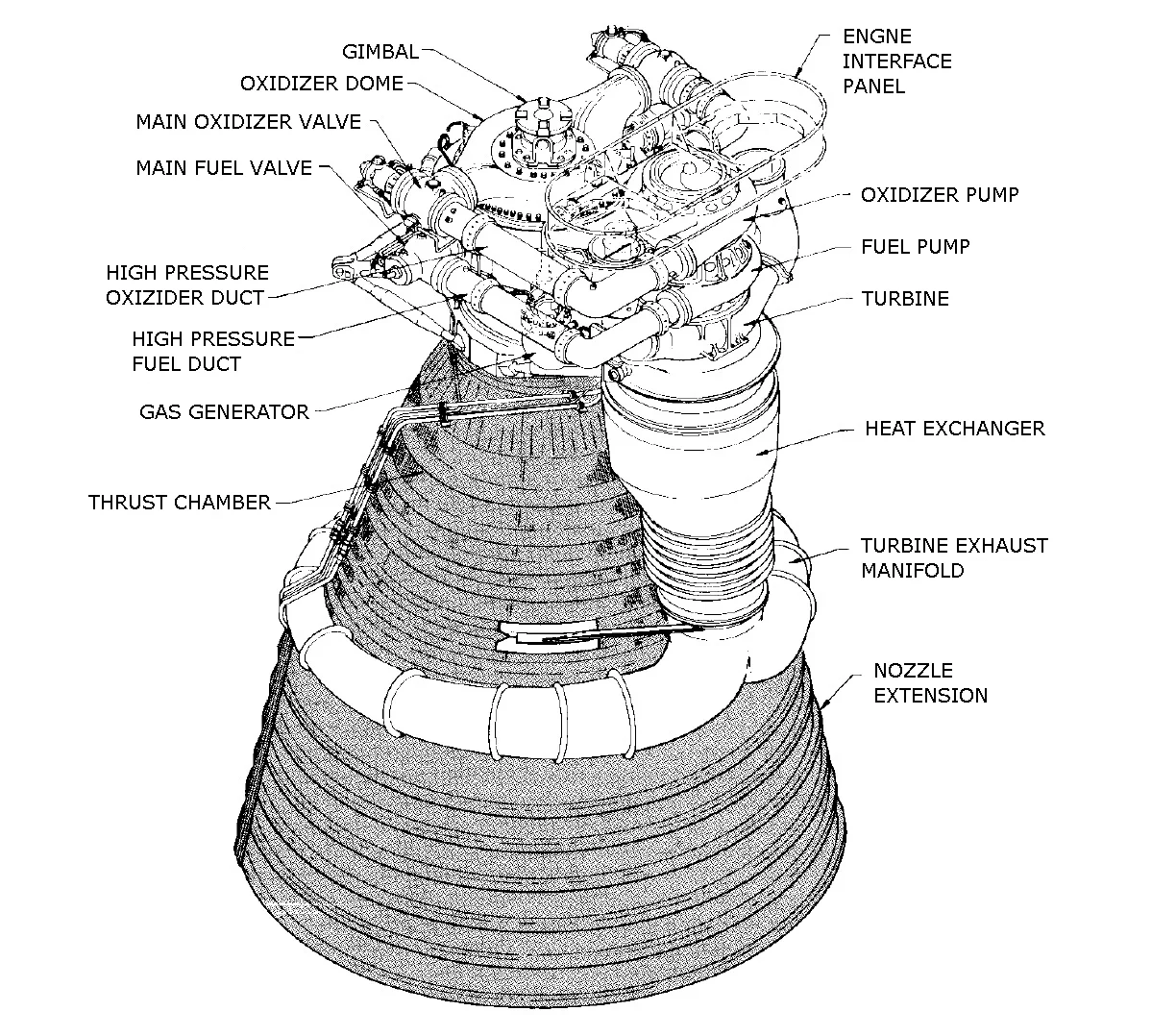

The final F-1 design was a gas-generator cycle engine that burned RP-1 rocket grade kerosene fuel and liquid oxygen (LOX) oxidizer in a single massive thrust chamber. Each engine stood 19 feet tall, measured 12.2 feet wide at the nozzle exit, and weighed over 18,500 pounds. The turbopump assembly alone was the size of a small car and generated 55,000 horsepower to pump fuel and oxidizer into the thrust chamber at a staggering flow rate of over 28,000 pounds per second. At full power, a single F-1 produced 1.5 million pounds of thrust at sea level, rising to 1.7 million pounds in the vacuum of space.
Combustion Instability Challenges
Perfecting the F-1 was an immense engineering challenge that pushed the boundaries of rocket engine technology. One of the most daunting hurdles was the problem of combustion instability – destructive pressure oscillations that could cause the engine to tear itself apart. Early F-1 tests ended in dramatic failures, with engines exploding on the test stand and spewing fire and debris. The combustion instability stemmed from uneven and erratic mixing of the fuel and oxidizer in the thrust chamber.
To solve this problem, Rocketdyne engineers experimented with different designs for the injector plate that sprayed fuel and oxidizer into the combustion chamber. They eventually hit upon a configuration using a series of concentric rings and baffles that promoted even propellant distribution and suppressed instabilities. This injector design, combined with meticulous tuning of the propellant mix ratios and flow rates, finally yielded an engine that could run stably at full power. The first successful full-duration test firing of five F-1 engines on a Saturn V first stage occurred in April 1965, a major milestone on the path to the Moon.
Turbopump Innovations
Another critical innovation that enabled the F-1’s unprecedented performance was its massive turbopump assembly. Rocket engines require turbopumps to inject propellants into the combustion chamber at high pressure in order to generate thrust. For the F-1, the turbopump had to deliver over 670 gallons of propellant per second while withstanding temperatures ranging from -300°F for the liquid oxygen to 1500°F for the hot turbine exhaust gas.
The F-1 turbopump was powered by a gas generator – essentially a small rocket engine that burned a fraction of the main propellants to drive a two-stage turbine. The turbine spun at nearly 5500 RPM, generating 55,000 horsepower – equivalent to over 40 megawatts of power. On the same shaft as the turbine were two centrifugal pumps – one for RP-1 fuel and one for LOX oxidizer. The pumps were incredible feats of precision engineering, able to withstand extreme thermal stresses, high rotational speeds, and fluid pressures of up to 1500 pounds per square inch.
To lubricate and cool the turbopump bearings, Rocketdyne engineers devised a clever system that tapped high-pressure RP-1 fuel from the pump outlet. The fuel was circulated through the bearings and then injected into the gas generator, capturing its remaining energy content. This approach eliminated the need for a separate lubrication system and helped make the F-1 turbopump one of the most power-dense pumping systems ever built.
Regenerative Cooling
Managing the intense heat generated by the F-1’s combustion process was another key challenge. The engine’s nozzle and combustion chamber walls experienced temperatures up to 5800°F, far beyond the melting point of any available material. To address this issue, Rocketdyne engineers used a regenerative cooling system.
In this system, RP-1 fuel was circulated through hundreds of thin-walled tubes braised to the outside of the thrust chamber and nozzle. As the fuel flowed through these tubes, it absorbed heat from the chamber walls, keeping them from melting. The heated fuel was then injected into the combustion chamber. This regenerative approach not only solved the cooling problem but also improved engine efficiency by preheating the fuel.
The F-1’s nozzle was also extended using a novel method. The upper part of the nozzle was regeneratively cooled, but the lower part was too large in diameter to be cooled in the same way. Instead, the lower nozzle extension was made of high-temperature Inconel alloy and was film-cooled by injecting exhaust gas from the turbine along its inner wall. This gas formed a protective cooler boundary layer that kept the nozzle extension from overheating.
Engine Control System
Controlling and monitoring the F-1 engine was the job of the engine control system. This included a complex array of valves, sensors, and electrical components that regulated propellant flows, monitored engine health, and sequenced the engine start and shutdown procedures.
The F-1 used an open-loop control system, meaning the engine’s thrust could not be throttled or adjusted in flight. Instead, the control system was “set” before launch to deliver a specific thrust level. Igniters in the gas generator and main combustion chamber were triggered by the control system to start the engine in a carefully timed sequence. Sensors monitored key parameters like turbopump shaft speed, combustion chamber pressure, and propellant flow rates. If any parameter deviated outside acceptable limits, indicating a problem, the control system would command an engine shutdown to prevent a catastrophic failure.
While not as flexible as modern closed-loop engine control systems, the F-1’s control system proved highly reliable. The F-1 never experienced a failure during an Apollo mission, testament to the robustness of its design.
F-1 Improvements and Successors
Even as the F-1 was being readied for Apollo missions in the mid-1960s, Rocketdyne engineers were working on improvements and potential successors. The clearest example was the F-1A engine, which incorporated numerous design refinements to boost thrust to 1.8 million pounds and introduce a limited throttling capability.
The F-1A, however, never flew. Plans to use it on post-Apollo rockets like the Saturn INT-20 and Nova were shelved as NASA’s priorities shifted. Later proposals, like the Saturn-derived Comet HLLV studied in the 1990s, would also have used updated F-1 engines. But changing space policy and the end of the Saturn production line meant these rockets never left the drawing board.
More recently, there has been renewed interest in the F-1 as a potential engine for future heavy-lift vehicles. In 2013, NASA engineers disassembled and studied an F-1 engine in detail as part of the Space Launch System (SLS) program. Private firms like Dynetics and Aerojet Rocketdyne have also explored “F-1B” designs that would use modern manufacturing techniques and materials to reduce cost and complexity while preserving the engine’s prodigious power.
Legacy and Conclusion
The F-1 rocket engine stands as one of the most impressive feats of engineering from the Apollo era. Its groundbreaking design and sheer power were instrumental in enabling humanity’s first voyages to another world. While the F-1 last flew in 1973, its legacy and influence can still be seen in the heavy-lift rockets of today and tomorrow.
The technical challenges overcome by the F-1’s designers, from taming combustion instability to building the world’s most powerful turbopump, pushed the boundaries of what was thought possible. The F-1 demonstrated that with enough ingenuity and perseverance, even the most daunting engineering hurdles could be surmounted. It remains an enduring symbol of the Apollo program’s scale and ambition.
As NASA and private space firms chart a course for a return to the Moon and voyages beyond, the F-1 serves as an inspiring reminder of what can be achieved when brilliant minds are focused on a monumental goal. While today’s rockets may use different propellants or engine cycles, they build on the legacy of titanic engines like the F-1. For as long as humans venture into space, the F-1 will be remembered as a machine that helped make the impossible possible.
