The quest for space exploration has always been hindered by the limitations of traditional space travel methods. The immense distances involved and the need for vast amounts of propellant have made missions costly and complex.However, the concept of a space transportation infrastructure supported by propellant depots, as detailed in the research papers “Space Transportation Infrastructure Supported By Propellant Depots” (Smitherman & Woodcock, 2011) and its subsequent presentation (Smitherman, 2012), offers a visionary solution to these challenges. By establishing refueling stations in space, this infrastructure has the potential to revolutionize space exploration, making it more sustainable,affordable, and accessible.
The Propellant Conundrum
Traditional space missions rely heavily on expendable launch vehicles, which carry not only the payload but also the vast majority of the propellant required for the mission. The authors highlight that approximately 98.5% of the mass of historical launch vehicles, such as the Saturn V, was dedicated to propellant and propulsion systems. This approach is inherently inefficient, as a significant portion of the launch vehicle’s mass is dedicated to propellant and propulsion systems, leaving limited room for the actual payload. The concept of propellant depots aims to address this inefficiency by establishing refueling stations in space, allowing spacecraft to replenish their propellant reserves and extend their mission capabilities.
The Depot Network

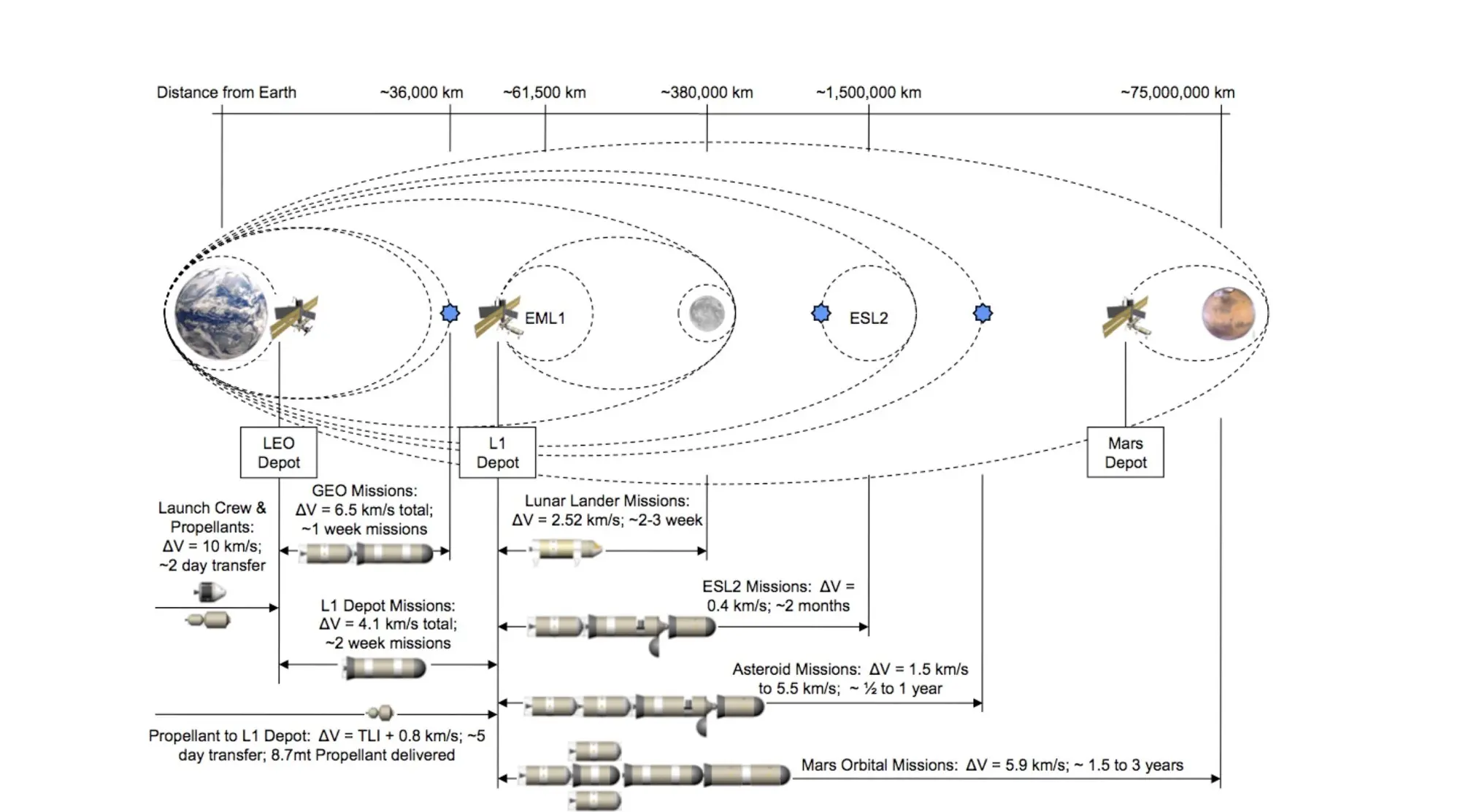

The proposed space transportation infrastructure envisions a network of propellant depots strategically located at various points in space. The initial focus is on establishing depots in Low Earth Orbit (LEO) and at the Earth-Moon Lagrange Point 1 (L1). The LEO depot would serve as a crucial hub for missions to Geosynchronous Earth Orbit (GEO) and for transferring propellant and cargo to the L1 depot. The L1 depot, situated at a gravitationally stable point between the Earth and the Moon, would act as a gateway for missions to the lunar surface, Earth-Sun L2 (ESL2), asteroids, and Mars.The depots themselves would be modular and expandable, utilizing heritage hardware from the International Space Station (ISS) to ensure reliability and cost-effectiveness.
Reusable Space Vehicles: The Key to Sustainability
The propellant depot infrastructure would support a fleet of reusable in-space vehicles, designed to minimize the need for expendable components and reduce the overall cost of space missions. These vehicles would include:
- Crew Transfer Vehicle (CTV): The CTV would be responsible for transporting crew between the LEO depot, the L1 depot, and destinations beyond L1. It would be designed for aerocapture maneuvers, allowing it to be launched without a payload fairing and facilitating docking at various locations. The CTV would also feature a payload bay for transporting cargo and could potentially accommodate a human free-flyer vehicle for servicing other spacecraft in space.
- Lunar Lander: This reusable vehicle would transport crew between the L1 depot and the lunar surface. It would be designed for horizontal landing and liftoff, eliminating the need for a separate ascent stage, a feature that significantly streamlines the vehicle’s design and operation. The Lunar Lander could also be adapted for cargo missions by removing the crew cabin and attaching a payload support structure, showcasing the versatility and adaptability of the proposed vehicles.
- Deep Space Habitat (DSH): The DSH would be a module designed to support crew missions from the L1 depot to ESL2, asteroids, and Mars. It would be based on ISS module technology, leveraging proven systems and reducing development risks. The DSH would feature docking ports, an internal airlock, and various life support systems necessary for long-duration missions. It would be available in different sizes to accommodate varying crew sizes and mission durations, further emphasizing the adaptability of the infrastructure.
- Reusable Upper Stage (RUS): The RUS would be a versatile vehicle used for various tasks, including boosting payloads to higher orbits and supporting cargo deliveries. It would be equipped with a docking adapter for propellant transfer and could be configured with aerocapture features for return from higher-energy orbits,increasing its reusability and reducing mission costs.
Expanding Mission Capabilities
The propellant depot infrastructure would enable a wide range of missions, expanding our reach into the cosmos and unlocking new opportunities for scientific discovery and economic development.
- Satellite Servicing: The LEO depot would serve as a base for servicing and maintaining satellites in GEO,extending their operational lifespan and reducing the need for costly replacements. This capability would be particularly valuable for government and commercial satellites, ensuring the continued availability of critical communication and navigation services. The ability to service satellites in orbit could also lead to the development of more modular and upgradeable satellite designs, further reducing costs and increasing flexibility.
- Lunar Exploration: The L1 depot and the reusable Lunar Lander would facilitate frequent and sustainable missions to the lunar surface. This would enable in-depth scientific research, including the study of lunar geology,the search for water ice, and the investigation of potential resources. The infrastructure could also support the establishment of a permanent human presence on the Moon, paving the way for future lunar settlements and resource utilization. The reusability of the Lunar Lander would be a key enabler for these endeavors, significantly reducing the cost and logistical complexity of lunar missions.
- Deep Space Missions: The L1 depot would also support missions to ESL2, a prime location for space telescopes and observatories. These missions would enable groundbreaking astronomical observations and contribute to our understanding of the universe. Additionally, the infrastructure would facilitate missions to near-Earth asteroids,offering opportunities for scientific study and the potential extraction of valuable resources such as water, metals,and rare earth elements. The DSH, with its adaptable design and life support systems, would be crucial for these long-duration missions.
- Mars Missions: The infrastructure would include a Mars Orbital Depot, serving as a refueling and staging point for missions to the Martian surface. This depot would enable the use of reusable Mars Landers, which could be refueled with propellant produced on Mars, significantly reducing the cost and complexity of Martian exploration.The long-term goal would be to establish a sustainable human presence on Mars, leveraging in-situ resource utilization and advanced technologies. The propellant depot infrastructure would provide the necessary logistical support for these ambitious endeavors.
Affordability and Sustainability: The Economic Imperative
One of the key advantages of the propellant depot infrastructure is its potential for affordability and sustainability. By utilizing reusable vehicles and minimizing the need for expendable components, the recurring cost of space missions could be significantly reduced. The ability to refuel spacecraft in space would also enable longer and more ambitious missions, maximizing the scientific and economic return on investment.
The development of the propellant depot infrastructure could be phased in over time, allowing for incremental progress within constrained budgets. This approach would mitigate the risk of large upfront costs and ensure that the infrastructure evolves in line with technological advancements and mission requirements. The authors suggest that the incremental development of this infrastructure could follow a similar path to the International Space Station, which was assembled in space over several years, allowing for a more manageable and sustainable budget.
The Space Launch System: A Powerful Enabler
The Space Launch System (SLS), a powerful heavy-lift launch vehicle, could play a crucial role in the development and operation of the propellant depot infrastructure. The SLS’s increased payload capacity would enable the delivery of larger payloads and propellant quantities to the depots in fewer launches, further enhancing the efficiency and cost-effectiveness of the infrastructure. The integration of the SLS into the propellant depot concept could significantly reduce the number of launches required for various missions, from lunar missions to Mars missions, making them more logistically feasible and economically viable.
Collaboration and Innovation: The Path Forward
The development and implementation of the propellant depot infrastructure would require collaboration between government agencies, private companies, and international partners. This collaborative approach would leverage the expertise and resources of various stakeholders, fostering innovation and accelerating progress. The authors emphasize the importance of creating a competitive contracting environment for propellant launches and other services, which could stimulate the development of new reusable launch vehicle systems and further drive down costs.
The establishment of a LEO depot to support satellite servicing and future commercial and exploration missions would be a crucial first step. This would be followed by the expansion to the L1 depot, enabling missions to the Moon, ESL2,asteroids, and Mars. The infrastructure would evolve over time, incorporating new technologies and capabilities as they become available. The authors also highlight the potential benefits of exploring alternative depot locations, such as Earth-Moon L2, and further developing technologies for on-orbit cryogenic propellant storage and transfer.
Summary
The concept of a space transportation infrastructure supported by propellant depots represents a bold and visionary approach to space exploration. By addressing the propellant challenge and enabling the use of reusable vehicles, this infrastructure has the potential to transform our ability to explore the cosmos, making it more sustainable, affordable, and accessible. Through collaboration, innovation, and a phased approach to development, this vision could become a reality,ushering in a new era of space exploration and discovery. The propellant depot infrastructure could pave the way for groundbreaking scientific research, resource utilization, and the eventual establishment of a permanent human presence beyond Earth, fulfilling humanity’s long-held dream of becoming a multi-planetary species.
