Introduction
The Commercial Crew Transportation Capability (CCtCap) contract between Boeing and NASA represents a significant milestone in the ongoing development of human spaceflight capabilities, specifically for missions to the International Space Station (ISS). This contract is part of NASA’s Commercial Crew Program (CCP), which aims to provide the United States with a reliable, safe, and cost-effective commercial space transportation system, reducing reliance on international partners. Through this partnership, Boeing is tasked with designing, developing, testing, and certifying a Crew Transportation System (CTS) that will meet NASA’s requirements and standards for crewed missions to and from low Earth orbit.

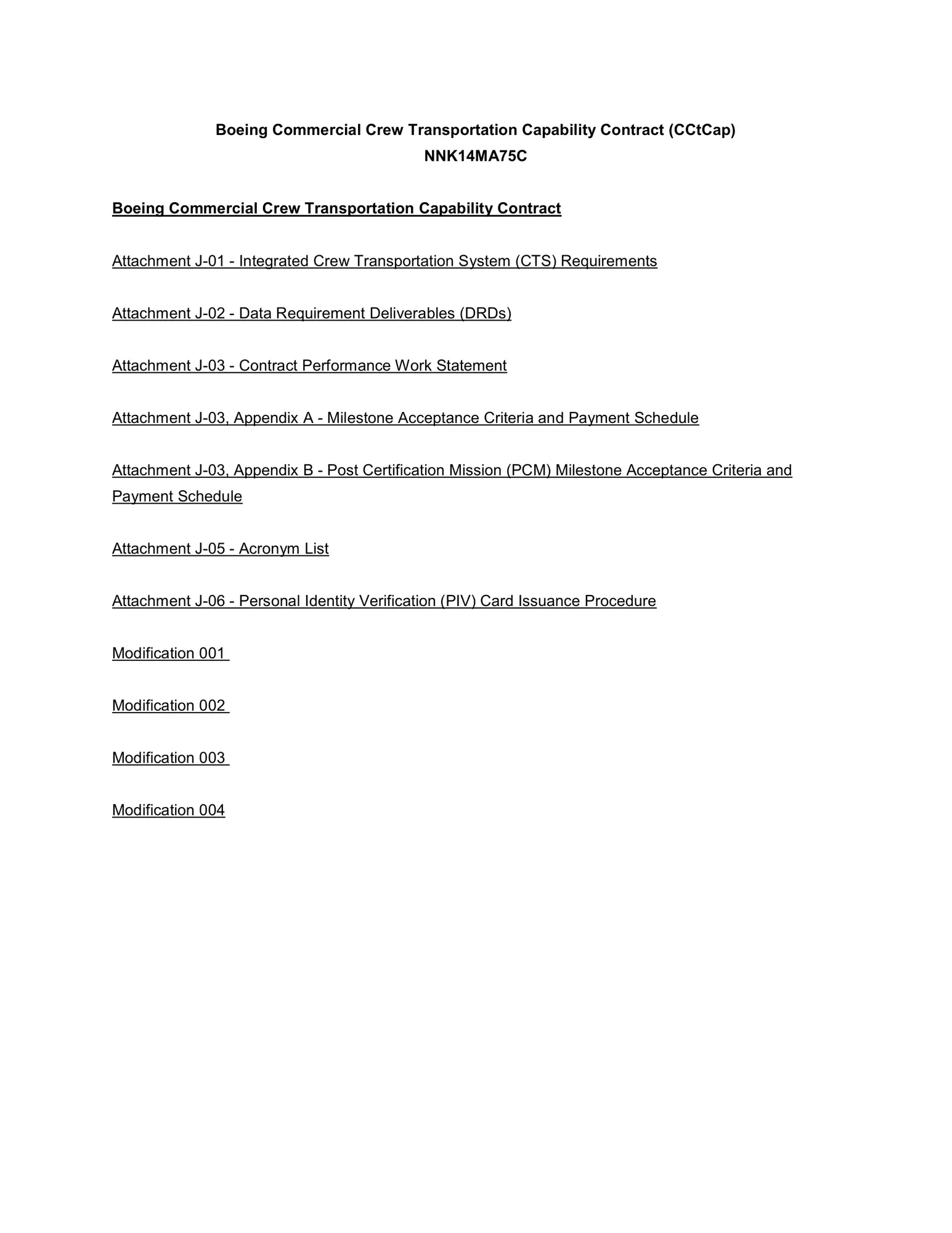

This article explores the various components of the CCtCap contract, including its scope, objectives, and specific requirements. The content is based on the contract document between Boeing and NASA and is designed to provide a detailed yet non-technical overview of this important endeavor.
Background of the Commercial Crew Program
NASA’s Commercial Crew Program (CCP) is a multi-phase initiative aimed at developing commercial space transportation capabilities in the United States. Its main goal is to provide safe and reliable transportation to and from the ISS for NASA astronauts, supporting long-term human space exploration and maintaining a continuous U.S. presence in space. CCP was initiated after the retirement of the Space Shuttle program in 2011, which left NASA without a domestic means of transporting crew to the ISS.
The CCP is structured in multiple phases, with each phase progressively advancing the development of commercial spaceflight capabilities. Phase 1, known as the Certification Products Contract (CPC), focused on developing early lifecycle plans and products that ensured compliance with NASA’s safety standards. Phase 2, the CCtCap contract, builds on these efforts by finalizing the design, development, and certification of the Crew Transportation Systems (CTS) that will be used for actual missions.
The shift towards commercial partnerships for human spaceflight represents a major change in NASA’s approach. Instead of owning and operating the spacecraft, NASA acts as a customer, purchasing transportation services from private companies. This model not only stimulates growth in the commercial space sector but also allows NASA to focus its resources on deep space exploration, including missions to the Moon and Mars.
The Scope of the CCtCap Contract
The CCtCap contract between NASA and Boeing outlines the responsibilities, deliverables, and requirements for Boeing in developing the CTS. The contract is structured to ensure that Boeing’s system will meet NASA’s stringent safety and performance standards, ultimately leading to certification and operational flights to the ISS. The total value of the contract is approximately $4.2 billion, covering a range of activities from design and development to post-certification missions.
This contract marks a significant step forward in the evolution of commercial spaceflight, providing a robust framework for developing systems capable of meeting NASA’s demands for human-rated missions. It requires Boeing to undertake a comprehensive set of tasks, from initial system design through final certification and mission execution.
Design, Development, Test, and Evaluation (DDTE)
One of the primary components of the CCtCap contract is the Design, Development, Test, and Evaluation (DDTE) phase, which includes the design and certification of Boeing’s CTS. This phase encompasses a wide range of activities, including technical assessments, engineering design work, and the development of key systems and components. The DDTE phase is critical for ensuring that the CTS meets all of NASA’s requirements for human spaceflight, including safety, reliability, and mission performance.
The DDTE phase is organized into several Contract Line Item Numbers (CLINs), which outline specific tasks and deliverables. For example, CLIN 001 covers the core contract activities related to design and certification, while CLIN 002 and CLIN 003 address post-certification missions and special studies, respectively.
DDTE activities are essential in preparing the CTS for the rigorous demands of space travel. This phase includes everything from the initial conceptual design to the execution of key system tests that validate the spacecraft’s performance under operational conditions. These efforts are focused on ensuring that the CTS meets NASA’s standards for safety and reliability while remaining cost-effective and capable of meeting mission requirements.
During the DDTE phase, Boeing is required to perform detailed engineering analyses to refine the design of the CTS. This includes assessments of structural integrity, propulsion systems, avionics, life support systems, and other critical subsystems. Each component must undergo a series of tests to ensure that it can withstand the harsh conditions of space, including extreme temperatures, radiation, and the vacuum environment.
In addition to hardware testing, the DDTE phase includes extensive software development and verification. The CTS will rely on sophisticated software to manage all aspects of the mission, from launch and docking to re-entry and landing. This software must be thoroughly tested to ensure that it performs as expected in a variety of scenarios, including potential emergency situations.
Post-Certification Missions (PCM)
After the CTS has been fully developed and certified, Boeing will be responsible for conducting Post-Certification Missions (PCM) to the ISS. These missions are designed to demonstrate the full capabilities of the CTS and ensure that it can reliably transport NASA astronauts to and from the ISS. The contract includes provisions for multiple PCM flights, with a minimum of two missions and a maximum of six. These missions will involve all aspects of the CTS, including ground operations, launch, on-orbit operations, return, and recovery.
PCM flights are a critical component of the CCtCap contract, as they provide the final validation of the CTS’s capabilities. These missions will allow NASA to assess the performance of the system under real-world conditions, ensuring that it can meet the demands of routine crew transport operations to the ISS.
Each PCM will involve a comprehensive series of operations, starting with pre-launch preparations. This includes final checks of the spacecraft’s systems, fueling, and integration with the launch vehicle. Once launched, the CTS will execute a series of maneuvers to rendezvous and dock with the ISS, where it will remain for the duration of the crew’s stay. Upon completion of the mission, the spacecraft will undock and return to Earth, where it will undergo post-flight inspections and analysis.
Special Studies and Risk Reduction
In addition to the core contract activities and post-certification missions, the CCtCap contract also includes provisions for special studies and risk reduction activities. These activities are designed to address any potential risks or uncertainties that may arise during the development and certification process. The contract allows for flexibility in responding to new challenges, with Boeing able to conduct additional tests, analyses, and studies as needed. The special studies are managed under CLIN 003, with a maximum potential value of $150 million.
Risk reduction is a key aspect of the CCtCap contract, as it helps to ensure that the CTS can perform reliably in the face of unexpected challenges. This could include additional testing to address potential failure modes or the development of contingency plans for handling emergencies during flight. By proactively addressing potential risks, Boeing can reduce the likelihood of issues arising during actual missions, ensuring that the CTS can operate safely and effectively.
Special studies under CLIN 003 provide Boeing with the flexibility to conduct in-depth analyses of specific technical challenges or to explore new design concepts that could improve the performance or reliability of the CTS. These studies may also involve collaboration with NASA to assess new technologies or to refine existing systems to meet evolving mission requirements.
Contract Requirements and Deliverables
The CCtCap contract outlines specific requirements and deliverables that Boeing must meet to ensure the success of the program. These requirements are detailed in several key sections of the contract, including the Statement of Work, Performance Work Statement, and the Milestone Acceptance Criteria and Payment Schedule.
Integrated Crew Transportation System (CTS) Requirements
At the heart of the CCtCap contract are the Integrated Crew Transportation System (CTS) requirements, which define the capabilities and performance standards that Boeing’s system must achieve. These requirements cover a wide range of technical areas, including propulsion, life support, avionics, and crew accommodations. The CTS must be capable of safely transporting a crew of four astronauts to and from the ISS, with the ability to remain docked at the station for up to 210 days.
The CTS requirements also include stringent safety and human-rating standards. Human-rating refers to the process of ensuring that the system is designed to protect the lives of the crew under all foreseeable conditions, including both nominal operations and off-nominal events. This includes having redundant systems, fail-safe mechanisms, and the ability to abort the mission at any stage to ensure crew safety.
NASA’s human-rating requirements are among the most rigorous in the space industry. These standards require Boeing to demonstrate that the CTS can protect the crew during all phases of the mission, from launch and orbit to re-entry and landing. For example, the spacecraft must be able to survive the failure of a critical system, such as the main engines or life support system, and still ensure the safe return of the crew.
In addition to safety, the CTS must meet specific performance requirements, such as the ability to dock with the ISS autonomously or under manual control. The system must also be compatible with existing ISS systems, including docking ports, power, and communication interfaces. These requirements ensure that the CTS can integrate seamlessly with the ISS and support long-duration missions in space.
Data Requirement Deliverables (DRDs)
As part of the contract, Boeing is required to submit a variety of Data Requirement Deliverables (DRDs) to NASA. These deliverables include technical reports, design documents, test data, and other materials that provide NASA with the information it needs to assess the progress of the program. The DRDs are organized into several categories, each corresponding to a different aspect of the program. These categories include engineering design, system integration, testing, and certification.
The DRDs serve as a key communication tool between Boeing and NASA, providing detailed information on the status of the CTS development and certification process. These deliverables are used by NASA to verify that Boeing is meeting its contractual obligations and to ensure that the CTS is on track to meet the program’s objectives.
The DRDs are submitted at various points throughout the contract, corresponding to key milestones in the development process. For example, Boeing may be required to submit a detailed design review report after completing a critical design review (CDR), or a test report following the successful completion of a major system test. These deliverables provide NASA with the data it needs to assess the readiness of the CTS for the next phase of development.
Milestone Acceptance Criteria and Payment Schedule
The CCtCap contract includes a detailed Milestone Acceptance Criteria and Payment Schedule, which outlines the specific milestones that Boeing must achieve to receive payment. These milestones are tied to key events in the development and certification process, such as the completion of critical design reviews, the successful completion of test flights, and the achievement of NASA certification.
The payment schedule is designed to incentivize Boeing to meet these milestones on time and within budget. Payments are made based on the successful completion of each milestone, with additional payments tied to the successful execution of post-certification missions. This performance-based payment structure helps ensure that Boeing remains focused on delivering a high-quality product that meets NASA’s needs.
The milestone payment structure also provides NASA with a mechanism for managing the program’s budget and ensuring that funds are allocated efficiently. By tying payments to specific milestones, NASA can ensure that it is only paying for work that has been completed successfully, reducing the risk of cost overruns or delays.
Contract Administration and Oversight
The CCtCap contract includes several provisions for contract administration and oversight, ensuring that both NASA and Boeing fulfill their respective obligations under the agreement. These provisions cover a wide range of topics, including contract management, financial reporting, property management, and safety and health requirements.
Contracting Officer and Contracting Officer Representative
The contract designates a Contracting Officer (CO) and a Contracting Officer Representative (COR) to oversee the administration of the contract. The CO is responsible for issuing task orders, approving changes to the contract, and ensuring that Boeing complies with all contractual requirements. The COR serves as the technical liaison between NASA and Boeing, providing oversight and monitoring the contractor’s performance.
The CO and COR play a critical role in ensuring that the contract is executed as planned and that both parties meet their obligations. The CO has the authority to make binding decisions on behalf of NASA, while the COR provides technical expertise and oversight to ensure that Boeing is meeting the program’s technical requirements.
The CCtCap contract also includes provisions for regular communication between NASA and Boeing, ensuring that both parties are aligned on the program’s objectives and progress. This includes regular meetings, status reports, and reviews to assess the contractor’s performance and address any issues that may arise.
Property Management and Financial Reporting
Boeing is required to manage and account for all government property used in the performance of the contract. This includes equipment, facilities, and other assets provided by NASA. Boeing must maintain accurate records of all government property and submit regular financial reports to NASA. These reports provide detailed information on the status of the property, including its condition, location, and usage.
Boeing is also responsible for conducting annual physical inventories of government property with an acquisition cost exceeding $100,000. These inventories are used to validate the accuracy of property records and ensure that all government assets are properly accounted for.
In addition to property management, Boeing must provide regular financial reports to NASA, detailing the costs associated with the performance of the contract. These reports help NASA monitor the program’s budget and ensure that funds are being used efficiently. Boeing is required to submit detailed cost reports, including information on labor, materials, and other expenses, to support NASA’s financial oversight of the program.
Safety and Health Requirements
Safety is a top priority for NASA, and the CCtCap contract includes strict safety and health requirements that Boeing must adhere to throughout the performance of the contract. These requirements are designed to protect the public, astronauts, NASA personnel, and contractor employees, as well as to safeguard high-value equipment and property.
Boeing is required to implement safety and occupational health measures consistent with standard industry practices and to comply with all applicable federal, state, and local laws. NASA retains the right to inspect Boeing’s facilities and operations to ensure compliance with these requirements, and Boeing must take immediate corrective action if any safety violations are identified.
The safety requirements in the CCtCap contract cover a wide range of activities, from the design and testing of the CTS to the execution of post-certification missions. Boeing must ensure that all aspects of the program are conducted in a manner that minimizes the risk of accidents or injuries, and that any safety incidents are promptly reported and addressed.
In addition to meeting regulatory requirements, Boeing must also adhere to NASA’s internal safety standards, which are designed to ensure the highest level of safety for all space missions. These standards cover everything from the design of spacecraft systems to the procedures for handling hazardous materials during launch preparations. By adhering to these standards, Boeing can help ensure that the CTS operates safely and reliably throughout the mission lifecycle.
Summary
The Boeing CCtCap contract represents a significant step forward in the development of commercial space transportation capabilities in the United States. By partnering with Boeing, NASA is working to ensure that the United States has a reliable and cost-effective means of transporting astronauts to and from the International Space Station. The contract outlines a comprehensive framework for the design, development, testing, and certification of Boeing’s Crew Transportation System, with provisions for post-certification missions and ongoing risk reduction activities.
