The Soviet N1 Moon Rocket

Introduction

In the late 1960s, at the height of the space race, the Soviet Union was secretly developing a colossal moon rocket to rival America’s Saturn V. This super heavy-lift launch vehicle was the N1, designed to carry cosmonauts on a mission to land on the Moon. Standing over 100 meters tall and weighing about 2.7 million kilograms when fully fueled, the N1 was an engineering marvel on paper. Its first stage alone was powered by thirty engines, giving it more thrust at liftoff than even the Saturn V. However, the N1 never fulfilled its promise. Between 1969 and 1972, four N1 rockets were launched, and all four failed before reaching space. The story of the N1 rocket is one of grand ambition, technical challenges, and dramatic failures, all kept tightly under wraps by Soviet authorities for decades. This article examines the development of the N1, its design features, the ill-fated test launches, and the legacy of this extraordinary rocket.

Historical Context and Development

The concept of the N1 rocket took shape in the late 1950s as the Soviet Union explored ideas for heavy launch vehicles. Renowned engineer Sergei Korolev, the Chief Designer of the Soviet space program, envisioned a family of “N” rockets for various ambitious goals. The largest of these would be the N1, initially imagined as a powerful booster for missions like launching military space stations or crewed interplanetary spacecraft. By the early 1960s, the United States had announced its Apollo program to land a man on the Moon, and the space race intensified. In 1964, Soviet leadership formally approved a crewed lunar program of their own. The N1 was repurposed to be the centerpiece of this effort – effectively the Soviet answer to the Saturn V Moon rocket.

Developing such a rocket was an enormous undertaking, and the Soviets were starting years behind the Americans. NASA had begun work on the Saturn V in the early 1960s, whereas full development of the N1 did not kick off until around 1965. This delay meant the N1 team had to catch up quickly under intense pressure to beat the Apollo landings. Korolev and his design bureau, OKB-1, led the N1 project. They faced not only the technical difficulties of building a giant rocket, but also internal competition and limited resources. Unlike the United States, which poured massive funding and public support into Apollo, the Soviet Moon project had to contend with more constrained budgets and a cloak of secrecy. Different Soviet design bureaus often competed rather than collaborated, each protecting its own projects. For instance, rival engineer Vladimir Chelomei promoted an alternate heavy rocket design (the UR-700) and a different lunar mission plan. These rivalries and political hesitance in the early 1960s meant the N1 program never enjoyed the same unified backing that Apollo had in the U.S.

After Korolev’s untimely death in 1966, leadership of the N1 program passed to his deputy, Vasily Mishin. Mishin inherited a project already behind schedule and plagued with technical problems. He lacked Korolev’s political clout to secure resources and resolve disputes. Still, the work forged ahead. By 1967, construction of launch facilities for the N1 was underway at the Baikonur Cosmodrome in Kazakhstan. A full-size non-functional mockup of the rocket (designated 1M1) was rolled out to the launch pad in November 1967 for fit checks and training drills. American spy satellites spotted this giant rocket on the pad, confirming suspicions that the USSR was developing a Moon rocket of its own. Internally, Soviet engineers were scrambling to get the first flight-ready N1 assembled and tested.

Design and Technical Challenges

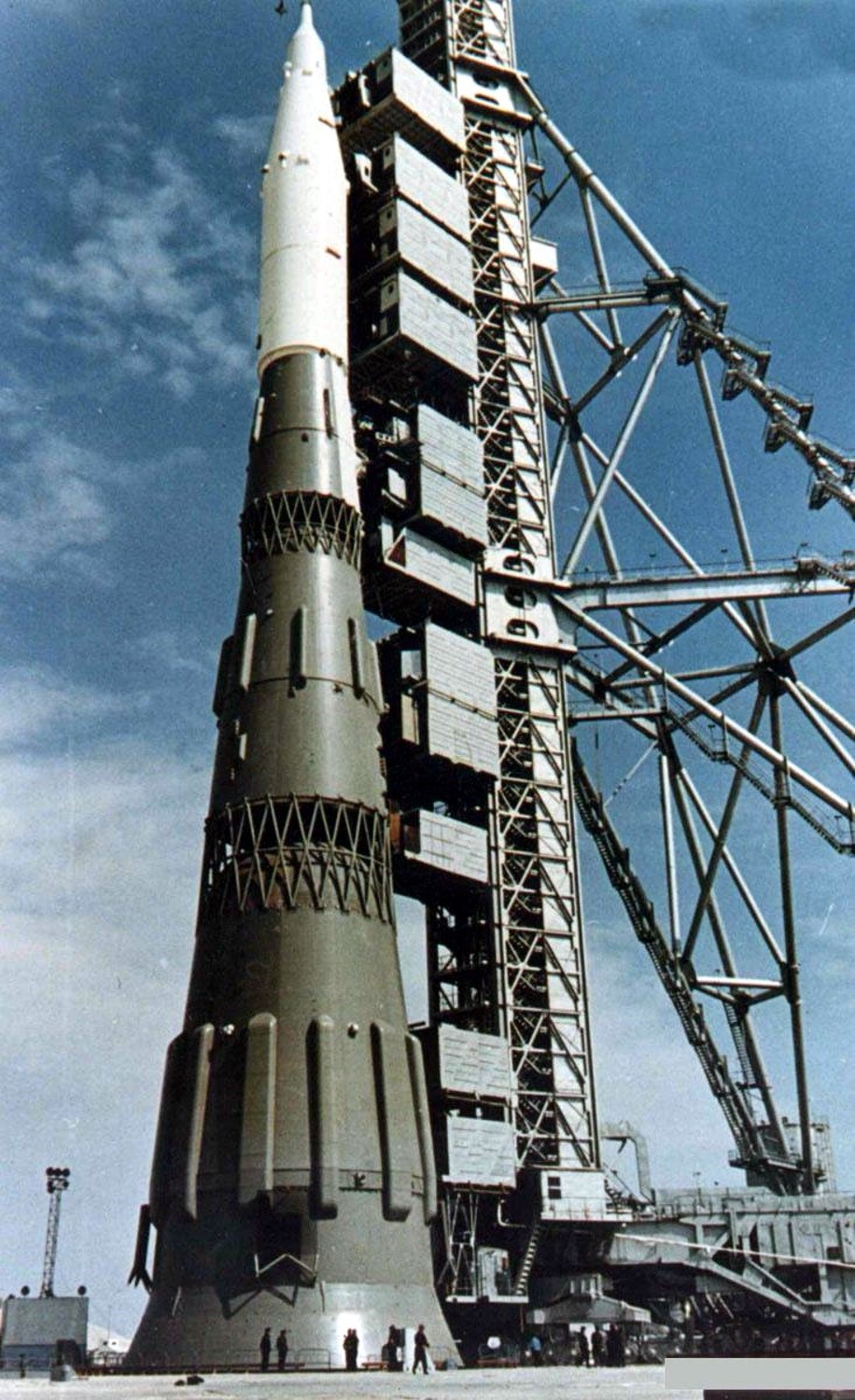

The N1 rocket was a monster of a machine and one of the most complex launch vehicles ever built up to that time. It was a multi-stage rocket with a total height of about 105 meters (344 feet), making it roughly comparable in size to the Saturn V. The N1’s diameter at its base was about 17 meters (56 feet), flaring outward to accommodate the large cluster of engines in the first stage. Fully fueled, it tipped the scales at around 2,750 metric tons. The N1 was intended to carry nearly 100 metric tons of payload to low Earth orbit – enough to send a two-cosmonaut lunar expedition towards the Moon.

To achieve the required performance, the N1 used five stages (including the upper stages of the lunar spacecraft complex). The first three stages were part of the launch vehicle itself, and the fourth and fifth stages were actually components of the lunar mission payload (often collectively called the L3 complex). The first stage, called Block A, was the powerhouse of the rocket. It was equipped with 30 engines arranged in two concentric rings (24 around the perimeter and 6 in the center). These engines, designated NK-15, were a new design developed by the Kuznetsov Design Bureau specifically for the N1. Instead of using a few very large engines like the Saturn V’s five F-1 engines, the Soviet approach was to use many smaller engines working together. This choice was partly driven by necessity: the Soviet rocket engine industry had not yet produced an engine with the gigantic thrust of an F-1. Clustering thirty smaller engines was the solution to reach the needed total thrust, roughly 45,000 kilonewtons (about 10 million pounds of thrust) at liftoff.

The NK-15 engines were technologically advanced for their time. They used a staged combustion cycle, which meant they squeezed high performance out of their kerosene fuel and liquid oxygen oxidizer. However, this sophistication came at a cost. The engines were temperamental and had to ignite in a careful sequence. The plumbing to feed fuel and oxygen to thirty engines and keep them firing evenly was extremely complicated. The N1’s first stage had to light all 30 engines almost simultaneously and manage them as a single unit. An automatic engine control system known as KORD was responsible for monitoring and adjusting the engines, and if necessary, shutting down any that malfunctioned during flight.

Above the first stage, the Block B second stage carried another 8 engines (a variant called NK-15V, tuned for high-altitude performance). The third stage, Block V (the letter “V” corresponds to Cyrillic “В” and is sometimes transliterated as “Block B”), had 4 smaller engines. Together, these three stages would lift the payload out of Earth’s atmosphere and accelerate it to orbital speed. On top of these, the fourth stage Block G was a single-engine stage intended to push the lunar spacecraft out of Earth orbit toward the Moon (trans-lunar injection). The fifth stage Block D would perform fine-tuned maneuvers such as inserting the spacecraft into lunar orbit and initiating the descent to the Moon.

Sitting above all these rocket stages was the lunar mission hardware itself, referred to as the L3 complex. This included a two-person lunar orbital spacecraft (called Soyuz 7K-LOK), which was the command ship that would remain in orbit around the Moon, and a small one-person lunar lander (called LK, for “Lunniy Korabl” or lunar craft) that would detach and descend to the Moon’s surface. The lander was considerably smaller and lighter than the American Apollo Lunar Module, reflecting the N1’s more limited lifting capability. The L3 complex also carried an emergency escape tower on top, to pull the crew to safety in case of a launch emergency.

While the mission profile of the N1-L3 was analogous to Apollo’s lunar orbit rendezvous (with one vehicle orbiting the Moon while a separate module landed), the Soviet plan had some differences in execution. Initially, Soviet planners even considered assembling a Moon mission in Earth orbit using multiple launches (a technique called Earth orbit rendezvous), but this idea was abandoned as too complex. Instead, the entire Moon mission would be launched in one go with the N1. This all-or-nothing approach meant the rocket and all its systems had to work perfectly in a single flight – there was no second chance if anything failed.

Designing and testing the N1 rocket turned out to be extremely challenging. The sheer number of engines in the first stage introduced many points of potential failure. Just making sure thirty engines could ignite together without destroying the rocket was a major hurdle. Because of weight-saving measures, the engines used one-time ignition devices (pyrotechnic valves) that could not be test-fired and then reused; once an engine was lit, certain parts had to be replaced before it could be fired again. This made comprehensive ground testing difficult. Unlike NASA, which test-fired the Saturn V’s first stage as a whole on a test stand before flight, the Soviets never performed a full-power static firing of all N1 engines together. They simply did not have a test stand capable of handling the combined thrust, and the program was under pressure to move quickly. Engineers could only test individual engines and smaller clusters, but the first time all 30 would fire at once was during an actual launch attempt.

The N1 also suffered from limitations in manufacturing and quality control. Building such a large, complex machine pushed the limits of the Soviet industrial base of the 1960s. Components had to be fabricated at different factories across the country and then shipped to Baikonur by rail. The rocket stages were so large that special rail cars and handling procedures were required. Once at the launch site, the stages were assembled in a huge hangar and then moved horizontally to the pad and raised upright. All of these logistics added opportunities for things to go wrong or for subtle defects to be introduced.

Perhaps most significantly, the program’s tight schedule and constrained budget meant that many subsystems did not get the thorough testing they needed. There was immense political pressure to show progress. Soviet leaders expected quick results to keep pace with the Americans. Managers were often inclined to report optimism and push forward even if serious problems were still being worked out. This environment led to a scenario where the N1 was launched for the first time without ever having had a complete “all-up” test of the integrated system. Not surprisingly, unknown design flaws and hidden errors would make themselves known in flight, with catastrophic results.

To summarize the N1’s key specifications and design features, the table below provides an overview:

Test Flights and Failures

After years of development, the Soviet launch team was ready to test the N1 by the end of the 1960s. Each launch was an uncrewed test carrying dummy or prototype lunar hardware. The flights were conducted under extreme secrecy – no official announcements were made, and failures were not acknowledged publicly at the time. Below is a review of each of the four N1 launch attempts and what went wrong.

First Launch Attempt (February 1969)

The first N1 launch took place on February 21, 1969. The vehicle used was N1 rocket serial number 3L. Its mission was to send a prototype lunar spacecraft (called Zond L1S-1) on a trajectory around the Moon. As the countdown reached zero, all thirty engines roared to life and the giant rocket lumbered off the pad, disappearing into the sky over Baikonur. For the first few seconds, things appeared to be going well. But very soon, trouble developed in the bowels of the booster.

About six seconds after liftoff, a transient voltage spike in the N1’s electrical system caused the KORD control system to mistakenly shut down engine #12 in the first stage. KORD, attempting to maintain symmetrical thrust, shut off a second engine (#24) on the opposite side as well. The N1 continued to climb despite losing two of its thirty engines, but the vibrations and stress began to build. A phenomenon known as pogo oscillation – a dangerous vibration – in another engine led to components shaking loose. By roughly T+25 seconds into flight, a fuel line had ruptured in the first stage, spilling kerosene into the engine bay. This resulted in a fire at the base of the rocket. The flaming booster was still thrusting upward, but the fire started to wreak havoc on wiring and instruments.

At about 68 seconds after launch, the KORD system detected multiple failures and took its most drastic action: it shut down all the engines of the first stage. Normally, an N1’s first stage would burn for about two full minutes before staging. In this case, the premature shutdown at just over one minute meant the rocket immediately lost thrust. The emergency detection system sensed the rocket was in serious trouble and triggered the launch escape tower. The payload – a mockup of the lunar spacecraft – was jettisoned and rocketed away from the booster for safety. The N1, now an uncontrolled hulk, began to fall back to Earth from an altitude of only about 12 kilometers.

Without first stage thrust, the rocket could not continue. The remaining propellants and the fire led to an explosion as the vehicle broke apart mid-air. Wreckage rained down on the steppe, scattered around 50 km (30 miles) from the launch site. Although the first flight of the N1 ended in failure, the destruction happened far enough downrange that the launch pad itself was not damaged. Soviet engineers recovered fragments of the rocket to analyze what had gone wrong. It became clear that a cascading set of events – starting with a false engine shutdown command and followed by vibration-induced structural failures – had doomed the mission. The first test had revealed serious flaws in the N1’s engine control system and showed that the rocket lacked the robustness to survive such stresses.

Second Launch Attempt (July 1969)

The Soviet team prepared for a second attempt in the summer of 1969, racing against the clock as NASA neared the goal of a lunar landing with Apollo 11. The second N1 launch, using rocket serial number 5L, occurred on July 3, 1969. This time, the stakes felt even higher. The payload was a more complete L3 lunar complex, including a functional lunar orbiter (LOK) and a dummy lunar lander, with the intent to loop around the Moon and test systems. The launch also took place at night, adding to the drama as personnel and observers gathered around Baikonur.

For a few seconds after liftoff, the mighty rocket seemed to ascend normally. But at just about 10–15 seconds into flight, disaster struck in the most spectacular way. An explosion was observed near the base of the booster. In an instant, all of the first stage engines shut down except for one. The enormous vehicle, now without enough thrust, paused and began to tilt. The one engine still firing pushed the rocket sideways as it lost upward momentum. Barely off the ground, the N1 toppled and fell back toward its launch pad.

What followed was a cataclysmic chain reaction. When the 100-meter rocket hit the pad, it was still loaded with most of its fuel – hundreds of tons of kerosene and liquid oxygen. The impact and the remaining firing engine ignited this propellant in a massive blast. The explosion obliterated the launch tower and pad infrastructure, carving out a large crater and sending debris flying for miles. Windows were shattered in buildings as far as 35 km (over 20 miles) away. In terms of sheer energy, this was one of the largest artificial non-nuclear explosions in history up to that time. Amazingly, because the launch site had been evacuated, there were no casualties, but the launch complex was completely destroyed. It would take almost two years to rebuild it.

The cause of the second launch failure was traced to one of the first stage engines (engine #8) suffering a turbopump explosion moments after liftoff. The turbopump is the machinery that feeds fuel and oxidizer into the engine, and its failure sent fragments tearing through adjacent engines and plumbing. Automatic shutdown commands then turned off the engines, except one failed to shut down immediately (the lone engine that kept firing). Investigators determined that a piece of debris or a manufacturing flaw likely caused the turbopump to fail. To prevent a recurrence, the engineers installed debris filters in the engine fuel lines for future rockets. They also reprogrammed the KORD system not to shut down the entire engine cluster in the first moments of flight; this was meant to avoid dropping the rocket back onto the pad if a similar partial engine outage occurred.

Third Launch Attempt (June 1971)

It took a long 18 months to recover from the second disaster. The third N1 launch attempt took place on June 27, 1971 (vehicle serial number 6L). By this time, the Apollo program had already accomplished several Moon landings – Apollo 11 had succeeded just weeks after the N1’s 1969 explosions, and Apollo 12, 13, and 14 had followed. The Soviets were trying to keep their Moon hopes alive even as the world assumed the USSR had abandoned such goals. With the rebuilt launch pad and many modifications to the N1 design, engineers were cautiously optimistic that the third time might be the charm.

On the day of the launch, the N1 6L rocket ignited and cleared the pad successfully. Early flight was normal, a relief after the previous attempt’s immediate catastrophe. However, about 50 seconds into the flight, the rocket encountered a new problem. The vehicle suddenly began to roll – it started spinning along its longitudinal axis uncontrollably. Every rocket performs a slow roll maneuver after launch to help with navigation, but in this case the roll rate went out of control. The guidance system was unable to correct it, and soon the entire booster was spinning faster and faster.

The reason for the roll was later attributed to unexpected aerodynamic disturbances at the base of the rocket, possibly combined with an engine steering (gimbal) malfunction. As the roll accelerated beyond 30 degrees per second, the stresses on the structure became enormous. At around 55 seconds after liftoff, the N1 started to break apart due to these forces. The interstage structure between the first and second stages failed, and the second and third stages broke free from the tumbling first stage. At 50 seconds, once the programmed lockout on engine shutdown had expired, the KORD system then executed a shutdown of the first stage engines – but by then pieces of the rocket were already coming apart. The fragments of the upper stages fell to the ground a few kilometers from the pad, and the lower stages crashed further downrange, blasting a crater in the Kazakh steppe. Again, the launch had failed, but at least this time the pad did not suffer damage since the vehicle had traveled a fair distance before disintegrating.

In the aftermath, the third failure highlighted that controlling the N1 during flight was as difficult as getting it off the ground in the first place. The roll problem prompted another round of design changes. For the next rocket, engineers added dedicated small steering rockets (thrusters) to help stabilize the vehicle, since relying on engine gimballing alone had proven insufficient. They also significantly upgraded the guidance system and instrumentation – increasing the number of sensors on the rocket from a few hundred to many thousands – to better monitor and control flight.

Fourth Launch Attempt (November 1972)

By late 1972, the Soviet Moon program was on its last legs, but one more N1 was prepared for a test. The fourth launch, using vehicle serial number 7L, took place on November 23, 1972. This rocket incorporated the most extensive set of improvements and fixes based on the previous failures. The flight control system had been upgraded from the old partially analog KORD to a more modern digital guidance system. The first stage also sported a conspicuously redesigned aft section – the iconic conical flare of the original model was replaced with a cylindrical “skirt” – to accommodate the new stabilization thrusters and other changes.

When N1 7L lifted off, it initially performed better than any of its predecessors. The rocket passed the 50-second mark, then one minute, still intact and climbing. It seemed as if this launch might actually reach orbit. Unfortunately, around 107 seconds into the flight (just under two minutes), things went awry. At that moment, the six central engines of the first stage were scheduled to shut down to reduce acceleration loads on the vehicle as it approached maximum aerodynamic pressure. Telemetry later showed that this engine shutdown caused a destructive vibration or “hydraulic shock” in the propellant lines of the first stage. The sudden change in flow made the fuel and oxidizer lines burst. A fire ignited in the engine compartment, and one of the engines (engine #4) even exploded from the stress.

The mighty rocket could not survive this chain of events. The first stage began to come apart about 15 seconds earlier than it was supposed to separate normally. At roughly 110 seconds into the flight, N1 7L disintegrated. Once again, the automated safety systems activated and the escape tower pulled the attached Soyuz 7K-LOK spacecraft (which was on this flight as a dummy payload) away to safety. The upper stages, which had not yet ignited, were flung clear and fell back to Earth, crashing into the steppe a few kilometers from the launch site.

Though this fourth attempt failed, it progressed farther than any previous N1 launch and validated many of the design changes. It demonstrated that earlier issues had been addressed, but unfortunately a new problem had appeared. Some observers later suggested that if ground controllers had manually commanded an immediate separation of the first stage and ignition of the second stage when the fire was detected, the mission might have been salvaged. In the chaos of a failing rocket, however, such split-second interventions were not practical.

Summary of N1 Launch Attempts

The table below summarizes the essential details of the four N1 test launches and their outcomes:

Cancellation and Legacy

The failure of all four N1 test launches dealt a fatal blow to the Soviet crewed lunar program. By the time of the last attempt in 1972, the American Apollo program had already planted its flag on the Moon multiple times and was nearing its end. The political motivation to continue chasing a Moon landing was fading in Moscow. Soviet leadership began shifting focus to other priorities in space, such as orbital space stations (the Salyut program) and robotic exploration.

In 1974, not long after the fourth N1 failure, the Kremlin officially canceled the N1-L3 lunar program. No further N1 rockets would be launched. Two more rockets that had been in preparation (sometimes referred to as the N1F, an upgraded variant with improved engines like the NK-33) were never used. The parts and stages of those unused N1s were eventually scrapped or repurposed. For example, some giant fuel tank shells ended up as storage containers at the Baikonur Cosmodrome.

The end of the N1 program also brought personnel changes. Chief Designer Vasily Mishin was removed from his post in 1974, effectively held responsible for the program’s failure. In his place, the Soviet space program came under the leadership of Valentin Glushko – ironically, the very rocket engineer whose earlier feud with Korolev had partly led to the N1’s engine predicament (Glushko had opposed building large kerosene-burning engines, prompting Korolev to rely on many small engines from Nikolai Kuznetsov’s bureau). Glushko had different ideas for heavy-lift rockets. He scrapped any thought of reviving the N1 and instead pursued a new booster design using fewer, more powerful engines fueled by liquid hydrogen. This path eventually led to the development of the Energia rocket in the 1980s – the Soviet Union’s next super heavy-lift launcher, used to put the Buran space shuttle into orbit in 1988. By then, the Soviet Moon-landing dream was long gone; the USSR never again attempted to send people beyond Earth orbit.

For many years, the very existence of the N1 rocket was shrouded in secrecy. Unlike the globally televised Apollo launches, the N1 flights were conducted in isolation and the Soviet public was not informed of their outcomes. It was only in the late 1980s, as the Soviet Union neared collapse, that information about the N1 program was declassified and shared with the world. People were astonished to learn that the Soviets had built such a massive Moon rocket and equally amazed at the footage of its spectacular explosions.

In hindsight, the N1 is remembered as a magnificent but doomed engineering project. It highlighted some unique strengths of the Soviet space effort – such as bold creativity and rapid development of new technology (for example, its advanced engines) – but also exposed systemic weaknesses, like inadequate testing and organizational disarray. The N1’s engines themselves, interestingly, eventually got a second life. Decades later, in the 1990s, a stockpile of unused engines from the program (known by their updated designation NK-33 and a high-altitude version NK-43) was sold off and used by aerospace companies in Russia and the United States. These robust engines proved their worth years after the N1’s demise by powering several smaller commercial rockets (for instance, early flights of the American Antares booster in the 2010s used modified NK-33 engines).

Summary

The Soviet N1 Moon rocket stands as one of the most ambitious projects in space history, as well as one of the most dramatic failures. Conceived as the vehicle to beat the Americans to the Moon, it pushed the boundaries of rocket engineering with its enormous scale and unprecedented 30-engine first stage. Yet a combination of rushed development, design flaws, and insufficient testing led to four unsuccessful launches in a row. The N1 never achieved orbit, and its inability to deliver a cosmonaut to the Moon marked the end of the Soviet quest for a lunar landing.

Although the N1 program failed, it left a legacy that engineers and space enthusiasts still study today. The rocket’s colossal design and the lessons learned from its failures informed later developments in rocketry. The N1 remains a testament to the extraordinary goals of the space race era – a giant launch vehicle built in secrecy, remembered not for what it accomplished, but for what might have been.
