The Rocketdyne J-2 was a liquid-fuel cryogenic rocket engine that played a crucial role in NASA’s Apollo program, serving as the powerplant for the Saturn IB and Saturn V launch vehicles. Developed in the early 1960s, the J-2 was a technological marvel that enabled humans to reach the Moon.
Development and Specifications
The J-2’s development began in the late 1950s, inspired by NASA studies of high-thrust liquid hydrogen (LH2) and liquid oxygen (LOX) engines following the success of the smaller RL-10 engine used on the Atlas-Centaur’s upper stage. As NASA considered heavier launch vehicles, they sought engines producing up to 890 kN (200,000 lbf) of thrust.
Rocketdyne was awarded the contract to develop the J-2 in September 1960, marking the first time an engine design was explicitly required to prioritize crew safety. The J-2’s development process involved computer modeling, component testing, and the use of full-size mockups and engine simulators.
The J-2 had the following key specifications:

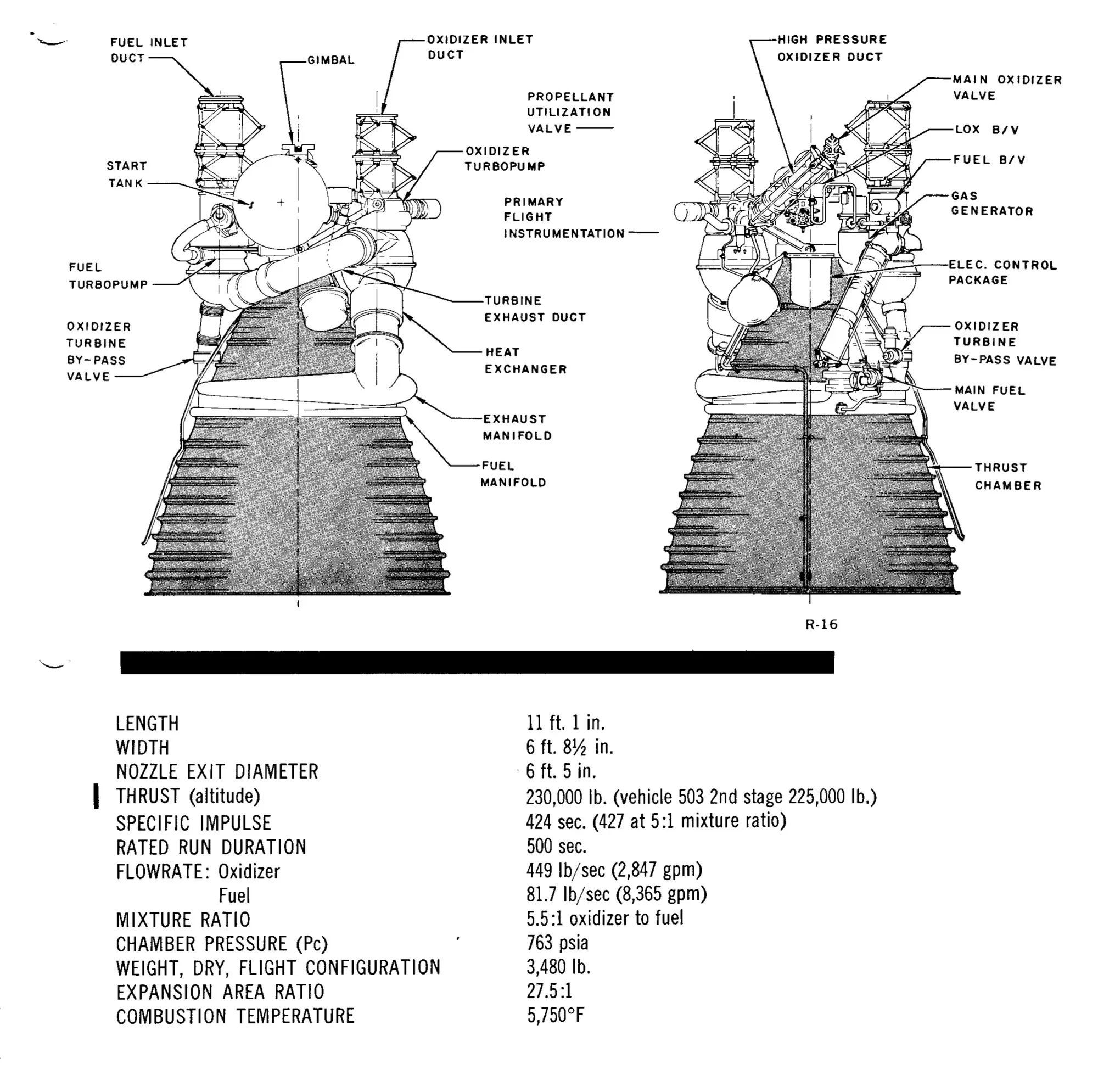

- Vacuum thrust: 1,033.1 kN (232,250 lbf)
- Specific impulse (vacuum): 421 seconds (4.13 km/s)
- Burn time: 475 seconds
- Engine weight (dry): 1,438 kg (3,170 lb)
- Propellants: LH2 and LOX
- Mixture ratio: 5.50
- Diameter: 2.01 m (6.6 ft)
- Length: 3.38 m (11.09 ft)
The development of the J-2 engine was not without its challenges. Engineers had to overcome issues related to combustion instability, which could cause destructive vibrations within the engine. They also had to design the engine to withstand the extreme temperature gradients between the cryogenic propellants and the hot combustion gases.
To address these challenges, Rocketdyne employed innovative design features such as baffles in the injector to dampen pressure oscillations and extensive insulation to protect the engine components from thermal stresses. The J-2 also utilized a regeneratively cooled nozzle, where the cryogenic hydrogen fuel circulated through tubes around the nozzle to keep it from overheating.
Extensive testing was conducted to validate the J-2’s design and ensure its reliability. This included component-level tests, engine-level tests, and eventually, full-scale static firing tests. The testing process helped identify and resolve issues, leading to a robust and flight-ready engine.
Unique Features and Challenges
The J-2 was a unique engine in many respects. At the start of its development, oxygen/hydrogen engine technology was not as advanced, leading to some initial challenges. It was designed to be man-rated, meaning it had to meet stringent safety requirements to transport humans.
As an open-cycle gas generator engine, the J-2 delivered up to 230,000 pounds of thrust. It had to achieve high thrust and performance while using cryogenic propellants, which required some design compromises. The engine also needed to gimbal for thrust vector control.
One of the most notable features of the J-2 was its ability to restart in orbit. This capability was essential for the Apollo missions, as the engine had to fire twice during a mission – once to reach Earth orbit and again to propel the spacecraft toward the Moon. Achieving reliable restarts with cryogenic propellants was a significant engineering challenge.
To enable restarts, the J-2 employed a unique ignition system. It used a small amount of solid propellant called the “pyrotechnic igniter” to initiate combustion in the gas generator. This ignition system was designed to function reliably in the harsh conditions of space.
The J-2 also featured a variable-thrust capability, allowing it to operate at different power levels depending on the mission requirements. This flexibility was important for optimizing the vehicle’s trajectory and conserving propellant.
Role in the Apollo Program
The J-2 was integral to the success of the Apollo missions. It was used on the S-II second stage of the Saturn V, which employed a cluster of five J-2 engines. The S-IVB third stage of both the Saturn IB and Saturn V used a single J-2 engine.
Notably, the J-2 on the S-IVB stage had to be capable of restarting in orbit. After the first firing to reach low Earth orbit, the engine would shut down. It would then fire a second time to propel the Apollo spacecraft on its trajectory to the Moon. This restart capability was crucial for the lunar missions.
The first manned flight using the J-2 engine took place on October 11, 1968, on the Saturn IB vehicle for the Apollo 7 test mission. The J-2 continued to power the subsequent Apollo missions, including the historic Apollo 11 flight that landed the first humans on the Moon.
During the Apollo 11 mission, the J-2 engines on the S-II stage of the Saturn V ignited at an altitude of about 68 kilometers (42 miles) and burned for approximately 6 minutes, propelling the vehicle to a speed of around 6.8 kilometers per second (15,200 miles per hour). After the S-II stage separated, the single J-2 engine on the S-IVB stage ignited, placing the Apollo spacecraft into Earth orbit.
Later in the mission, the S-IVB’s J-2 engine reignited to send the Apollo 11 crew on their trajectory to the Moon. This translunar injection burn lasted for about 6 minutes, increasing the spacecraft’s velocity to approximately 10.8 kilometers per second (24,200 miles per hour).
The J-2 engines performed flawlessly during the Apollo 11 mission, as well as the other Apollo flights. Their reliability and performance were key factors in the success of these historic missions.
Variants and Successors
Following the initial J-2 engine, Rocketdyne developed an improved version called the J-2S. The J-2S offered increased thrust of 1,138.5 kN (255,945 lbf) and a higher specific impulse of 436 seconds. It was planned to replace the J-2 on the Saturn V’s S-II and S-IVB stages but did not enter production before the Apollo program ended.
The J-2S incorporated several design improvements over the original J-2. It featured an uprated gas generator, a simplified ignition system, and a more efficient injector design. These enhancements aimed to increase the engine’s performance and reliability while reducing its complexity and manufacturing costs.
Although the J-2S did not fly on any missions, it underwent extensive ground testing. The development and testing of the J-2S provided valuable insights and laid the groundwork for future engine designs.
More recently, Rocketdyne worked on the J-2X engine as a potential successor to the J-2. The J-2X was designed to provide even greater performance, with a vacuum thrust of 1,310.0 kN (294,500 lbf) and a specific impulse of 448 seconds. It was proposed for use on the upper stages of NASA’s Ares I and Ares V rockets, but those vehicles were ultimately canceled.
The J-2X leveraged the proven design of the J-2 and J-2S while incorporating modern materials, manufacturing techniques, and design improvements. It was intended to be a versatile engine, capable of operating at different thrust levels and in multiple burn configurations.
Despite the cancellation of the Ares program, the development of the J-2X advanced the state of the art in liquid hydrogen/liquid oxygen engine technology. The lessons learned from the J-2X program have informed subsequent engine development efforts.
Legacy and Artifacts
The J-2 engine’s legacy lives on through its contributions to the Apollo program and its influence on subsequent rocket engine designs. Several J-2 engines are preserved as artifacts in museums and NASA facilities.
The Smithsonian National Air and Space Museum has two J-2 engines in its collection. One is an early developmental model that produced 200,000 pounds of thrust and underwent three tests for a total firing time of 291 seconds. The other, donated by Rocketdyne in 1976, is a flight-rated engine that generated 230,000 pounds of thrust and was tested for a total of 655 seconds.
These artifacts serve as tangible reminders of the J-2 engine’s crucial role in enabling human spaceflight to the Moon and its place in the history of space exploration.
In addition to museum displays, the J-2 engine has left a lasting impact on rocket propulsion technology. Its design principles and lessons learned have influenced the development of subsequent liquid hydrogen/liquid oxygen engines, such as the Space Shuttle Main Engine (SSME) and the RS-25 engine used on NASA’s Space Launch System (SLS).
The J-2’s legacy also extends to the people who worked on its development and operation. Many of the engineers and technicians involved in the J-2 program went on to make significant contributions to other spaceflight projects, passing on their knowledge and experience to new generations of rocket scientists.
Summary
The Rocketdyne J-2 rocket engine was a remarkable technological achievement that powered the Apollo missions and helped make the dream of landing humans on the Moon a reality. Its development pushed the boundaries of rocket propulsion, paving the way for future advancements.
From its early days as a concept inspired by the need for high-thrust cryogenic engines to its successful flights on the Saturn IB and Saturn V launch vehicles, the J-2 demonstrated the ingenuity and dedication of the engineers and scientists behind the Apollo program.
Although the J-2 itself is no longer in use, its legacy endures through the knowledge gained from its development and operation, as well as the artifacts preserved in museums. It remains an iconic symbol of the golden age of space exploration and a testament to human innovation and the pursuit of scientific discovery.
