Silently soaring 250 miles above Earth, the International Space Station is a marvel of human engineering and international cooperation. This orbiting laboratory is home to rotating crews of astronauts and cosmonauts who live and work in space for months at a time. But the space station is not just a single, monolithic structure – it’s an amalgamation of modules and components that have been assembled piece by piece over the course of more than 130 spaceflights spanning two decades.
The ability for visiting spacecraft to link up with the space station is critical for bringing new crew members, delivering essential supplies, and returning completed science experiments and astronauts back to Earth. The intricate cosmic dance that unfolds each time a new vehicle arrives at the ISS is made possible by the station’s spacecraft docking system. This article takes a closer look at how this system enables spacecraft to safely and securely join with the orbiting outpost.
The Docking Process
Rendezvous
The journey of a spacecraft destined for the ISS begins on the launch pad. After reaching orbit, the visiting vehicle spends about two days carefully adjusting its orbit to align with the station’s trajectory and altitude. This is achieved through a series of thruster burns that gradually bring the spacecraft closer and closer to its target.
As the vehicle approaches within a few miles of the ISS, it enters a stage called proximity operations. The spacecraft’s onboard navigation sensors and computers take over to autonomously guide it toward a specific docking port on the station, all while carefully controlling its approach velocity and orientation relative to the ISS.
The Final Approach
With a range of just a few hundred feet between the spacecraft and station, the vehicle enters the final approach corridor. Laser ranging and thermal imagers provide precise measurements of the distance and alignment to the docking port.
If all systems are nominal, the spacecraft continues its approach to within about 30 feet and automatically holds position. This is to allow mission controllers on the ground and the ISS crew to assess the status of the vehicle and give the final “go” for docking. Cameras on the ISS also provide views to help with this decision.
Contact and Capture
Once the all-clear is given, the spacecraft closes the remaining gap and makes initial contact with the docking port on the ISS. Spring-loaded guide pins on the port engage with receptacles on the spacecraft to provide initial, coarse alignment.
Next, a series of latches and hooks on both sides automatically drive to “hard mate” the two docking interfaces and pull the spacecraft snugly against the port, establishing a firm connection. Docking is confirmed when sensors detect that the hooks are fully driven and latched. All of this takes place in a matter of minutes.
At this point, the spacecraft is securely attached to the ISS but the docking port interface remains sealed on both sides. Pressure between the spacecraft and station is equalized and the vestibule area is checked for leaks before hatches on both sides are finally opened and the arriving crew can enter the station.
Docking Ports and Adapters

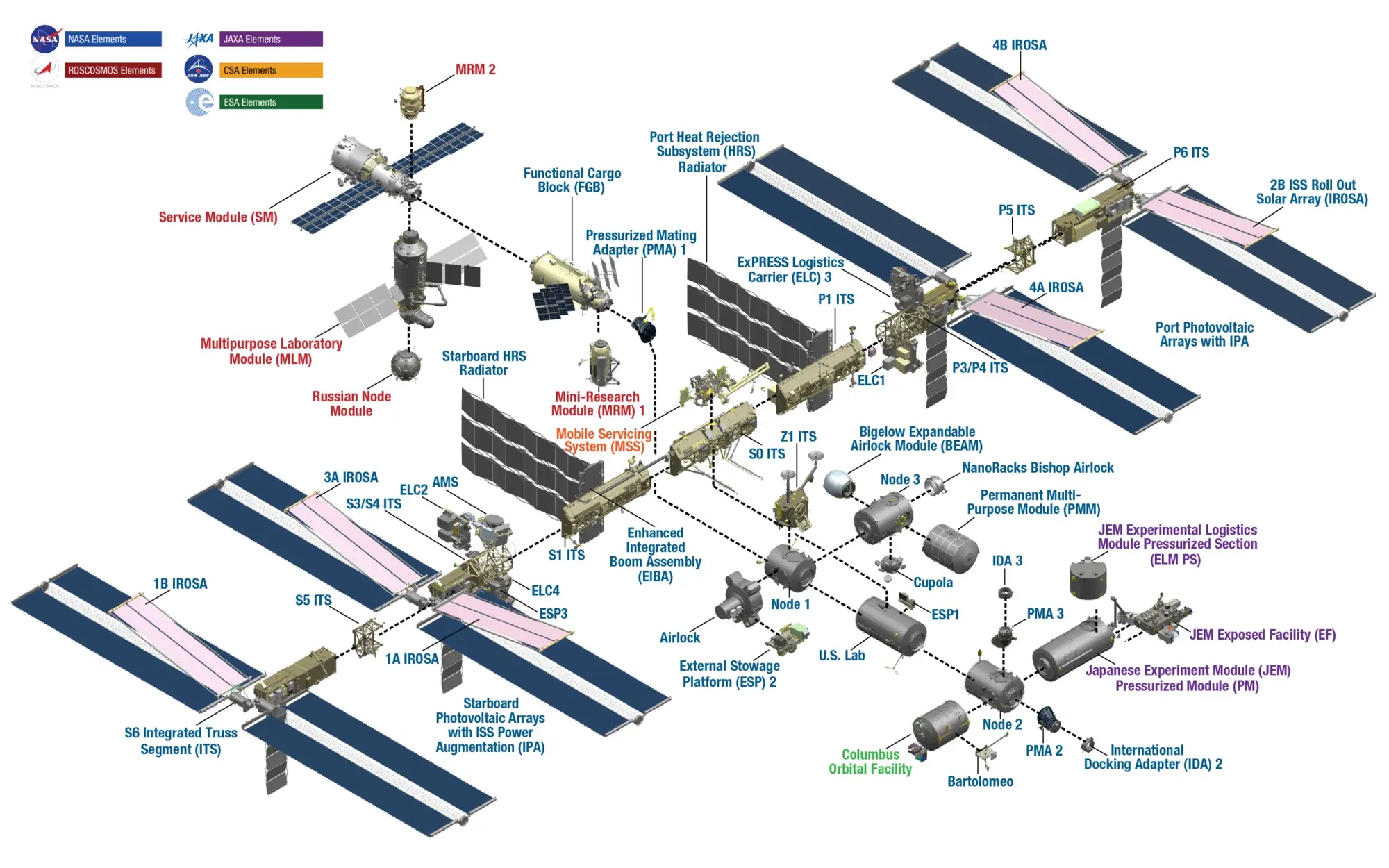

The ISS has multiple ports where spacecraft can dock, located on the Russian Orbital Segment and the U.S. Orbital Segment. Currently, there are two main types of docking mechanisms used: the Russian-designed SSVP-G4000 and the NASA Docking System (NDS).
Russian Docking Ports
The Russian docking ports use the SSVP-G4000 system, an upgraded version of the probe-and-drogue mechanism originally developed for the Soviet space program. A probe extended from the approaching spacecraft inserts into a cone-shaped drogue on the docking port. The probe captures the drogue and aligns the two vehicles, then retracts to pull the docking interfaces together to form a seal.
Russian Soyuz crew vehicles and Progress resupply ships use these ports when visiting the ISS. The Russian segment of the station has four of these SSVP-G4000 ports which can accommodate either Soyuz or Progress.
International Docking Adapters
On the U.S. segment of the ISS, there are two International Docking Adapters (IDAs) that were delivered and installed during spacewalks in 2016 and 2019. These bell-shaped adapters feature the NASA Docking System, an androgynous design where the port on the spacecraft is identical to the port on the station.
The NDS is designed around a ring with three petals that extend out and latch to the corresponding grooves on the other side. This provides a strong yet flexible connection that allows the spacecraft some wiggle room while still maintaining a pressure-tight seal. Shock absorbers help dampen any residual motion.
The IDA ports support the docking of the SpaceX Crew Dragon and Boeing Starliner commercial crew vehicles as well as the SpaceX Dragon cargo resupply ship. Having two of these ports provides redundancy and flexibility for visiting vehicle traffic.
Safety and Contingency Procedures
Spacecraft docking is a delicate and dangerous procedure with little margin for error. A collision or uncontrolled impact could severely damage the ISS and endanger the crew. Multiple safeguards and contingency procedures are in place to mitigate risk during every phase of the rendezvous and docking process.
Approach Corridors and Keep-Out Spheres
As a spacecraft approaches the ISS, it must stay within specific approach corridors that provide safe paths to the docking port while steering clear of the station’s most sensitive areas like solar arrays and radiators. Imaginary “keep-out spheres” surrounding the ISS help define these no-fly zones that the spacecraft must avoid.
If the approaching vehicle strays outside the corridors or into the keep-out spheres, it must automatically initiate an abort sequence to back away to a safe distance. Mission controllers can also send an abort command from the ground if needed.
Crew Monitoring and Manual Control
Although spacecraft docking is highly automated, the crew onboard the ISS closely monitors the process and can intervene if necessary. Video cameras provide views of the approaching vehicle and docking port, while sensors relay real-time data on the spacecraft’s trajectory and systems.
If any off-nominal indications are detected, the crew can issue an abort command to wave off the spacecraft. In some cases, the crew can even take manual control of the spacecraft using a remote command panel to steer it during the final approach.
Standalone Capability
The ISS is designed to be a self-sufficient spacecraft independent of any visiting vehicles. This means that even if a spacecraft is unable to undock for an extended period of time due to a mechanical problem, the station can still operate and support its crew indefinitely.
Critical ISS systems like power, thermal control, life support, and altitude control have built-in redundancy and are separate from the docking ports and adapters. So while a stuck spacecraft might block a docking port, it won’t impact the station’s core functions. The ISS also carries ample supplies of food, water, and oxygen to sustain the crew for months if needed.
The Future of Space Docking
As spaceflight technology continues to evolve, spacecraft docking systems will become increasingly sophisticated and autonomous. NASA and its international partners are already working on next-generation docking mechanisms that will be smaller, lighter, and more versatile than current designs.
One such project is NASA’s Docking System for Lunar Gateway, which will be used on the planned lunar-orbiting space station. This system is being designed to support both crewed and robotic spacecraft and to be compatible with vehicles from multiple space agencies and commercial companies.
Further in the future, new docking techniques like magnetic or electrostatic capture could enable spacecraft to berth without even touching each other. Advances in sensors, software, and machine vision will allow spacecraft to safely approach and dock with tumbling or uncooperative targets, opening up new possibilities for satellite servicing, space debris cleanup, and on-orbit assembly of large structures.
Summary
The ISS spacecraft docking system is a technological wonder that makes the space station’s continued operation possible. Like a port welcoming ships from distant harbors, the station’s docking mechanisms enable an ongoing flow of vehicles bringing crew, supplies, and science. It’s a testament to the incredible engineering and international cooperation behind the ISS program.
As we look to extend humanity’s presence beyond low Earth orbit, robust and reliable spacecraft docking capabilities will be more important than ever. The systems perfected on the ISS are laying the foundation for the spacecraft ports that will one day dot the surface of the Moon and Mars, welcoming crews to new outposts on the space frontier.
