In the realm of spaceflight, few companies have made as significant an impact in recent years as SpaceX. Founded by visionary entrepreneur Elon Musk, SpaceX has revolutionized the rocket industry with its focus on reusability, efficiency, and cost-effectiveness. Central to the company’s success is the remarkable Merlin rocket engine, which powers the Falcon 9 and Falcon Heavy launch vehicles. This article explores the development, specifications, and applications of the Merlin engine, highlighting its role in SpaceX’s groundbreaking achievements.
Overview of SpaceX
SpaceX, or Space Exploration Technologies Corp., is a private American aerospace manufacturer and space transportation services company. Established in 2002, SpaceX has rapidly become a major player in the space industry, with the primary goal of reducing space transportation costs and enabling the colonization of Mars. The company has made significant strides in developing reusable rockets, with the Falcon 9 and Falcon Heavy being prime examples of this innovative approach.
SpaceX’s achievements have been numerous and impactful. In 2010, the company became the first private entity to successfully launch, orbit, and recover a spacecraft with its Dragon capsule. This milestone was followed by the historic first docking of a private spacecraft with the International Space Station in 2012, when the Dragon delivered cargo to the orbiting laboratory. These successes paved the way for SpaceX to secure contracts with NASA for regular cargo resupply missions and, eventually, crew transportation to the ISS.
The Merlin Rocket Engine
Development History
The Merlin engine’s development began in the early 2000s, driven by SpaceX’s need for a high-performance, reliable, and cost-effective propulsion system. The engine’s design was inspired by the simplicity and robustness of the Apollo-era Rocketdyne F-1 engine, which powered the Saturn V rocket. However, SpaceX engineers incorporated modern materials, manufacturing techniques, and design improvements to create a more efficient and versatile engine.
The development process was not without challenges. Early versions of the Merlin engine, such as the Merlin 1A used in the Falcon 1 rocket, experienced some failures during testing and flight. However, SpaceX’s iterative design approach and rapid prototyping allowed the company to quickly identify and address issues, leading to the development of more reliable and powerful versions of the engine.
Engine Types
The Merlin engine family includes several variants, each tailored for specific applications:
- Merlin 1A: The initial version of the engine, used in the early Falcon 1 rockets.
- Merlin 1C: An upgraded version with increased thrust and improved efficiency, used in later Falcon 1 and early Falcon 9 rockets.
- Merlin 1D: The current workhorse engine, featuring further enhancements in thrust, reliability, and manufacturability. Used in Falcon 9 and Falcon Heavy rockets.
- Merlin Vacuum: A variant optimized for operation in the vacuum of space, with an extended nozzle for improved efficiency. Used as the upper stage engine on Falcon 9 and Falcon Heavy.

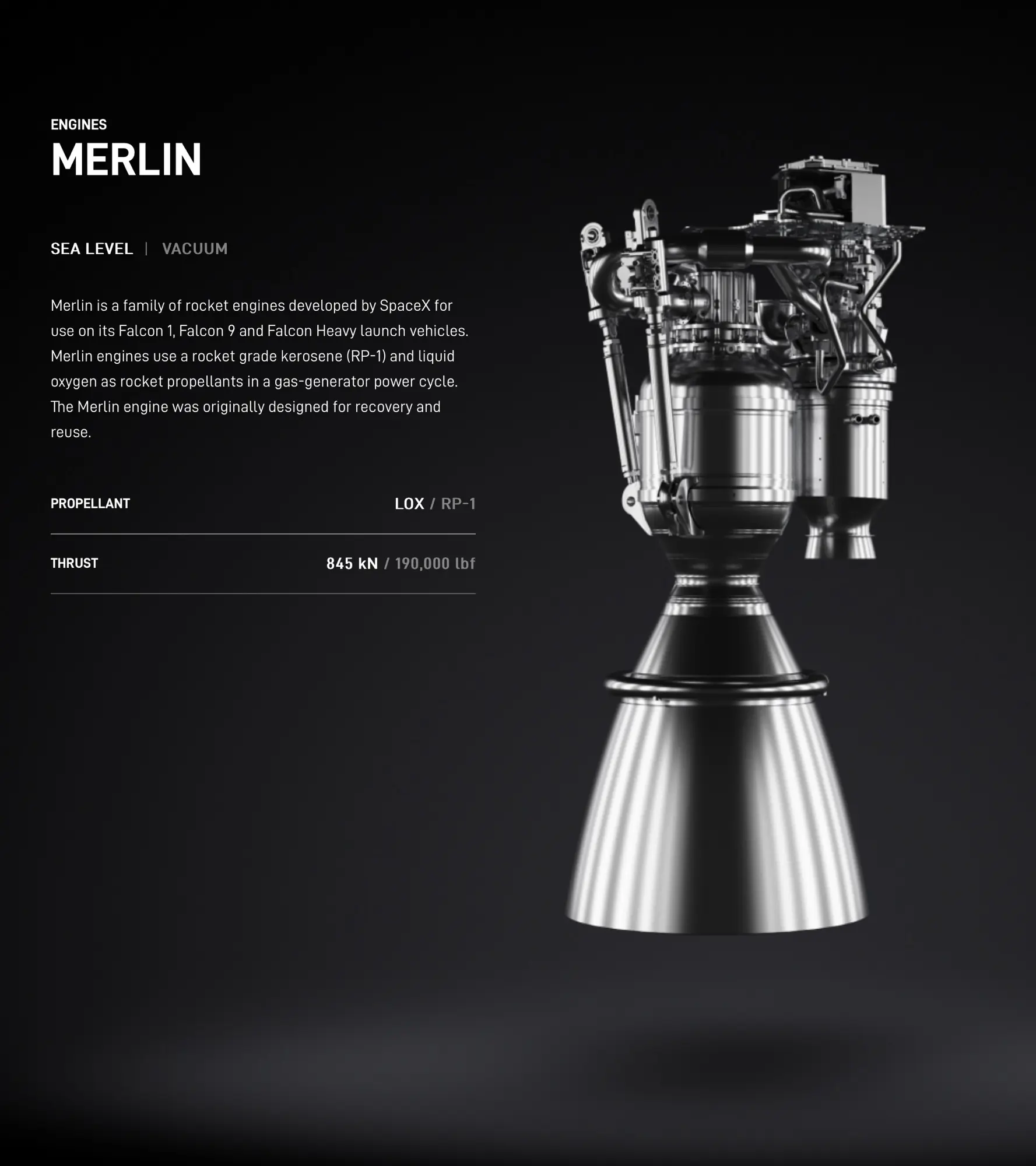

The Merlin 1D, in particular, has been a significant milestone in the engine’s development. With a thrust of 190,000 lbf at sea level and 205,500 lbf in vacuum, it offers a substantial increase in performance compared to its predecessors. The engine’s design has been optimized for increased reliability and easier manufacturability, with a focus on reducing the number of parts and simplifying the assembly process.
Specifications and Features
The Merlin 1D, the most advanced version of the engine, boasts impressive specifications:
- Thrust (sea level): 190,000 lbf (845 kN)
- Thrust (vacuum): 205,500 lbf (914 kN)
- Specific impulse (sea level): 282 seconds
- Specific impulse (vacuum): 311 seconds
- Weight: 1,030 lbs (470 kg)
- Fuel: RP-1 (highly refined kerosene)
- Oxidizer: Liquid oxygen (LOX)
The engine features a regeneratively cooled nozzle and combustion chamber, where the fuel is circulated around the hot components to keep them within operating temperatures. This design choice enhances the engine’s durability and reusability. Additionally, the Merlin 1D incorporates a throttle capability, allowing for thrust adjustment during flight, which is crucial for precise control during landing and reusability.
The Merlin engine’s design also prioritizes simplicity and robustness. The engine uses a single shaft turbopump to feed both the fuel and oxidizer into the combustion chamber, reducing complexity compared to designs that use separate turbopumps for each propellant. The engine’s combustion chamber is regeneratively cooled, meaning that the fuel is circulated through channels in the chamber wall to absorb heat before being injected into the chamber for combustion. This approach helps to maintain the structural integrity of the chamber and nozzle, even under the extreme temperatures and pressures of rocket engine operation.
Performance Metrics
The Merlin engine’s performance has been consistently impressive. With a thrust-to-weight ratio exceeding 150, it is one of the highest-performing liquid-fueled rocket engines in existence. This high thrust-to-weight ratio allows for increased payload capacity and improved launch vehicle performance. Moreover, the engine’s reliability has been demonstrated through numerous successful missions, with minimal failures reported.
The Merlin 1D’s specific impulse, a measure of the engine’s efficiency, is also notable. At sea level, the engine achieves a specific impulse of 282 seconds, which increases to 311 seconds in vacuum. These values are among the highest for kerosene-fueled rocket engines, highlighting the Merlin’s excellent propulsive efficiency.
Manufacturing Process
SpaceX’s vertical integration strategy plays a significant role in the Merlin engine’s success. By manufacturing most of the engine components in-house, SpaceX maintains strict quality control and can rapidly iterate on designs. This approach has allowed the company to continuously improve the Merlin engine while keeping costs low compared to traditional aerospace manufacturers.
The manufacturing process for the Merlin engine is highly automated, with extensive use of advanced machining techniques, such as computer numerical control (CNC) milling and 3D printing. SpaceX has developed proprietary alloys and materials specifically tailored for the engine’s requirements, further enhancing its performance and reliability.
In addition to the manufacturing process, SpaceX has implemented rigorous testing procedures for the Merlin engine. Each engine undergoes extensive ground testing, including full-duration hot-fire tests, to verify its performance and identify any potential issues before flight. This testing regime has been crucial in ensuring the engine’s reliability and has contributed to SpaceX’s impressive launch success rate.
Applications of the Merlin Engine
Falcon 9 and Falcon Heavy
The Merlin engine is the powerhouse behind SpaceX’s Falcon 9 and Falcon Heavy rockets. The Falcon 9, which has become the company’s workhorse launch vehicle, utilizes nine Merlin 1D engines in its first stage and a single Merlin Vacuum engine in its second stage. This configuration allows the Falcon 9 to deliver payloads of up to 50,000 lbs (22,800 kg) to low Earth orbit and 18,300 lbs (8,300 kg) to geostationary transfer orbit.
The Falcon Heavy, SpaceX’s heavy-lift launch vehicle, employs 27 Merlin 1D engines across its three first-stage cores, with a single Merlin Vacuum engine in its second stage. This massive rocket can deliver payloads of up to 140,700 lbs (63,800 kg) to low Earth orbit and 58,900 lbs (26,700 kg) to geostationary transfer orbit, making it one of the most powerful operational rockets in the world.
The Merlin engine’s modular design has been a key factor in the scalability of SpaceX’s launch vehicles. By clustering multiple engines together, SpaceX has been able to create more powerful rockets without the need to develop entirely new engine architectures. This approach has allowed for rapid development and iteration, as well as increased reliability through engine redundancy.
Reusability Milestones
The Merlin engine’s robust design and throttling capabilities have been instrumental in SpaceX’s achievements in rocket reusability. By precisely controlling the thrust during the landing phase, SpaceX has successfully landed and recovered the first stages of both Falcon 9 and Falcon Heavy rockets on numerous occasions. This unprecedented feat has the potential to dramatically reduce the cost of spaceflight, as reusing rocket components eliminates the need to build new ones for each launch.
The ability to throttle the Merlin engines down to 40% of their maximum thrust has been crucial for the controlled descent and landing of the Falcon 9’s first stage. This throttling capability allows the rocket to maintain a constant velocity as it approaches the landing site, counteracting the increasing atmospheric drag as the rocket descends. Without this precise thrust control, the rocket would either slow down too quickly and fall short of the landing site or maintain too much speed and risk damaging the landing platform.
SpaceX’s successful demonstrations of rocket reusability have been a game-changer in the space industry. By recovering and refurbishing first-stage boosters, the company has been able to significantly reduce the cost of launching payloads to orbit. This cost reduction has opened up new opportunities for commercial and scientific missions that were previously prohibitively expensive.
Crew and Cargo Missions
The Merlin-powered Falcon 9 has become a reliable vehicle for both crew and cargo missions to the International Space Station (ISS). SpaceX’s Dragon spacecraft, which can carry both cargo and astronauts, has successfully docked with the ISS multiple times, demonstrating the Merlin engine’s reliability and performance. These missions have been crucial in maintaining the continuous presence of astronauts on the ISS and ensuring a steady supply of scientific experiments and essential resources.
In 2020, SpaceX made history by launching the first crewed mission to the ISS from American soil since the retirement of the Space Shuttle in 2011. The Crew Dragon spacecraft, propelled by the Falcon 9 rocket, successfully transported NASA astronauts Robert Behnken and Douglas Hurley to the ISS, marking the beginning of a new era in American spaceflight. This achievement was made possible, in large part, by the reliability and performance of the Merlin engines.
Starlink Satellite Deployment
SpaceX’s ambitious Starlink project, which aims to provide global high-speed internet access through a constellation of thousands of small satellites, relies heavily on the Merlin engine’s capabilities. The Falcon 9 has been the primary launch vehicle for deploying Starlink satellites, with each mission carrying up to 60 satellites at a time. The Merlin engine’s reliability and the Falcon 9’s high launch cadence have been essential in the rapid deployment of the Starlink constellation.
The Starlink project represents a significant step forward in providing accessible, high-speed internet to underserved regions around the world. By leveraging the Merlin engine’s capabilities and the Falcon 9’s reusability, SpaceX has been able to deploy Starlink satellites at an unprecedented rate and cost. As the constellation grows, it has the potential to revolutionize global connectivity and bridge the digital divide.
Future Developments
As SpaceX continues to push the boundaries of spaceflight, the Merlin engine is expected to evolve further. The company’s focus on continuous improvement and innovation suggests that future versions of the Merlin may feature even higher thrust, improved efficiency, and enhanced reusability. Additionally, the lessons learned from the Merlin engine’s development are likely to influence the design of SpaceX’s next-generation Raptor engine, which will power the Starship spacecraft and Super Heavy booster.
The Raptor engine, which uses methane and liquid oxygen as propellants, represents a significant departure from the kerosene-fueled Merlin. However, many of the design principles and manufacturing techniques developed for the Merlin are expected to be applied to the Raptor. The experience gained from the Merlin’s development, particularly in areas such as regenerative cooling, throttling, and reusability, will be invaluable in the development of the Raptor.
As SpaceX works towards its long-term goal of enabling human colonization of Mars, the Merlin engine’s legacy will continue to shape the company’s approach to rocket engine design and development. The lessons learned and technologies developed through the Merlin program will form the foundation for the next generation of SpaceX’s rocket engines, ensuring that the company remains at the forefront of the space industry for years to come.
Summary
The SpaceX Merlin rocket engine has been a game-changer in the space industry, powering the company’s remarkable achievements in reusable rocketry and cost-effective spaceflight. Through continuous development, meticulous engineering, and a focus on simplicity and reliability, the Merlin engine has become a symbol of SpaceX’s innovative spirit. As the company continues to push the boundaries of space exploration, the Merlin engine’s legacy will undoubtedly endure, paving the way for a new era of accessible and sustainable spaceflight.
The impact of the Merlin engine extends far beyond SpaceX’s own missions. By demonstrating the feasibility and benefits of reusable rocket technology, SpaceX has challenged the traditional paradigms of the space industry and sparked a new wave of innovation and competition. As other companies and space agencies seek to emulate SpaceX’s success, the Merlin engine’s influence can be seen in the growing emphasis on reusability, efficiency, and cost-effectiveness across the industry.
