SpaceX, the pioneering private spaceflight company founded by Elon Musk, has been at the forefront of rocket engine technology with the development of the Raptor engine. This groundbreaking propulsion system powers the company’s ambitious Starship spacecraft and Super Heavy booster, which are designed to enable human missions to the Moon, Mars, and beyond. The Raptor engine represents a significant leap forward in rocket propulsion, featuring a full-flow staged combustion cycle and the use of methane as fuel.
The Raptor engine is core to SpaceX’s plans for deep space exploration and the establishment of a sustainable human presence on other celestial bodies. Its innovative design promises to unlock new possibilities for space travel, making it more efficient, cost-effective, and environmentally friendly compared to traditional rocket engines.
Design and Specifications
The Raptor engine is a full-flow staged combustion cycle engine, which allows for higher efficiency and performance compared to traditional rocket engines. It burns a mixture of liquid methane and liquid oxygen, producing a sea-level thrust of approximately 230 tons (510,000 lbf) per engine. The vacuum-optimized version of the Raptor, known as the Raptor Vacuum (RVac), is designed to operate in the vacuum of space and delivers a higher specific impulse of around 380 seconds (3,700 m/s).
One of the key advantages of the Raptor engine is its use of methane as a fuel. Methane is more easily stored than hydrogen and can be produced on Mars using local resources, making it an ideal choice for long-duration missions. Additionally, the full-flow staged combustion cycle allows for a more efficient use of propellants, resulting in higher performance and reduced engine mass.
The Raptor engine features a chamber pressure of 300 bar (4,350 psi), which is significantly higher than most other rocket engines. This high chamber pressure contributes to the engine’s impressive thrust-to-weight ratio, enabling it to generate more power while maintaining a relatively compact size. The engine’s design also incorporates advanced cooling techniques, such as regenerative cooling, to manage the extreme temperatures generated during operation.
SpaceX has leveraged cutting-edge manufacturing techniques in the development of the Raptor engine. Many components, including turbopumps and injectors, are produced using 3D printing technology. This approach allows for faster iteration and testing of design improvements, as well as reducing the overall manufacturing time and cost.
Development and Testing
The development of the Raptor engine began in the early 2010s, with SpaceX initially focusing on subscale prototypes to validate the design concepts. In 2016, the company shipped the first full-scale Raptor engine to its McGregor, Texas testing facility for ground tests. Since then, SpaceX has conducted numerous static fire tests, gradually increasing the engine’s performance and reliability.
SpaceX’s testing program for the Raptor engine has been rigorous and iterative. The company has subjected the engine to a wide range of operating conditions, simulating the various stages of a mission profile. These tests have allowed engineers to identify and address potential issues, refine the engine’s design, and optimize its performance.
In 2019, the Raptor engine powered the Starhopper test vehicle during a series of low-altitude flights, demonstrating its capabilities in a real-world setting. As the development of the Starship and Super Heavy vehicles progressed, SpaceX continued to refine the Raptor engine, introducing the improved Raptor 2 variant in 2021.

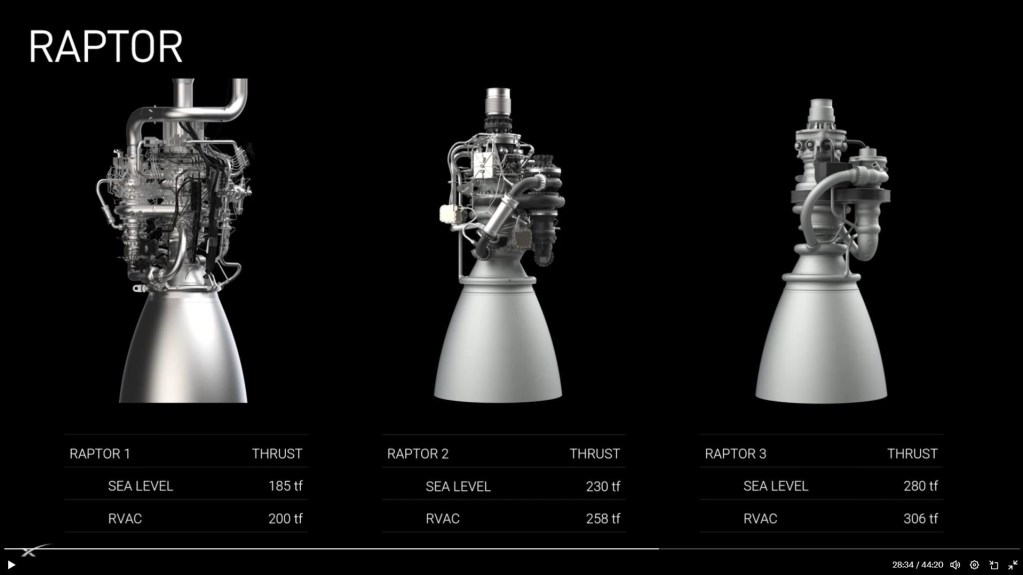

The Raptor 2 engine incorporates several design enhancements aimed at increasing thrust, improving efficiency, and streamlining manufacturing. These upgrades have enabled SpaceX to achieve higher performance while reducing production costs and time. The company has also invested in expanding its production capabilities, with the goal of mass-producing Raptor engines to support the ambitious launch cadence envisioned for the Starship program.
Integration with Starship and Super Heavy
The Raptor engine is an integral part of SpaceX’s Starship and Super Heavy vehicles. The Super Heavy booster, which serves as the first stage of the launch system, is powered by 33 Raptor engines. This massive cluster of engines will generate the immense thrust required to lift the Starship spacecraft and its payload off the launch pad and into orbit.
The Starship spacecraft itself is equipped with six Raptor engines – three optimized for sea-level operation and three vacuum-optimized Raptor Vacuum engines. This configuration allows Starship to efficiently navigate through the Earth’s atmosphere during ascent and descent, while also providing the necessary propulsion for orbital maneuvers and deep space missions.
SpaceX has conducted several high-altitude flight tests of Starship prototypes, demonstrating the vehicle’s ability to perform complex maneuvers and precise landings. These tests have provided valuable data on the performance of the Raptor engines in flight conditions, allowing engineers to further refine the engine’s design and control systems.
As SpaceX continues to develop and test the Starship and Super Heavy vehicles, the integration of the Raptor engines remains a critical focus. The company is working to ensure seamless communication between the engines and the vehicle’s avionics, as well as optimizing the propellant feed systems and structural interfaces.
Future Applications and Missions
The successful development of the Raptor engine opens up a wide range of possibilities for SpaceX and the future of spaceflight. The company has already secured contracts with NASA to develop a lunar lander variant of Starship as part of the Artemis program, which aims to return humans to the Moon by 2026. The Raptor engines will play a crucial role in powering Starship during its descent and ascent from the lunar surface.
Looking beyond the Moon, SpaceX has its sights set on Mars. The company’s long-term vision is to establish a self-sustaining city on the Red Planet, and the Raptor engine is a key enabler of this ambitious goal. The engine’s ability to utilize methane as a fuel, which can be produced using Martian resources, makes it particularly well-suited for long-duration missions and in-situ resource utilization.
In addition to crewed missions, the Raptor-powered Starship and Super Heavy vehicles have the potential to revolutionize the launch industry. The system’s fully reusable design and rapid turnaround capabilities could dramatically reduce the cost of accessing space, making it more affordable for a wide range of payloads, including satellites, space telescopes, and interplanetary probes.
SpaceX is also exploring the possibility of using Starship for point-to-point transportation on Earth. By leveraging the vehicle’s ability to perform suborbital flights, the company envisions a future where passengers could travel between distant cities in a matter of minutes. While this application is still in the conceptual stage, the Raptor engine’s performance and reliability will be key to making this vision a reality.
Challenges and Future Development
Despite the significant progress made in the development of the Raptor engine, SpaceX still faces several challenges as it works to refine and optimize the design. One of the primary challenges is ensuring the engine’s reliability and durability over multiple flights and long-duration missions. The company is continuously testing and analyzing the engine’s components to identify potential failure points and implement necessary improvements.
Another challenge is the scaling up of Raptor engine production to meet the demands of the Starship program. SpaceX has invested heavily in manufacturing infrastructure and automation to streamline the production process, but ramping up to the desired production rate while maintaining quality control remains a complex task.
As SpaceX gains more experience with the Raptor engine through ground tests and flight operations, the company will continue to iterate on the design. Future versions of the engine may incorporate advanced materials, improved cooling techniques, and optimized propellant mixtures to further enhance performance and efficiency.
In parallel with the development of the Raptor engine, SpaceX is also working on refining the Starship and Super Heavy vehicles. This includes optimizing the vehicles’ structures, thermal protection systems, and avionics to ensure they can withstand the rigors of spaceflight and perform their intended missions.
Collaboration and Industry Impact
The development of the Raptor engine and the Starship program has not occurred in isolation. SpaceX has collaborated with a wide range of partners, including NASA, the U.S. military, and commercial customers, to advance the technology and explore potential applications.
SpaceX’s partnership with NASA has been particularly significant, with the space agency providing funding, expertise, and facilities to support the development of Starship as a lunar lander. This collaboration has helped to validate the Raptor engine’s capabilities and demonstrate its potential for deep space missions.
The success of the Raptor engine and the progress made by SpaceX have also had a broader impact on the space industry. The company’s achievements have inspired other private companies and national space agencies to pursue their own ambitious goals, driving innovation and competition in the sector.
Moreover, the Raptor engine’s use of methane as a fuel has sparked renewed interest in this propellant among other rocket engine developers. The advantages of methane, including its high specific impulse, clean-burning properties, and potential for in-situ resource utilization, have led to the development of other methane-fueled engines, such as Blue Origin’s BE-4 and Rocket Lab’s Archimedes.
Summary
The SpaceX Raptor engine represents a significant milestone in the evolution of rocket propulsion technology. Its innovative design, featuring a full-flow staged combustion cycle and methane fuel, promises to unlock new possibilities for deep space exploration and the colonization of other worlds.
As SpaceX continues to refine and improve the Raptor engine, it is clear that this groundbreaking propulsion system will play a crucial role in shaping the future of human spaceflight. The engine’s impressive performance, reusability, and versatility make it a key enabler for the company’s ambitious plans to send humans to the Moon, Mars, and beyond.
The development of the Raptor engine also serves as a testament to SpaceX’s commitment to pushing the boundaries of space technology. By embracing innovative design approaches, advanced manufacturing techniques, and rigorous testing, the company has demonstrated its ability to tackle complex engineering challenges and deliver cutting-edge solutions.
As the space industry continues to evolve and new opportunities for exploration and commercialization emerge, the Raptor engine will undoubtedly serve as a foundation for future advancements. Its success will not only propel SpaceX’s missions but also inspire other companies and organizations to pursue their own groundbreaking endeavors in the realm of space travel.
In the years to come, the Raptor engine’s impact will be felt far beyond the launches of Starship and Super Heavy. It will be remembered as a turning point in the history of spaceflight, a technological marvel that opened the door to a new era of human exploration and expansion into the cosmos.
