The Restrictive Nature of Payload Fairings

The payload fairing, the protective nose cone that encapsulates satellites during launch, has long posed a significant constraint on spacecraft design. Shaped like a cone for aerodynamic considerations, the fairing’s size and shape place strict limitations on the dimensions, and mass, of payloads that can be launched into orbit. This restrictive effect has been metaphorically referred to as the “tyranny of the fairing” – payloads must be meticulously designed to fit within the confines of these predefined volumes.

Fairings come in various diameters and lengths to accommodate different classes of satellites, but they are not infinitely customizable. Spacecraft engineers must work within the allowable envelope, often having to make compromises on instrument size, solar panel configuration, and antenna placement. The fairing’s impact is felt across the entire spacecraft development process, from initial concept designs to final integration and testing.

Pushing the Boundaries of Fairing Sizes

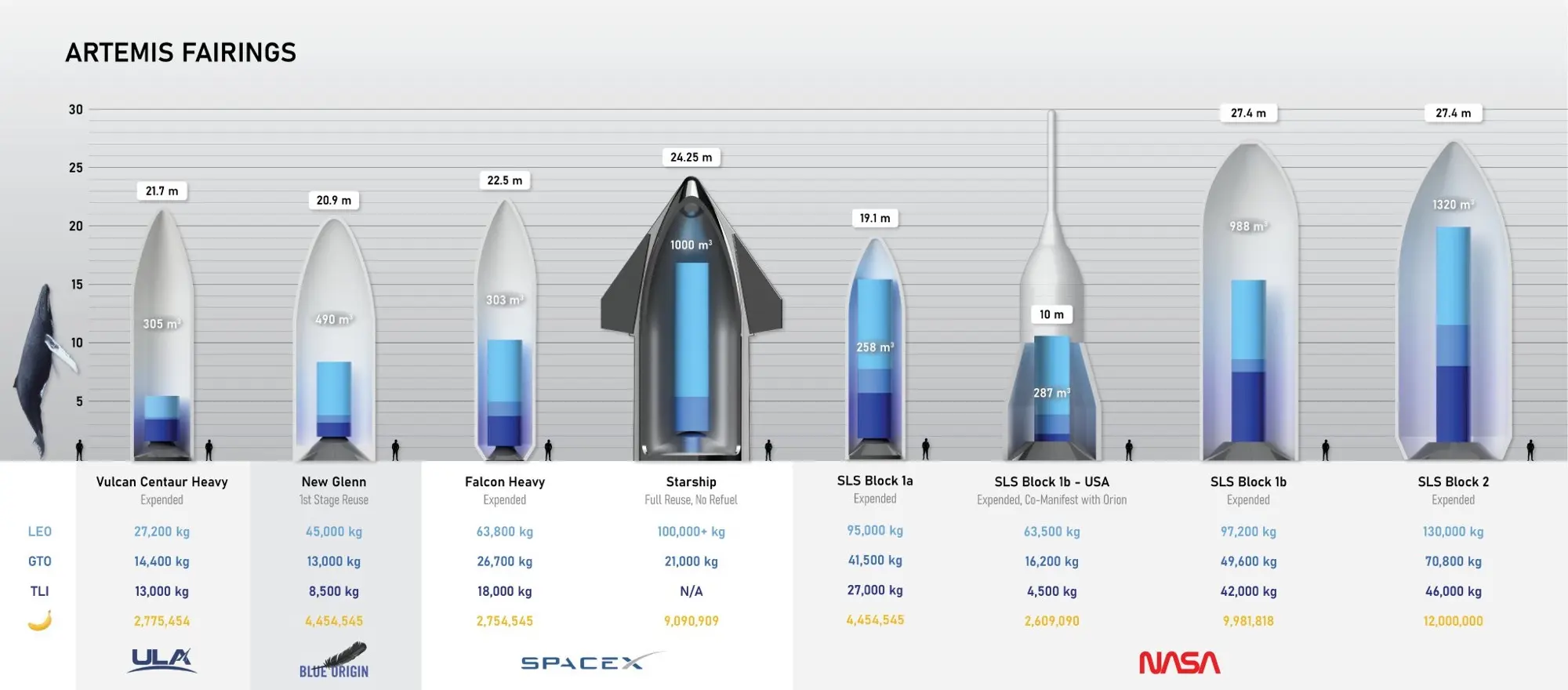

To address the limitations imposed by fairings, rocket manufacturers have gradually increased the size of their payload accommodations over the years. The industry has progressed from modest 3-meter diameter fairings to massive 5-meter and even 7-meter fairings on vehicles like SpaceX’s Falcon Heavy and Blue Origin’s New Glenn. These expanded envelopes have enabled the launch of larger, more capable satellites and space probes.

However, there are practical limits to fairing size. Larger fairings require stronger and heavier rockets to lift them, driving up launch costs. The fairings themselves become more expensive and challenging to manufacture as they scale up in size. Transportation and ground handling also become more complex with oversized fairings. At a certain point, the gains in payload volume are outweighed by the added complexity and expense.

On-Orbit Assembly: A Paradigm Shift

To truly break free from the tyranny of the fairing, the space industry is increasingly considering on-orbit assembly and manufacturing techniques. Rather than trying to fit a complete spacecraft into a single launch, the components are sent up separately and assembled in space. This approach allows for the construction of structures that are much larger than what could be accommodated by even the biggest fairings.

On-orbit assembly has already been demonstrated on a large scale with the International Space Station, which was built over the course of dozens of launches and spacewalks. Robotic assembly technologies aim to automate the process and enable even more ambitious construction projects in orbit. By assembling spacecraft in their operational environment, engineers can design satellites that are optimized for performance rather than constrained by launch vehicle limitations.

Unfolding Origami in Space

Another approach to circumventing fairing constraints is the use of deployable structures and mechanisms. These designs allow satellites to be packaged in a compact configuration for launch, then unfold or expand once they reach orbit. Deployable solar arrays, antennas, and booms are common examples of this technique.

More exotic concepts, such as origami-inspired folding patterns, are also being explored for space applications. Researchers are developing thin-film solar arrays that can be folded into tight packages for launch, then unfurled to cover vast areas in space. Similarly, large reflectors and sunshields can be collapsed for launch, then deployed to their full size once on orbit. These innovative packaging schemes allow satellites to maximize their capabilities while still fitting within the volume constraints of the fairing.

Reusable Fairings: Reducing Costs and Enabling Flexibility

In addition to the size constraints, fairings also represent a significant expense in the launch process. As one-time-use items, fairings are typically jettisoned during ascent and are not recovered. However, companies like SpaceX are now routinely recovering and reusing their payload fairings.

Reusable fairings offer several benefits beyond simple cost savings. By eliminating the need to manufacture new fairings for each launch, rocket companies can potentially increase their launch frequency and responsiveness. Reusability also reduces the costs associated with fairings customized to suit specific payloads, as the same fairing can be used across multiple missions.

The Future of Payload Fairings

As the space industry continues to evolve, so too will payload fairings. Additive manufacturing techniques may enable the production of more complex and customized fairing shapes. Advanced materials, such as composites and nanomaterials, could lead to lighter and stronger fairing structures. Active flow control technologies might be employed to reduce aerodynamic loads on the fairing during ascent, allowing for thinner and less massive designs.

Ultimately, the tyranny of the fairing will be overcome through a combination of larger rockets, on-orbit assembly, deployable structures, and reusable hardware. By breaking free from the constraints of the past, the space industry will be able to realize new capabilities and push the boundaries of what is possible in space. The satellites of tomorrow will no longer be limited by the size of the ride that carries them to orbit, but only by the ingenuity and ambition of their designers.
