NASA’s ambitious Artemis program, which aims to return humans to the Moon and eventually send them to Mars, has encountered a significant hurdle with the Orion spacecraft’s heat shield. Recent reports from NASA’s Office of Inspector General (OIG) have highlighted concerns about the heat shield’s performance during the Artemis 1 mission, raising questions about crew safety in future missions.
Unexpected Heat Shield Erosion
During the uncrewed Artemis 1 mission in late 2022, the Orion spacecraft completed a successful trip around the Moon and back to Earth. However, post-flight inspections revealed that the heat shield experienced more erosion than anticipated during the spacecraft’s reentry into Earth’s atmosphere.

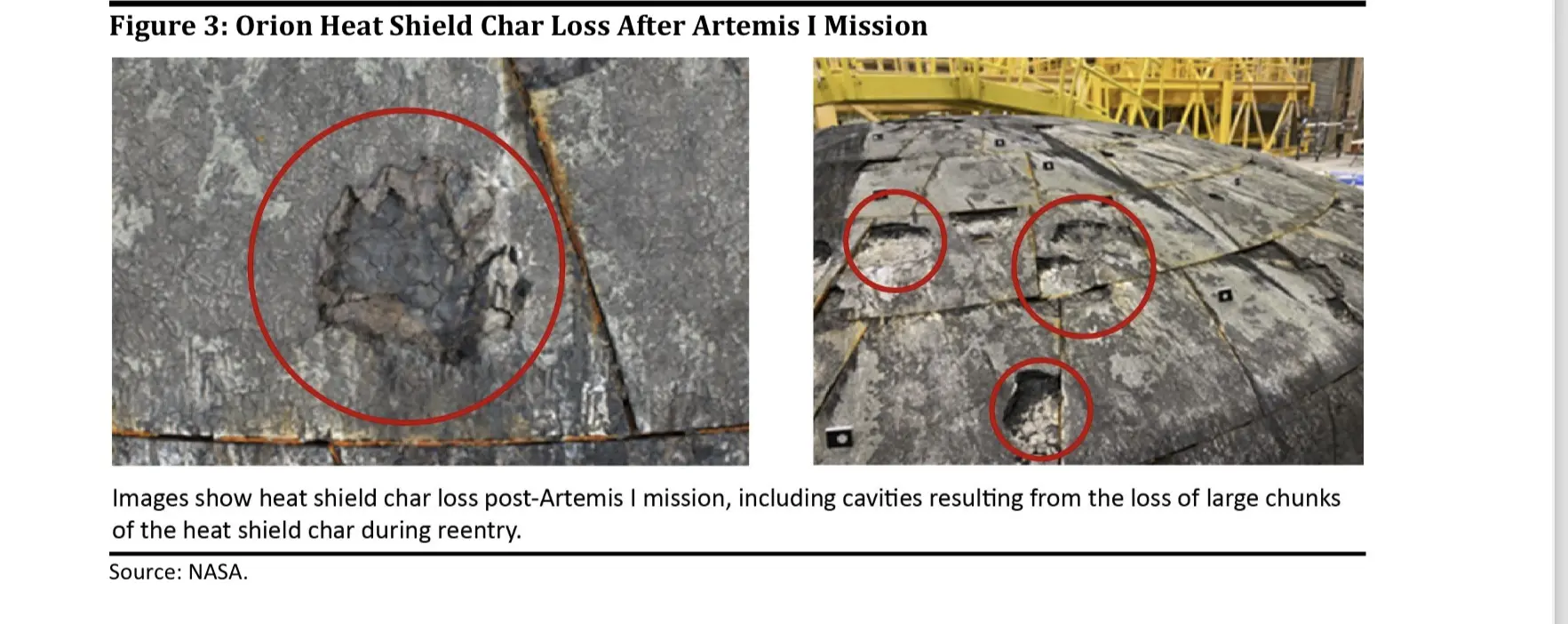

According to the OIG report, NASA found more than 100 locations on the heat shield where the thermal protective material, known as Avcoat, had “chipped away unexpectedly” during reentry. Images included in the report showed pockmarked portions of the heat shield that had not been previously disclosed by the agency.
The report stated that the Avcoat “wore away differently than NASA engineers predicted, cracking and breaking off the spacecraft in fragments that created a trail of debris rather than melting away as designed”. This unexpected behavior of the heat shield material raises concerns about its ability to sufficiently protect the capsule’s systems and crew from the extreme heat of reentry on future missions.
The full OIG report can be accessed at: https://oig.nasa.gov/docs/IG-24-015.pdf
Ongoing Investigation and Mitigation Efforts
NASA is currently conducting an extensive investigation to determine the root cause of the heat shield erosion issue. As of April 2024, the agency still does not fully understand what led to the unexpected charring and loss of material.
Amit Kshatriya, deputy associate administrator for NASA’s Moon to Mars Program, acknowledged the ongoing investigation, stating, “We did see the off-nominal recession of some char that came off the heat shield, which we were not expecting”. He emphasized that while charring was anticipated due to the ablative nature of the heat shield material, the manner in which pieces of the char were liberated from the vehicle was unexpected.
To mitigate the issue, NASA is considering modifying the heat shield or altering the reentry trajectory of the Orion spacecraft for the crewed Artemis 2 mission. Engineers are examining various possible trajectories to determine how the reentry profile affects the heat shield’s performance. Ground testing is also being conducted to recreate the char loss phenomenon and better understand the material’s response to the flight environment.
NASA expects to identify the root cause of the heat shield erosion by late spring of 2024. However, without a definitive answer, the agency cannot rule out the possibility of needing to make changes to the heat shield already installed on the Orion spacecraft for Artemis 2.
Impact on Artemis Program Timeline
The heat shield issue, along with other technical challenges such as anomalies in the spacecraft’s electrical system and separation bolts, has contributed to delays in the Artemis program’s timeline.
NASA announced in February 2024 that the crewed Artemis 2 mission, originally planned for late 2024, would be postponed until at least September 2025. Similarly, the Artemis 3 mission, which aims to land astronauts on the lunar surface, has been pushed back from late 2025 to September 2026.
NASA Administrator Bill Nelson emphasized that safety is the top priority, stating, “We will launch when we’re ready”. The agency is committed to addressing the technical issues and ensuring the safety of the crew before proceeding with the crewed missions.
Summary
The unexpected erosion of the Orion spacecraft’s heat shield during the Artemis 1 mission has presented a significant challenge for NASA’s Artemis program. The ongoing investigation into the root cause of the issue and efforts to mitigate the problem have contributed to delays in the program’s timeline.
As NASA works to resolve the heat shield concerns and other technical issues, the agency remains committed to ensuring the safety of the crew and the success of future Artemis missions. The resolution of these challenges will be crucial for NASA to achieve its goal of returning humans to the Moon and paving the way for eventual missions to Mars.
Despite the setbacks, NASA’s Artemis program represents a new era of space exploration and scientific discovery. The lessons learned from the Artemis 1 mission and the ongoing efforts to overcome technical hurdles will ultimately contribute to the development of more robust and reliable spacecraft for future crewed missions beyond Earth’s orbit.
